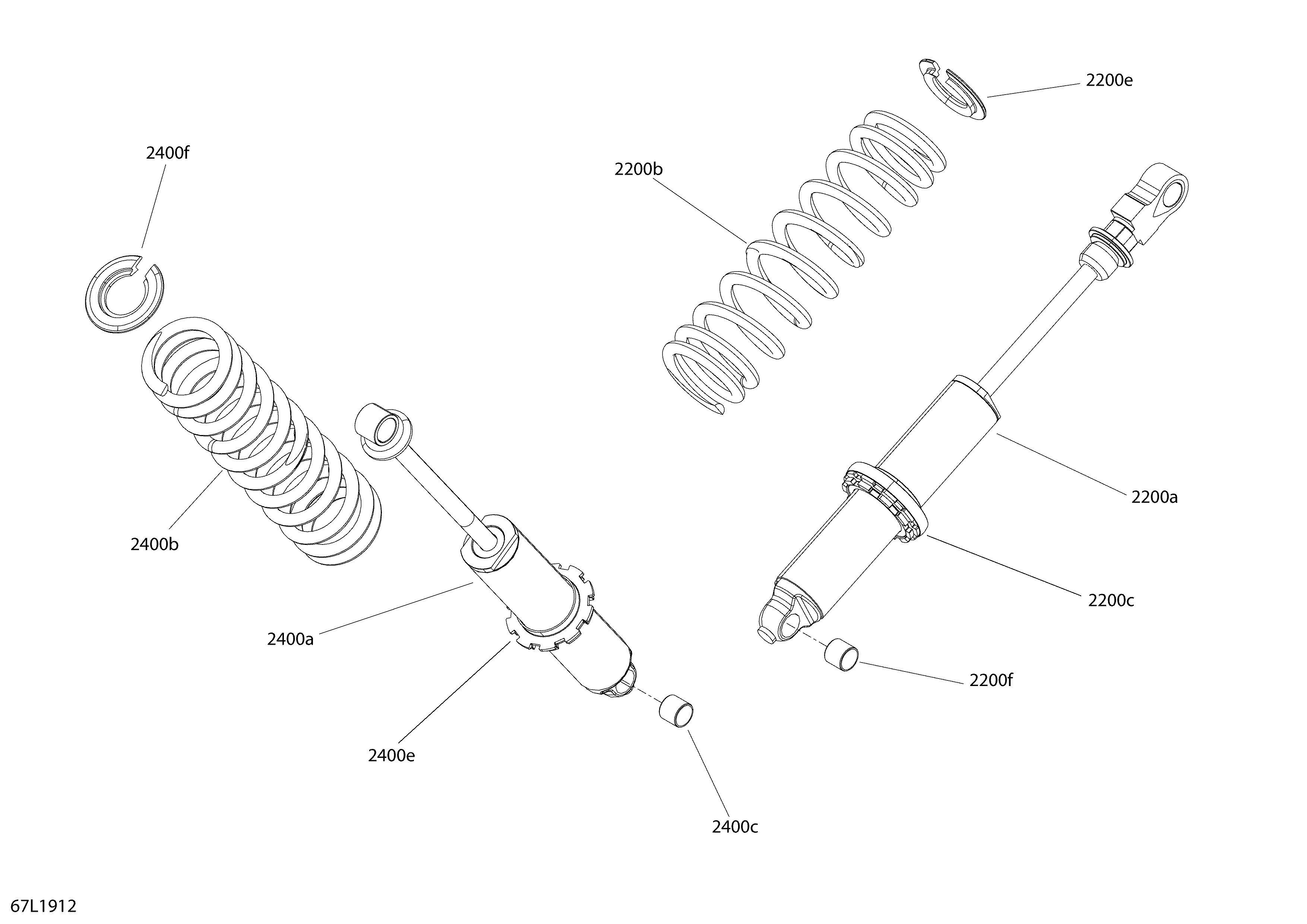

08- Rear Shocks - LTD - STD для BRP Lynx 003 - Commander 900 ACE - 2019
-
№АртикулНазвание
-
2200a503194528 ShockShock
-
2200b503195219 Spring 350 MM-50 N/MMSpring 350 MM-50 N/MM
-
2200c230078 Adjusting CamAdjusting Cam
-
2200d503195341 Spacer. not shownSpacer. not shown
-
2200e503194922 Spring StopperSpring Stopper
-
2200f503195134 Glide BearingGlide Bearing
-
2400a503194831 ShockShock
-
2400b503193292 Spring 220 MM-30 N/MMSpring 220 MM-30 N/MM
-
2400c503195134 Glide BearingGlide Bearing
-
2400d503195341 Spacer. not shownSpacer. not shown
-
2400e230078 Adjusting CamAdjusting Cam
-
2400f503194922 Spring StopperSpring Stopper
-
2400g5346754 Shock protector. not shownShock protector. not shown
