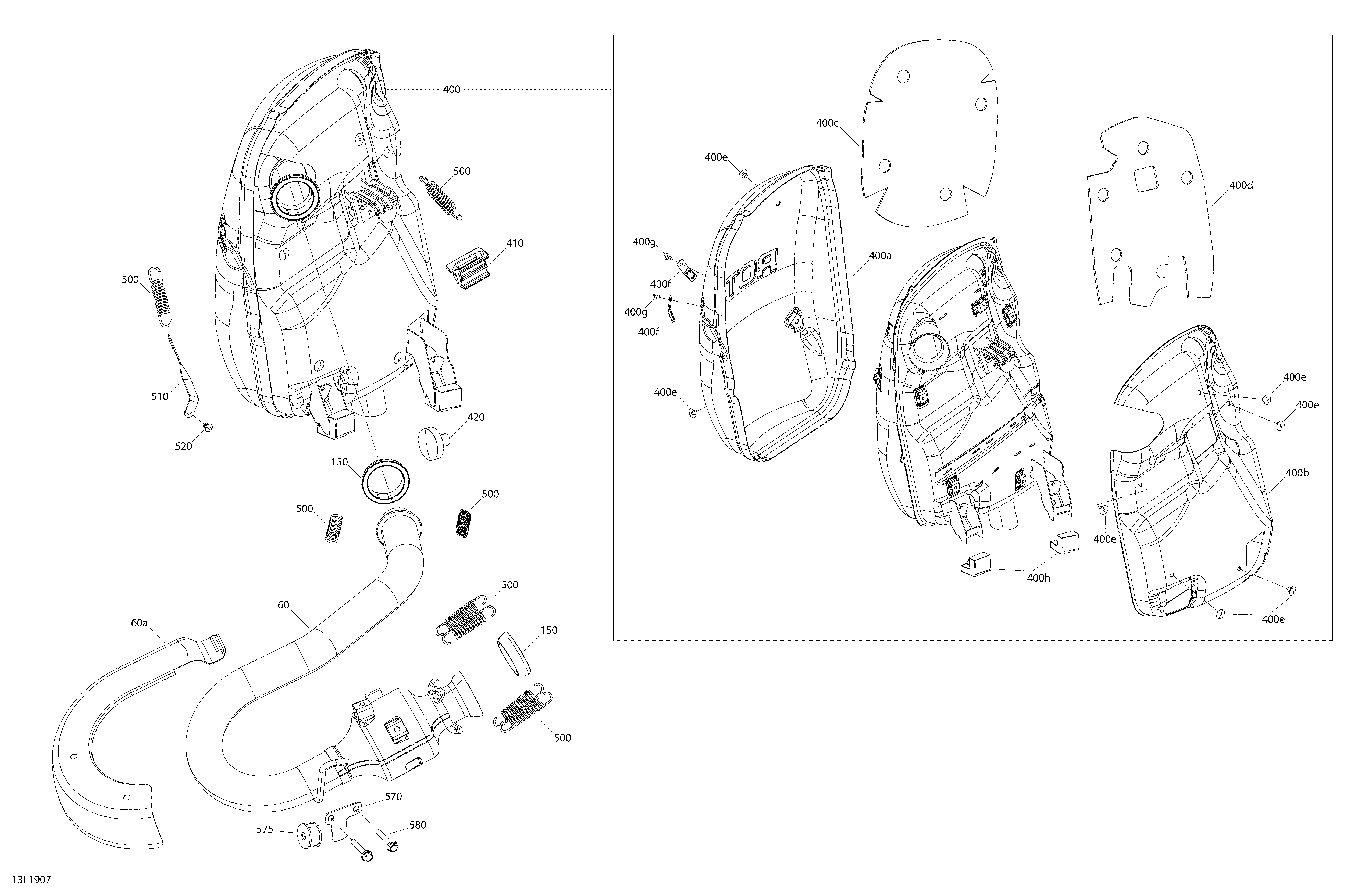

01- Exhaust - 900 ACE для BRP Lynx 003 - Commander 900 ACE - 2019
-
№АртикулНазвание
-
60514055424 Tube. Includes 60 to 60cTube. Includes 60 to 60c
-
60a514054397 Exhaust DeflectorExhaust Deflector
-
60b293150173 Rivet 6,4 mm. Not ShownRivet 6,4 mm. Not Shown
-
60c293650036 Tridon Clamp. Not ShownTridon Clamp. Not Shown
-
150707601033 Exhaust GasketExhaust Gasket
-
400514055326 Muffler Ass'y. Includes 400 to 400hMuffler Ass'y. Includes 400 to 400h
-
400a514055325 RH Heat ShieldRH Heat Shield
-
400b514055128 LH Heat ShieldLH Heat Shield
-
400c514054769 RH Insulating WoolRH Insulating Wool
-
400d514054881 LH Insulating WoolLH Insulating Wool
-
400e390910000 Pop Rivet 3/16”Pop Rivet 3/16”
-
400f514054522 Spring BracketSpring Bracket
-
400g390909200 Avex RivetAvex Rivet
-
400h514054529 Lower StopperLower Stopper
-
410514054346 StopperStopper
-
420514053654 Rubber BumperRubber Bumper
-
500415107100 SpringSpring
-
510514055317 Spring BracketSpring Bracket
-
520390909100 Avex RivetAvex Rivet
-
570514054939 SupportSupport
-
575707600702 Anti-Vibration RubberAnti-Vibration Rubber
-
580207563544 Screw H Flange S.Grip M6 X 35Screw H Flange S.Grip M6 X 35
