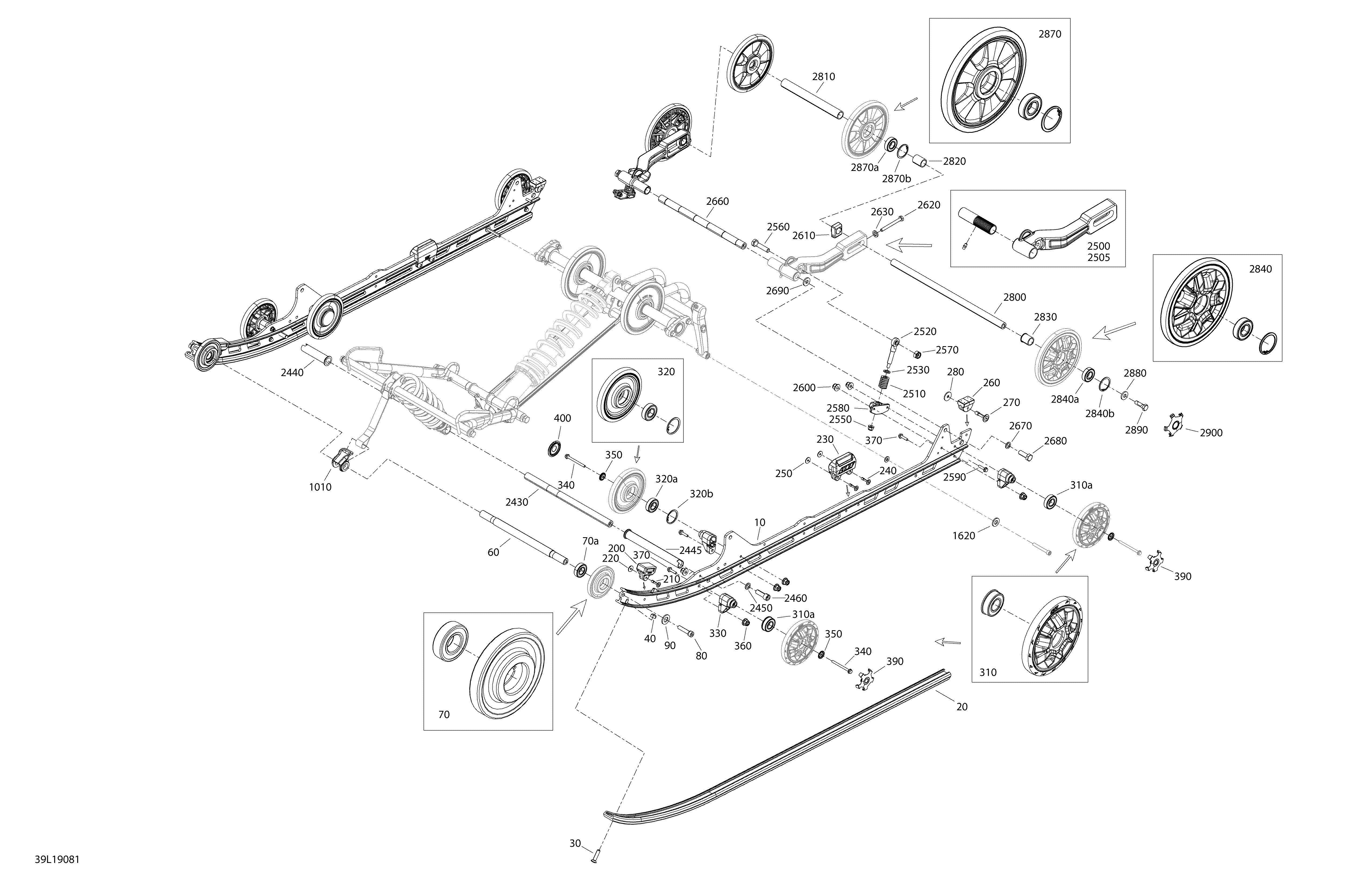

08- Rear Suspensions - 600 E-TEC - Lower Section для BRP Lynx 001 - Commander 600 E-TEC - 2019
-
№АртикулНазвание
-
10503194410 RunnerRunner
-
20503195026 Slider ShoeSlider Shoe
-
30208562531 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
40232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
60503194790 Front Wheel ShaftFront Wheel Shaft
-
70503192611 Black Wheel Ass'y, 100 mm. Includes 70 to 70aBlack Wheel Ass'y, 100 mm. Includes 70 to 70a
-
70a503190396 Ball BearingBall Bearing
-
80205504544 Socket ScrewSocket Screw
-
90234001410 Flat Washer 10 mmFlat Washer 10 mm
-
200503193504 Rubber StopperRubber Stopper
-
210293150224 Rivet Pop 3/16Rivet Pop 3/16
-
220503191273 WasherWasher
-
230503195028 Rubber StopperRubber Stopper
-
240293150224 Rivet Pop 3/16Rivet Pop 3/16
-
250503191273 WasherWasher
-
260503191291 Rubber StopperRubber Stopper
-
270293150224 Rivet Pop 3/16Rivet Pop 3/16
-
280503191273 WasherWasher
-
310503193734 Wheel-141mm. Includes 310 to 310aWheel-141mm. Includes 310 to 310a
-
310a503190396 Ball BearingBall Bearing
-
320503195118 Black, Wheel Ass'y 141 MM. Includes 320 to 320bBlack, Wheel Ass'y 141 MM. Includes 320 to 320b
-
320a503190396 Ball BearingBall Bearing
-
320b415129371 Retaining RingRetaining Ring
-
330503193894 Casted SupportCasted Support
-
340207667056 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
350503191820 Wheel Cup M6Wheel Cup M6
-
360233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
370207662556 Hex. Flange Screw M6 X 25Hex. Flange Screw M6 X 25
-
390503195345 Black, Wheel CapBlack, Wheel Cap
-
400503192771 Black, Wheel CapBlack, Wheel Cap
-
1010503194867 Holder, Limiter StrapHolder, Limiter Strap
-
1620503192494 WasherWasher
-
2430503195279 Center Shock ShaftCenter Shock Shaft
-
2440503195044 SpacerSpacer
-
2445503195045 SpacerSpacer
-
2450503189276 WasherWasher
-
2460205523554 Socket Head Screw M12 X 35Socket Head Screw M12 X 35
-
2500503195022 LH Rail Pivot Ass'yLH Rail Pivot Ass'y
-
2505503195023 RH Rail Pivot Ass'yRH Rail Pivot Ass'y
-
2510503194971 Pivot SpringPivot Spring
-
2520503194763 Ball Joint LinkBall Joint Link
-
2530503192491 WasherWasher
-
2550233281464 Elastic Flange Nut M8Elastic Flange Nut M8
-
2560207683544 Hex. Flanged Screw M8 X 35Hex. Flanged Screw M8 X 35
-
2570232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
2580503195105 Extension Spring SupportExtension Spring Support
-
2590207662556 Hex. Flange Screw M6 X 25Hex. Flange Screw M6 X 25
-
2600233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
2610503195064 TensionerTensioner
-
2620250000983 Hex. Screw Cap With Nylon PatchHex. Screw Cap With Nylon Patch
-
2630250200111 WasherWasher
-
2660503194641 Lower ShaftLower Shaft
-
2670503192491 WasherWasher
-
2680250000537 Hex. Cap Screw M12 X 35Hex. Cap Screw M12 X 35
-
2690250200086 Flat WasherFlat Washer
-
2800503191408 Rear AxleRear Axle
-
2810503193051 SpacerSpacer
-
2820503194648 SpacerSpacer
-
2830503194647 SpacerSpacer
-
2840503195119 Wheel Ass'y 180 MM. Includes 2840 to 2840bWheel Ass'y 180 MM. Includes 2840 to 2840b
-
2840a503190396 Ball BearingBall Bearing
-
2840b415129371 Retaining RingRetaining Ring
-
2870503194050 Black - Wheel Ass'y 180 mm. Includes 2870 to 2870bBlack - Wheel Ass'y 180 mm. Includes 2870 to 2870b
-
2870a503190396 Ball BearingBall Bearing
-
2870b415129371 Retaining RingRetaining Ring
-
2880503190439 WasherWasher
-
2890250000817 Hex Screw With Nilon Patch, M10 X 35Hex Screw With Nilon Patch, M10 X 35
-
2900503195349 White, Wheel CapWhite, Wheel Cap
