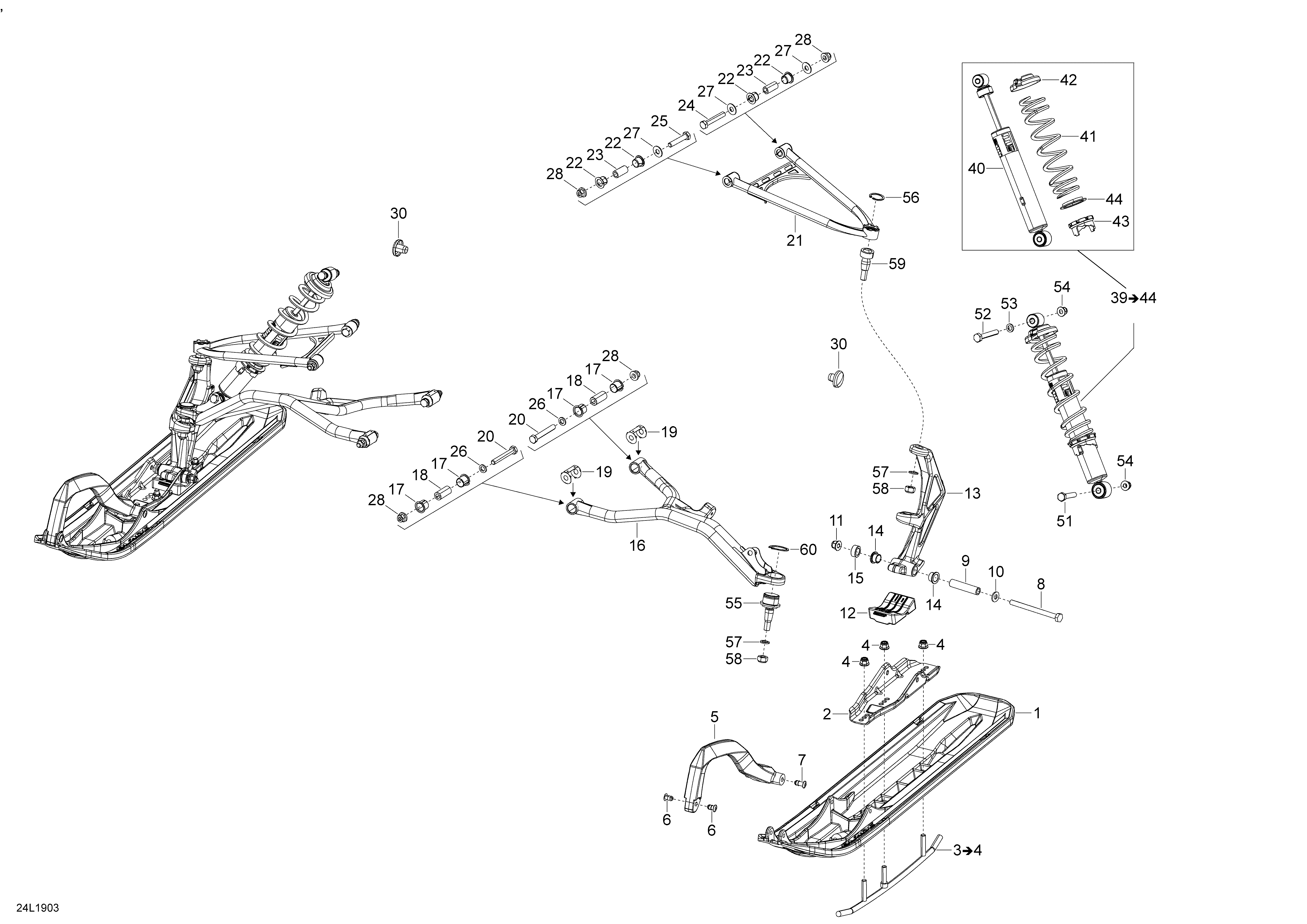

07- Front Suspension And Ski - Commander - 600 E-TEC для BRP Lynx 001 - Commander 600 E-TEC - 2019
-
№АртикулНазвание
-
1505074262 Black, Ski Blade XcBlack, Ski Blade Xc
-
3860200959 Ski Runner Blade 3 Carb.Ski Runner Blade 3 Carb.
-
4233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
5505072976 Black, HandleBlack, Handle
-
6505071812 Retainer 17mm longRetainer 17mm long
-
7505072133 Retainer 23mm LongRetainer 23mm Long
-
8250000703 Hex. Screw M10 X 130Hex. Screw M10 X 130
-
9506133300 SpacerSpacer
-
10503192496 WasherWasher
-
11233201464 Hex. Elast. Flanged Nut M10 x 1.5Hex. Elast. Flanged Nut M10 x 1.5
-
12505072594 Ski StopperSki Stopper
-
13505073443 LH Ski LegLH Ski Leg
-
13505073444 RH Ski LegRH Ski Leg
-
14505072690 Leg BushingLeg Bushing
-
15505072807 SpacerSpacer
-
16505073925 RH Arm-lowerRH Arm-lower
-
16505073924 LH Arm-lowerLH Arm-lower
-
17505073330 CushionCushion
-
18505072209 BushingBushing
-
19505072634 Wear PlateWear Plate
-
20250001024 Screw Hex. M10 X 70Screw Hex. M10 X 70
-
21505073985 LH Arm-upper W Sway BarLH Arm-upper W Sway Bar
-
21505073986 RH Arm-upper W Sway BarRH Arm-upper W Sway Bar
-
22505073329 Swivel BushingSwivel Bushing
-
23505072143 BushingBushing
-
24250000290 Screw Hex. M10 X 1.25 X 60Screw Hex. M10 X 1.25 X 60
-
25250000289 Screw Hex. M10 X 1.25 X 50Screw Hex. M10 X 1.25 X 50
-
26503189564 WasherWasher
-
27505072392 WasherWasher
-
28250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
29505072444 StabilisatorStabilisator
-
30572091300 CapCap
-
31505072445 BushingBushing
-
32505074294 Stabilisator LeverStabilisator Lever
-
33207663046 Flanged Hex. Screw M6 X 30Flanged Hex. Screw M6 X 30
-
35505074123 Double Ball Joint LinkDouble Ball Joint Link
-
40505073342 Front Shock (EUR)Front Shock (EUR)
-
41503192286 Full Moon Spring 300mm-14 N/MMFull Moon Spring 300mm-14 N/MM
-
42706200881 Spring StopperSpring Stopper
-
43505073625 Adjustment CamAdjustment Cam
-
44503191872 Spring GuideSpring Guide
-
51207005544 Hex. Screw M10 X 55Hex. Screw M10 X 55
-
52207006544 Hex. Screw M10 X 1.5 X 65Hex. Screw M10 X 1.5 X 65
-
53503189564 WasherWasher
-
54233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
55505073636 Ball JointBall Joint
-
56293370070 CirclipCirclip
-
57234021410 Flat Washer 12 mmFlat Washer 12 mm
-
58250100089 Hex. Elastic Hex. Nut M12Hex. Elastic Hex. Nut M12
-
59505072913 Upper Ball JointUpper Ball Joint
-
60293370035 CirclipCirclip
-
80505072448 O-Ring. Not ShownO-Ring. Not Shown
