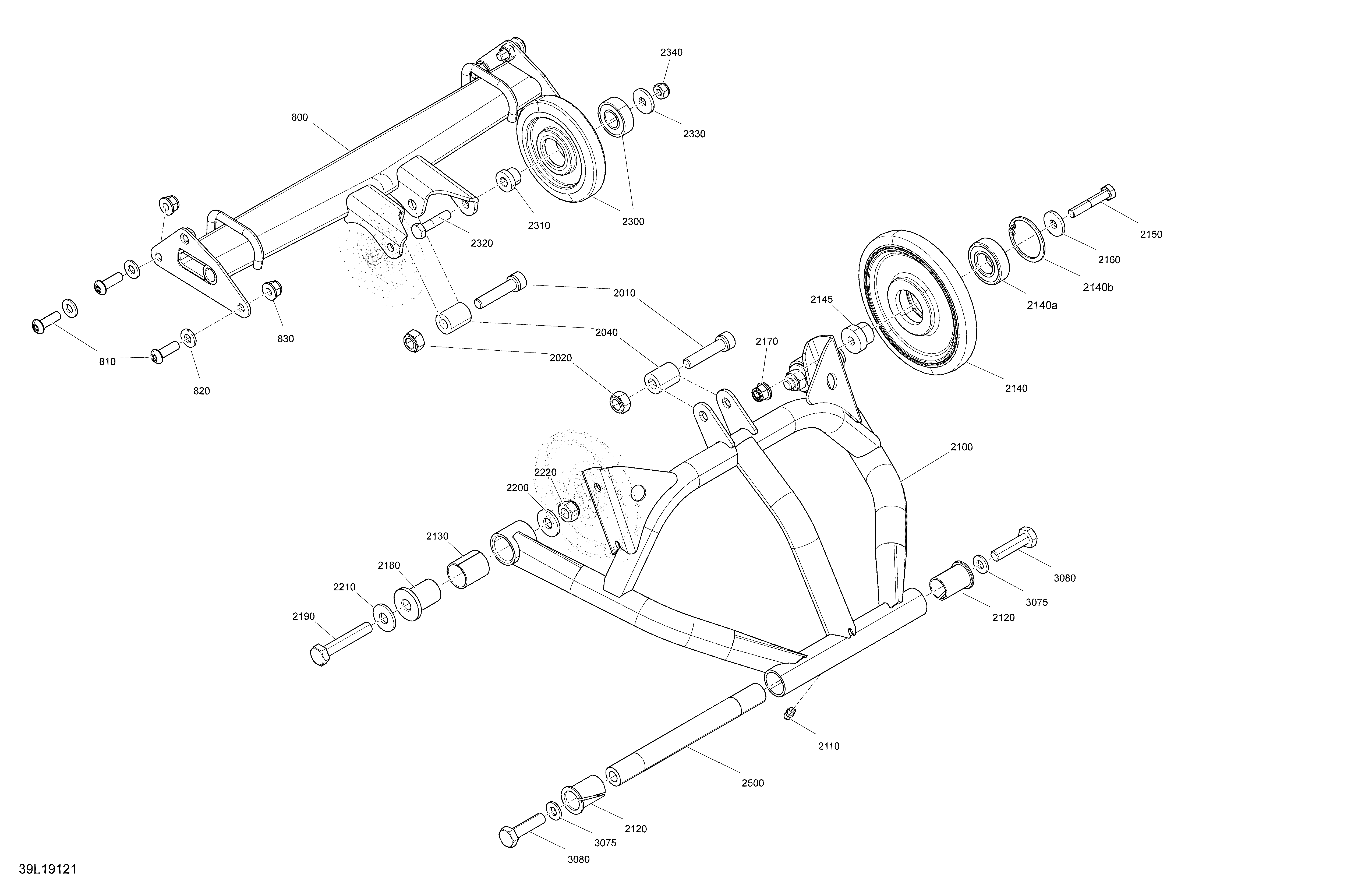

08- Rear Suspension Shocks BoonDocker - 850 E-TEC Upper Parts для BRP Lynx 002 - BoonDocker RE 850 E-TEC - 2019
-
№АртикулНазвание
-
800503193623 Middle BeamMiddle Beam
-
810250000757 Screw-Torx Button Head M8 X 25 S.GrScrew-Torx Button Head M8 X 25 S.Gr
-
820503192494 WasherWasher
-
830233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
201040134 Screw Socket HD.DIN 912Screw Socket HD.DIN 912
-
2020232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
20405446652 BushingBushing
-
2100503193571 Rear ArmRear Arm
-
2110408200700 Grease FittingGrease Fitting
-
2120503191640 CushionCushion
-
2130503191554 BushingBushing
-
2140503193852 Idler Wheel. Includes 2140 to 2140bIdler Wheel. Includes 2140 to 2140b
-
2140a503190396 Ball BearingBall Bearing
-
2140b415129371 Retaining RingRetaining Ring
-
2145605454461 SleeveSleeve
-
2150207084544 Hex. Screw M8 X 45Hex. Screw M8 X 45
-
216020077 M8 WasherM8 Washer
-
2170233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
2180503194580 Upper Axle SleeveUpper Axle Sleeve
-
2190250000696 Hexagonal ScrewHexagonal Screw
-
2200503191926 WasherWasher
-
2210503191926 WasherWasher
-
2220233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
2300572043500 Idler WheelIdler Wheel
-
2310503193330 SleeveSleeve
-
2320207083544 Hex. Screw M8 X 35Hex. Screw M8 X 35
-
233020077 M8 WasherM8 Washer
-
2340232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
2500503193638 Shaft-lowerShaft-lower
-
3075503192494 WasherWasher
-
3080207204044 Hexagonal ScrewHexagonal Screw
