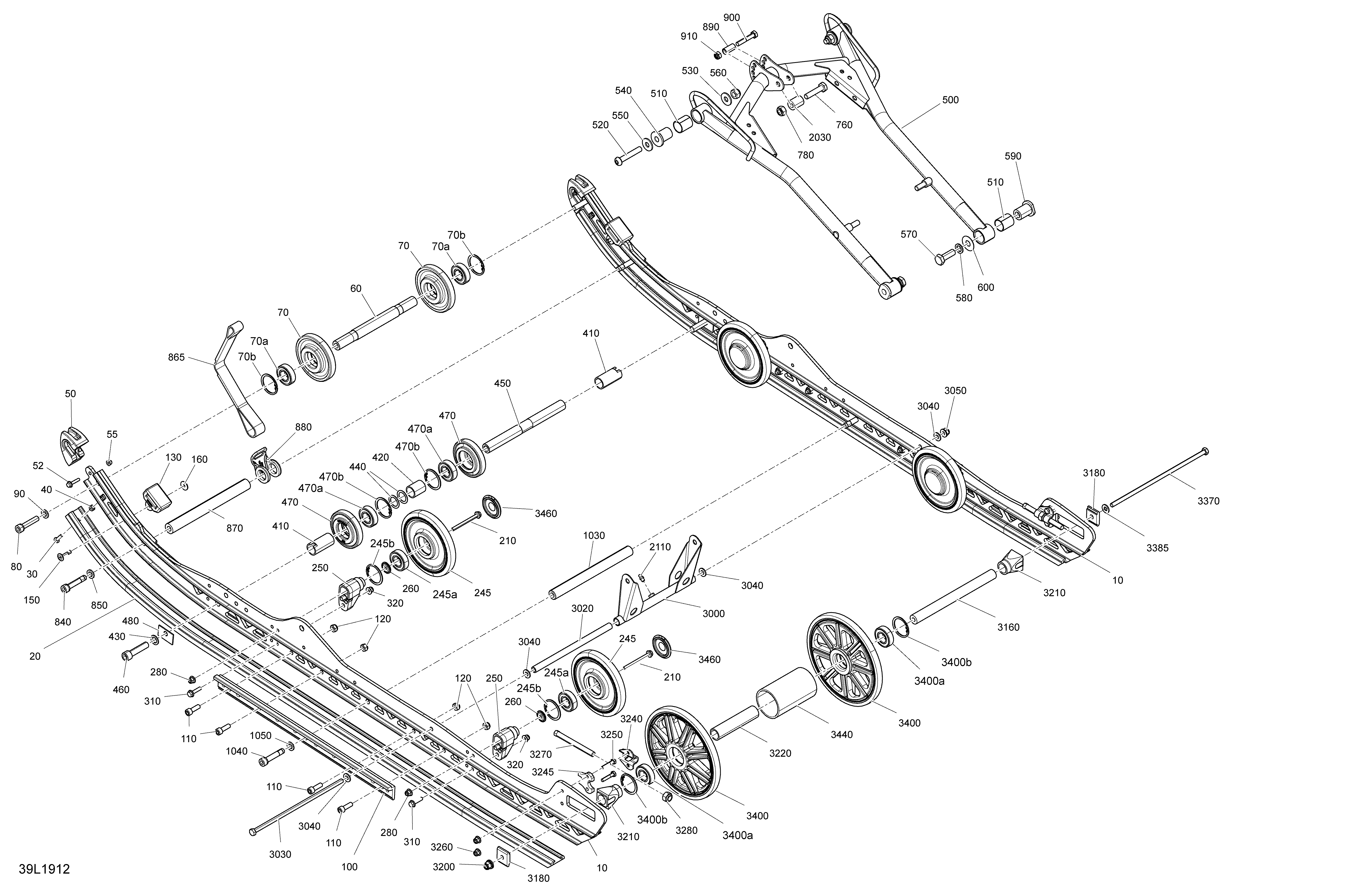

08- Rear Suspension Shocks BoonDocker - 850 E-TEC Lower Parts для BRP Lynx 002 - BoonDocker RE 850 E-TEC - 2019
-
№АртикулНазвание
-
10503195046 Black, Runner. Package 3700Black, Runner. Package 3700
-
10503195047 Black, Runner. Package 3900Black, Runner. Package 3900
-
20503191198 Black Slider Shoe 154''. Package 3700Black Slider Shoe 154''. Package 3700
-
20503191501 Slider Shoe 163''. Package 3900Slider Shoe 163''. Package 3900
-
30208562531 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
40232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
50503194249 ProtectorProtector
-
52207652544 Hex. Flanged Screw M5 X 25Hex. Flanged Screw M5 X 25
-
55233251434 Flanged Elastic Nut M5Flanged Elastic Nut M5
-
60503192842 Front Wheel ShaftFront Wheel Shaft
-
70503192611 Black Wheel Ass'y, 100 mm. Includes 70 to 70bBlack Wheel Ass'y, 100 mm. Includes 70 to 70b
-
70a503190396 Ball BearingBall Bearing
-
70b415129371 Retaining RingRetaining Ring
-
80205505054 Socket ScrewSocket Screw
-
90503192496 WasherWasher
-
100503195397 Rail ReinforcementRail Reinforcement
-
110205082554 Socket Screw M8 X 25Socket Screw M8 X 25
-
120232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
130503193504 Rubber StopperRubber Stopper
-
150293150224 Rivet Pop 3/16Rivet Pop 3/16
-
160503191273 WasherWasher
-
210207667056 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
245503191316 Black - Wheel Ass'y 141 mm. Includes 245 to 245bBlack - Wheel Ass'y 141 mm. Includes 245 to 245b
-
245a503190396 Ball BearingBall Bearing
-
245b415129371 Retaining RingRetaining Ring
-
250503193894 Casted SupportCasted Support
-
260503191820 Wheel Cup M6Wheel Cup M6
-
280233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
310207662556 Hex. Flange Screw M6 X 25Hex. Flange Screw M6 X 25
-
320233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
410503194575 SpacerSpacer
-
420503194576 SpacerSpacer
-
430503192491 WasherWasher
-
44031013 Shim RingShim Ring
-
450503195409 Lower Shaft ShockLower Shaft Shock
-
460205525554 Socket ScrewSocket Screw
-
470503194573 Black, Wheel Ass'y 80 mm. Includes 470 to 470bBlack, Wheel Ass'y 80 mm. Includes 470 to 470b
-
470a503190396 Ball BearingBall Bearing
-
470b415129371 Retaining RingRetaining Ring
-
480605449294 Support PlateSupport Plate
-
500503193561 Front ArmFront Arm
-
510503191554 BushingBushing
-
520503194947 Screw-Socket BN.HD. M10 X 60Screw-Socket BN.HD. M10 X 60
-
530503191926 WasherWasher
-
540503194580 Upper Axle SleeveUpper Axle Sleeve
-
550503191926 WasherWasher
-
560233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
570250000537 Hex. Cap Screw M12 X 35Hex. Cap Screw M12 X 35
-
580503192491 WasherWasher
-
590503194579 Lower Axle SleeveLower Axle Sleeve
-
600503190656 WasherWasher
-
760207004544 Hex. Screw M10 X 45Hex. Screw M10 X 45
-
780232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
840205505054 Socket ScrewSocket Screw
-
850503192496 WasherWasher
-
865605355116 Limiter StrapLimiter Strap
-
870503195015 Limiter Strap ShaftLimiter Strap Shaft
-
880503194867 Holder, Limiter StrapHolder, Limiter Strap
-
890605455335 SleeveSleeve
-
900207084544 Hex. Screw M8 X 45Hex. Screw M8 X 45
-
910232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
10305343471 ShaftShaft
-
1040205505054 Socket ScrewSocket Screw
-
1050503192496 WasherWasher
-
20305446652 BushingBushing
-
2110408200700 Grease FittingGrease Fitting
-
3000503194342 Rear SwingRear Swing
-
3020503189156 Pivot Arm AxlePivot Arm Axle
-
3030503192440 Bolt M8 X 248mmBolt M8 X 248mm
-
3040503192494 WasherWasher
-
3050233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
3160503194105 Rear ShaftRear Shaft
-
3180503194067 Slidder AxleSlidder Axle
-
3200233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
3210503190428 Rear Wheel SpacerRear Wheel Spacer
-
3220503191263 Rear SpacerRear Spacer
-
3240503192583 TensionerTensioner
-
3245503193250 SpacerSpacer
-
3250207063054 Hex. Cap Screw M6 X 30Hex. Cap Screw M6 X 30
-
3260233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
3270230100054 Hex Screw M10 x 100Hex Screw M10 x 100
-
3280233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
3370503194069 Bolt M8Bolt M8
-
3385250200159 Washer-Spring Conical M8Washer-Spring Conical M8
-
3400503194880 Wheel 200. Includes 3400 to 3400bWheel 200. Includes 3400 to 3400b
-
3400a503190396 Ball BearingBall Bearing
-
3400b415129371 Retaining RingRetaining Ring
-
3440503193097 BushingBushing
-
3460503192771 Black, Wheel CapBlack, Wheel Cap
