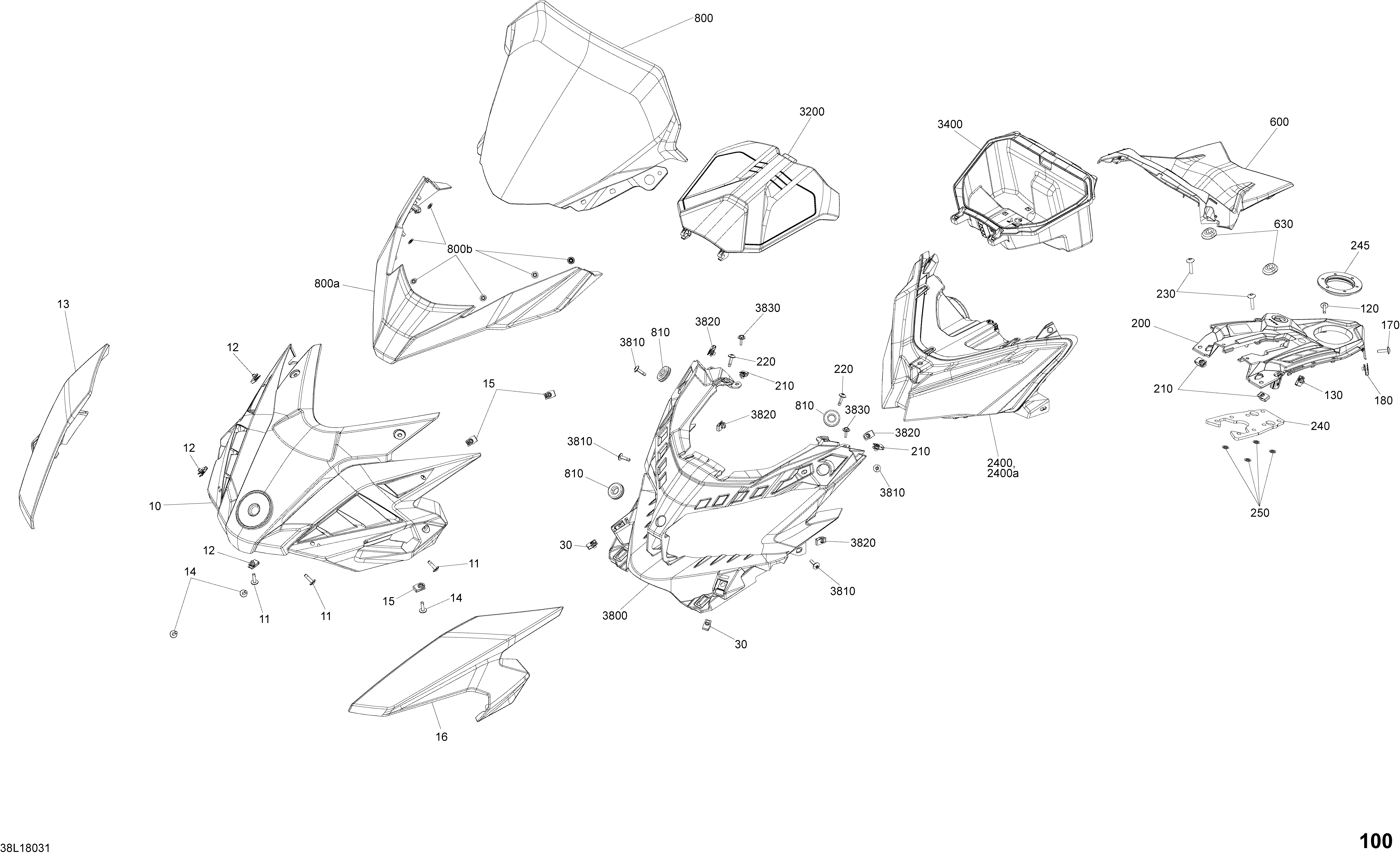

09- Hood - Front Section для BRP Lynx XTRIM 850 E-TEC - 2018
-
№АртикулНазвание
-
10517306115 Hood MiddleHood Middle
-
11250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
12250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
13517306484 RH Hood FrontRH Hood Front
-
14250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
15250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
16517306485 LH Hood FrontLH Hood Front
-
30250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
120250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
130250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
170250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
180250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
200517306071 Console RearConsole Rear
-
210250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
220250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
230250000587 Torx Screw M5 X 26Torx Screw M5 X 26
-
240517306398 Foam ConsoleFoam Console
-
245517304518 Console NutConsole Nut
-
250732610072 Push NutPush Nut
-
600517306117 Indicator SupportIndicator Support
-
630705000321 Oval WasherOval Washer
-
800517306233 Windshield Low. Includes 800 to 800bWindshield Low. Includes 800 to 800b
-
800a517306187 Wind DeflectorWind Deflector
-
800b732610072 Push NutPush Nut
-
810517303756 GrommetGrommet
-
2400517305752 Headlamp. Includes 2400 to 2400aHeadlamp. Includes 2400 to 2400a
-
2400a415130081 BulbBulb
-
3200517305871 Cover Ass'yCover Ass'y
-
3400517306058 Trunk Ass'yTrunk Ass'y
-
3800517306186 Black, Head LampBlack, Head Lamp
-
3810250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
3820250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
3830250000725 Screw M4 X 16Screw M4 X 16
