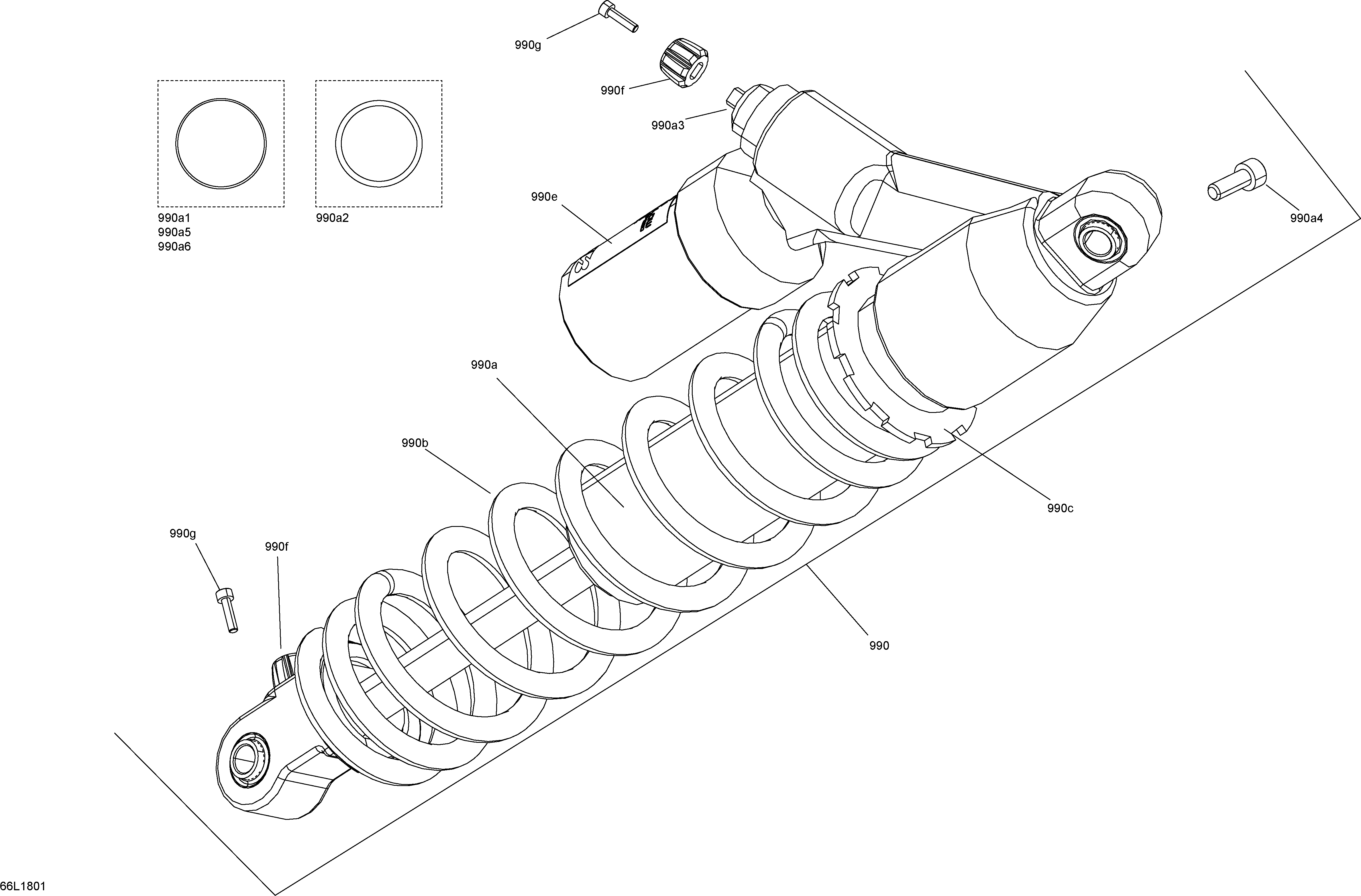

07- Shocks Front Package RE для BRP Lynx XTRIM 850 E-TEC - 2018
-
№АртикулНазвание
-
990a505074272 RH Front Shock. Includes 990a to 990a6RH Front Shock. Includes 990a to 990a6
-
990a505074270 LH Front Shock. Includes 990a to 990a6LH Front Shock. Includes 990a to 990a6
-
990a1415093807 O-RingO-Ring
-
990a2415093806 Piston RingPiston Ring
-
990a3505070398 Air ValveAir Valve
-
990a4505070399 ScrewScrew
-
990a5505070400 O-RingO-Ring
-
990a6415093804 O-RingO-Ring
-
990b505073228 RessortRessort
-
990c503192608 Spring StopperSpring Stopper
-
990d505073150 Washer. Not ShownWasher. Not Shown
-
990e516008320 Shock Adjustment DecalShock Adjustment Decal
-
990f505072753 Adjustment KnobAdjustment Knob
-
990g205031060 Socket Screw M3 X 10Socket Screw M3 X 10
