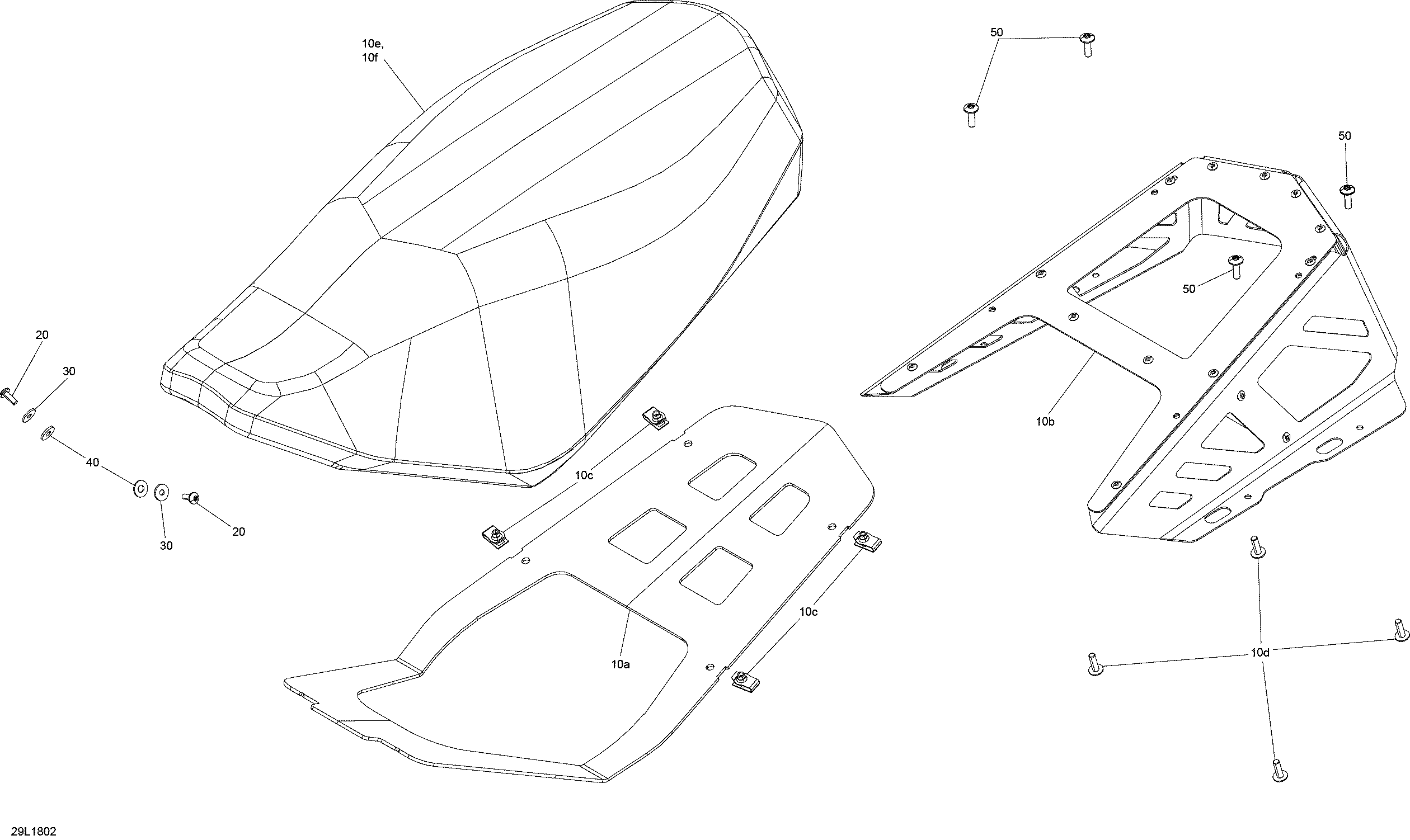

09- Seat Rave - 600 RS для BRP Lynx RAVE Racing - 2018
-
№АртикулНазвание
-
10a510006295 Seat BaseSeat Base
-
10b510006423 Seat BaseSeat Base
-
10c250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
10d250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
10e510006296 Foam-seatFoam-seat
-
10f510006540 Housse De Siege*cover-seatHousse De Siege*cover-seat
-
20250000742 Torx Screw M5 X 14Torx Screw M5 X 14
-
30250200140 WasherWasher
-
40250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
50250000717 Torx Head Screw M6 X 16Torx Head Screw M6 X 16
