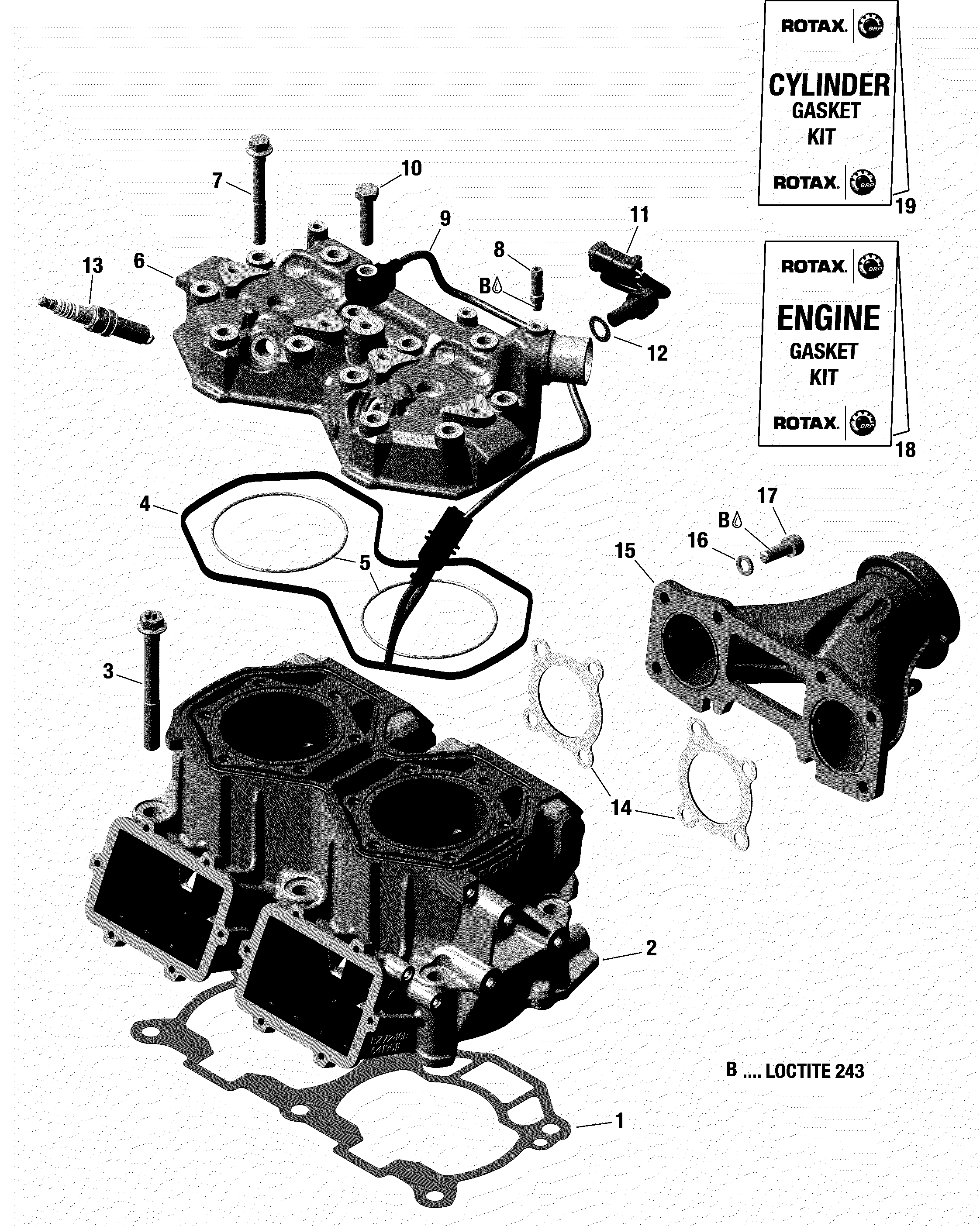

01- Cylinder And Cylinder Head Finlande, Europe для BRP Lynx RAVE Racing - 2018
-
№АртикулНазвание
-
1420831070 Gasket 0.5Gasket 0.5
-
1420831071 Gasket 0.6Gasket 0.6
-
1420831072 Gasket 0.7Gasket 0.7
-
1420831073 Gasket 0.8Gasket 0.8
-
2420413514 Cylindr BlockCylindr Block
-
3420441187 Flanged Torx Screw M10 X 90Flanged Torx Screw M10 X 90
-
4420430044 Square RingSquare Ring
-
5420831825 O-Ring CylinderO-Ring Cylinder
-
6420413423 Cylinder HeadCylinder Head
-
7420640954 Hex. Collar Screw M8 X 68.5Hex. Collar Screw M8 X 68.5
-
8420924724 Hose NippleHose Nipple
-
9420664031 Noise SensorNoise Sensor
-
10207083544 Hex. Screw M8 X 35Hex. Screw M8 X 35
-
11420664507 Temperature SensorTemperature Sensor
-
12420250015 Washer, CopperWasher, Copper
-
13415130211 Spark PlugSpark Plug
-
14420430487 GasketGasket
-
15420873040 Exhaust ManifoldExhaust Manifold
-
16420427290 WasherWasher
-
17420841051 Allen Screw M8 X 22Allen Screw M8 X 22
-
18420894266 Gasket Set EngineGasket Set Engine
-
19420894261 Gasket Set CylinderGasket Set Cylinder
