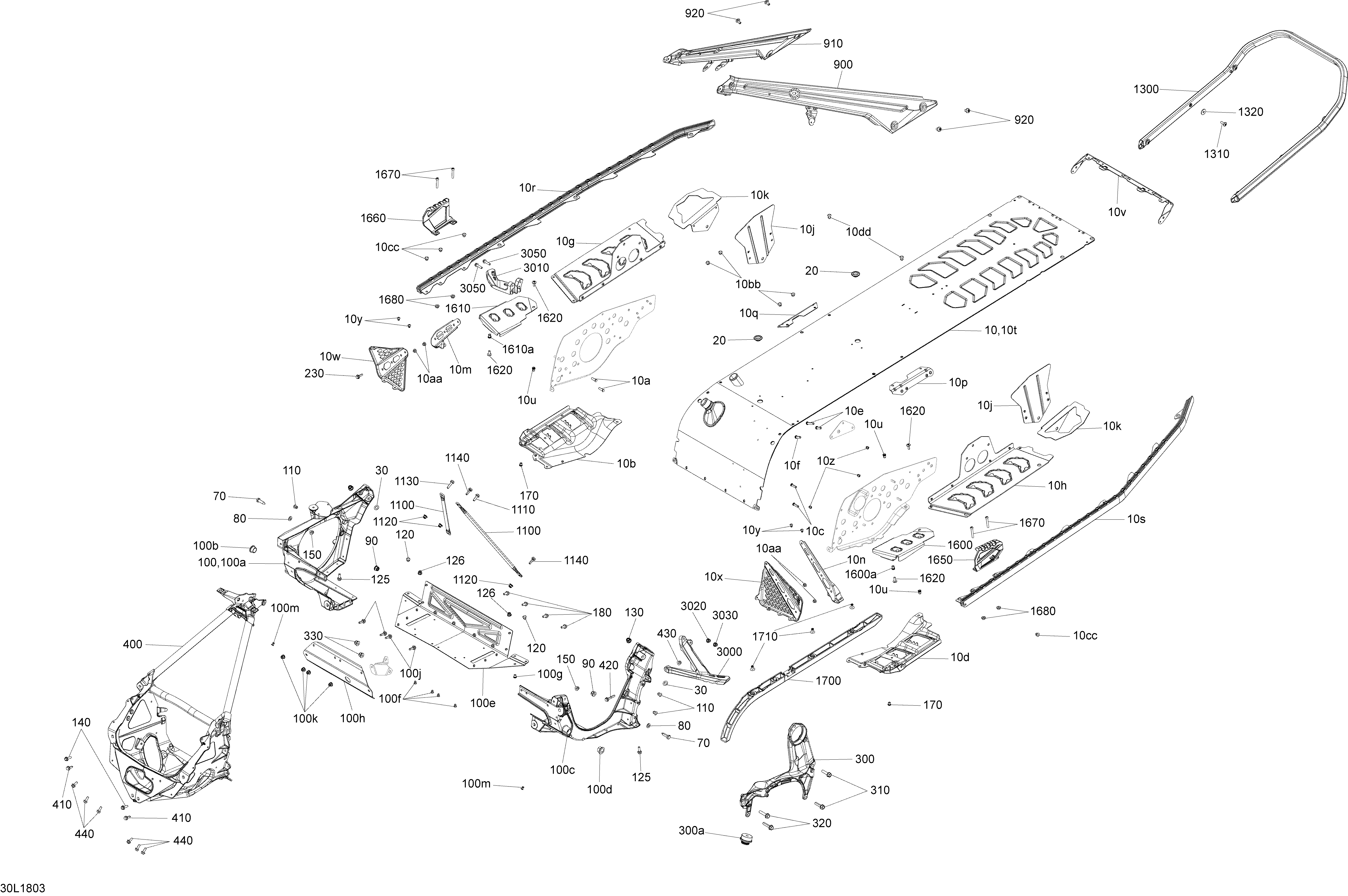

09- Frame Rave - 850 E-TEC для BRP Lynx RAVE 850 E-TEC - 2018

№

Артикул

Название
10>10dd

518330083 Frame Rave Black. Includes 10 to 10dd

Frame Rave Black. Includes 10 to 10dd
10a

250300027 Clinch Stud M6 X 20

Clinch Stud M6 X 20
10b>10c

518329301 Footrest Reinforcement Rh

Footrest Reinforcement Rh
10c

250300027 Clinch Stud M6 X 20

Clinch Stud M6 X 20
10d>10f

518329300 Footrest Reinforcement Lh

Footrest Reinforcement Lh
10e

250300027 Clinch Stud M6 X 20

Clinch Stud M6 X 20
10f

250300031 Clinch Stud M6 X 30

Clinch Stud M6 X 30
10g

518329310 Angle Reinforcement Rh

Angle Reinforcement Rh
10h

518329309 Angle Reinforcement Lh

Angle Reinforcement Lh
10j

518329303 Rear Arm Support Rave

Rear Arm Support Rave
10k

518329304 Rear Support Rave

Rear Support Rave
10m

518329305 Right Reinforcement Footrest

Right Reinforcement Footrest
10n

518329306 Left Reinforcement Footrest

Left Reinforcement Footrest
10p

518330262 Member Fixation Plate Lh.

Member Fixation Plate Lh.
10q

518330263 Member Fixation Plate Rh.

Member Fixation Plate Rh.
10r

518329307 Right Roller

Right Roller
10s

518329308 Left Roller

Left Roller
10t

518330294 Welded Radiator

Welded Radiator
10u

605636003 Clinch Nut M6 Hexsert

Clinch Nut M6 Hexsert
10v

518328990 Rear Cap

Rear Cap
10w

518328460 RH Footrest

RH Footrest
10x

518328463 LH Footrest

LH Footrest
10y

390909100 Avex Rivet

Avex Rivet
10z

390909200 Avex Rivet

Avex Rivet
10aa

293150096 Hemlock Rivet, 6.5 mm

Hemlock Rivet, 6.5 mm
10bb

293150119 Hemlock Rivet, 6.5 mm

Hemlock Rivet, 6.5 mm
10cc

293150174 Hemlock Rivet, 6.4 mm

Hemlock Rivet, 6.4 mm
10dd

293150147 Hemlock Rivet

Hemlock Rivet
20

293730052 Black Plug

Black Plug
30

506151252 Washer

Washer
70

250000942 Hex Screw M8 X 30

Hex Screw M8 X 30
80

234081410 Flat Washer 8 mm

Flat Washer 8 mm
90

233281414 Hex. Flanged Elastic Nut M8

Hex. Flanged Elastic Nut M8
100>100m

518330090 Riveted Module E. Includes 100 to 100m

Riveted Module E. Includes 100 to 100m
100a>100b

518329999 Right Member Assembly. Includes 100a to 100b

Right Member Assembly. Includes 100a to 100b
100b

505073317 Leg Cushion

Leg Cushion
100c>100d

518329960 Left Member Assembly. Includes 100c to 100d

Left Member Assembly. Includes 100c to 100d
100d

505073317 Leg Cushion

Leg Cushion
100e

518329844 Bottom Plate

Bottom Plate
100f

390909100 Avex Rivet

Avex Rivet
100g

293450268 Insert

Insert
100h

518330100 Front Member

Front Member
100j

207662046 Hex. Flanged Screw M6 X 20

Hex. Flanged Screw M6 X 20
100k

233261414 Hex. Flanged Elastic Nut M6

Hex. Flanged Elastic Nut M6
100m

390909100 Avex Rivet

Avex Rivet
110

293150147 Hemlock Rivet

Hemlock Rivet
120

293150174 Hemlock Rivet, 6.4 mm

Hemlock Rivet, 6.4 mm
125

207662044 Hex. Flanged Screw M6 X 20

Hex. Flanged Screw M6 X 20
126

233261414 Hex. Flanged Elastic Nut M6

Hex. Flanged Elastic Nut M6
130

233281414 Hex. Flanged Elastic Nut M8

Hex. Flanged Elastic Nut M8
140

207662044 Hex. Flanged Screw M6 X 20

Hex. Flanged Screw M6 X 20
150

233261414 Hex. Flanged Elastic Nut M6

Hex. Flanged Elastic Nut M6
170

293450268 Insert

Insert
180

207661644 Hex. Flanged Screw M6 X 16

Hex. Flanged Screw M6 X 16
230

207562034 Hex. Flanged Screw M6 X 20, Scotch Grip

Hex. Flanged Screw M6 X 20, Scotch Grip
300>300a

518328693 Brace Ass'y. Includes 300 to 300a

Brace Ass'y. Includes 300 to 300a
300a

512060295 Rubber Mount

Rubber Mount
310

210283040 Hex. Flanged Screw M6 X 30

Hex. Flanged Screw M6 X 30
320

207683544 Hex. Flanged Screw M8 X 35

Hex. Flanged Screw M8 X 35
330

233281414 Hex. Flanged Elastic Nut M8

Hex. Flanged Elastic Nut M8
400

518329966 S Module

S Module
410

250000822 Hex. Flanged Screw M6 X 16

Hex. Flanged Screw M6 X 16
420

207663544 Hex. Flanged Screw M6 X 35

Hex. Flanged Screw M6 X 35
430

233261414 Hex. Flanged Elastic Nut M6

Hex. Flanged Elastic Nut M6
440

207661646 Hex. Flange Screw M6 X 16

Hex. Flange Screw M6 X 16
900

518329779 Left Member True Titanium

Left Member True Titanium
910

518329780 Right Member True Titanium

Right Member True Titanium
920

250000887 Pan Head Torx Screw M8 X 12

Pan Head Torx Screw M8 X 12
1100

518329974 Upper Column

Upper Column
1110

207562034 Hex. Flanged Screw M6 X 20, Scotch Grip

Hex. Flanged Screw M6 X 20, Scotch Grip
1120

233261414 Hex. Flanged Elastic Nut M6

Hex. Flanged Elastic Nut M6
1130

207662544 Hex. Flanged Screw M6 X 25

Hex. Flanged Screw M6 X 25
1140

207662044 Hex. Flanged Screw M6 X 20

Hex. Flanged Screw M6 X 20
1300

518328745 Rear Bumper

Rear Bumper
1310

250000779 Torx Screw M6 X 18, Scotch Grip

Torx Screw M6 X 18, Scotch Grip
1320

224061201 Flat Washer

Flat Washer
1600>1600a

518329570 Footrest Lh Black. Includes 1600 to 1600a

Footrest Lh Black. Includes 1600 to 1600a
1600a

605636003 Clinch Nut M6 Hexsert

Clinch Nut M6 Hexsert
1610>1610a

518329571 Footrest Rh Black. Includes 1610 to 1610a

Footrest Rh Black. Includes 1610 to 1610a
1610a

605636003 Clinch Nut M6 Hexsert

Clinch Nut M6 Hexsert
1620

250000755 Torx Screw M6 X 16

Torx Screw M6 X 16
1650

518329572 Side Foot Support Lh

Side Foot Support Lh
1660

518329573 Side Foot Support Rh

Side Foot Support Rh
1670

235564054 Screw-torx Button Head M6 X 40

Screw-torx Button Head M6 X 40
1680

233161414 Hex. Flanged Nut M6

Hex. Flanged Nut M6
1700

518329982 Front Protector

Front Protector
1710

293150108 Pop Rivet 3/16”

Pop Rivet 3/16”
3000

518330358 Black Toe-hold

Black Toe-hold
3010

518329134 Toe Hold

Toe Hold
3020

233261494 Hex. Elastic Flanged Nut M6

Hex. Elastic Flanged Nut M6
3030

233261494 Hex. Elastic Flanged Nut M6

Hex. Elastic Flanged Nut M6
3050

210262550 Hex. Flanged Forming Screw M6 X 25

Hex. Flanged Forming Screw M6 X 25
