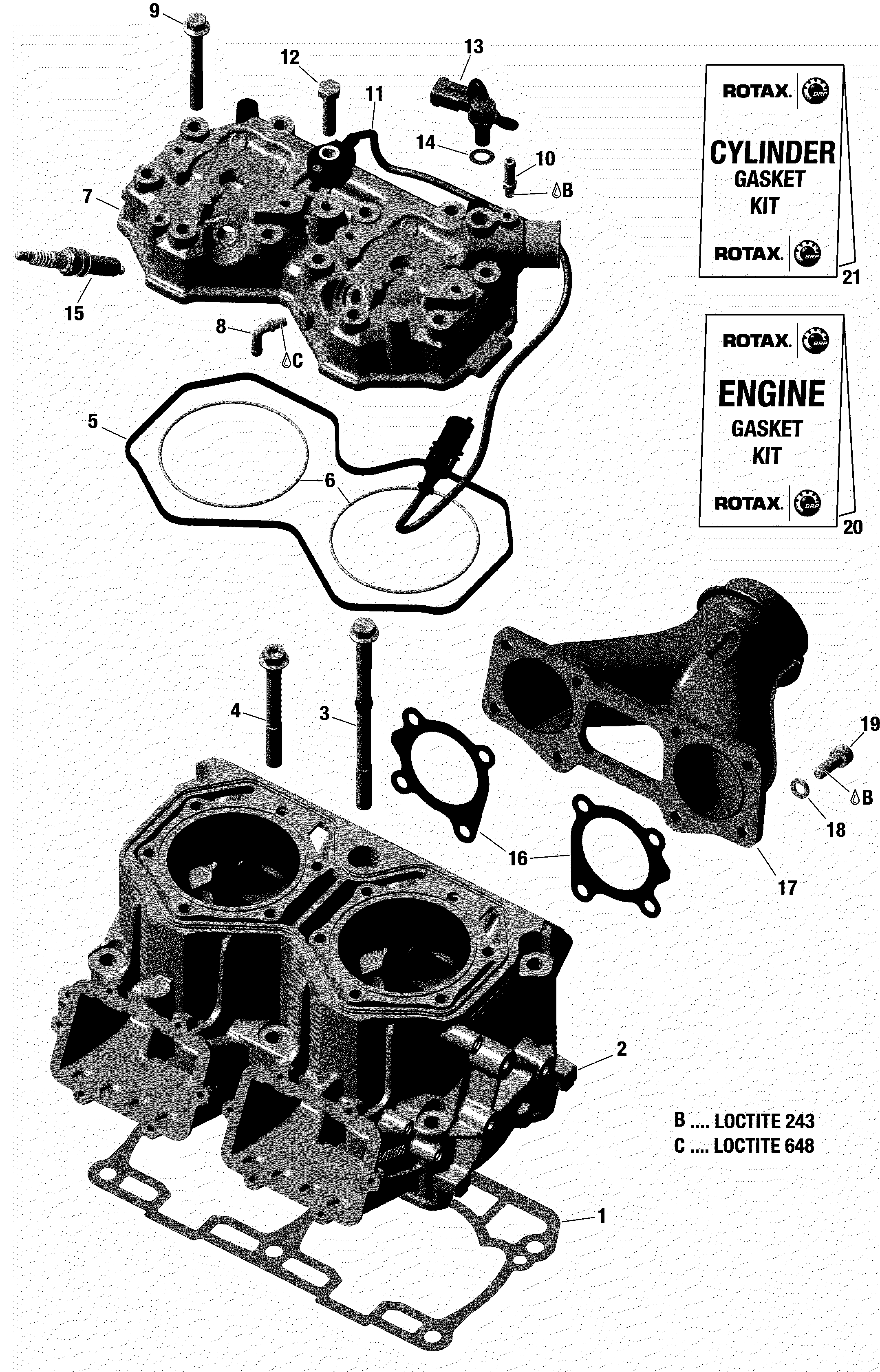

01- Cylinder And Cylinder Head для BRP Lynx RAVE 850 E-TEC - 2018
-
№АртикулНазвание
-
1420831020 Double Gasket 0.5MMDouble Gasket 0.5MM
-
1420831021 Double Gasket 0.6MMDouble Gasket 0.6MM
-
1420831022 Double Gasket 0.7MMDouble Gasket 0.7MM
-
1420831023 Double Gasket 0.8MMDouble Gasket 0.8MM
-
1420831024 Double Gasket 0.9MMDouble Gasket 0.9MM
-
2420413304 CylinderCylinder
-
3420641762 Hex. Flanged Screw M10 X 150Hex. Flanged Screw M10 X 150
-
4420441187 Flanged Torx Screw M10 X 90Flanged Torx Screw M10 X 90
-
5420430042 Square RingSquare Ring
-
6420931410 O-RingO-Ring
-
7>8420413292 Cylinder HeadCylinder Head
-
8420924523 Fitting 90DFitting 90D
-
9420640954 Hex. Collar Screw M8 X 68.5Hex. Collar Screw M8 X 68.5
-
10420924724 Hose NippleHose Nipple
-
11420664031 Noise SensorNoise Sensor
-
12207083544 Hex. Screw M8 X 35Hex. Screw M8 X 35
-
13420664508 Temperature SensorTemperature Sensor
-
14420250015 Washer, CopperWasher, Copper
-
15415130154 Spark PlugSpark Plug
-
16420430486 GasketGasket
-
17420873030 Exhaust ManifoldExhaust Manifold
-
18420427290 WasherWasher
-
19420841051 Allen Screw M8 X 22Allen Screw M8 X 22
-
20420894265 Engine Gasket KitEngine Gasket Kit
-
21420894260 Cylinder Gasket SetCylinder Gasket Set
