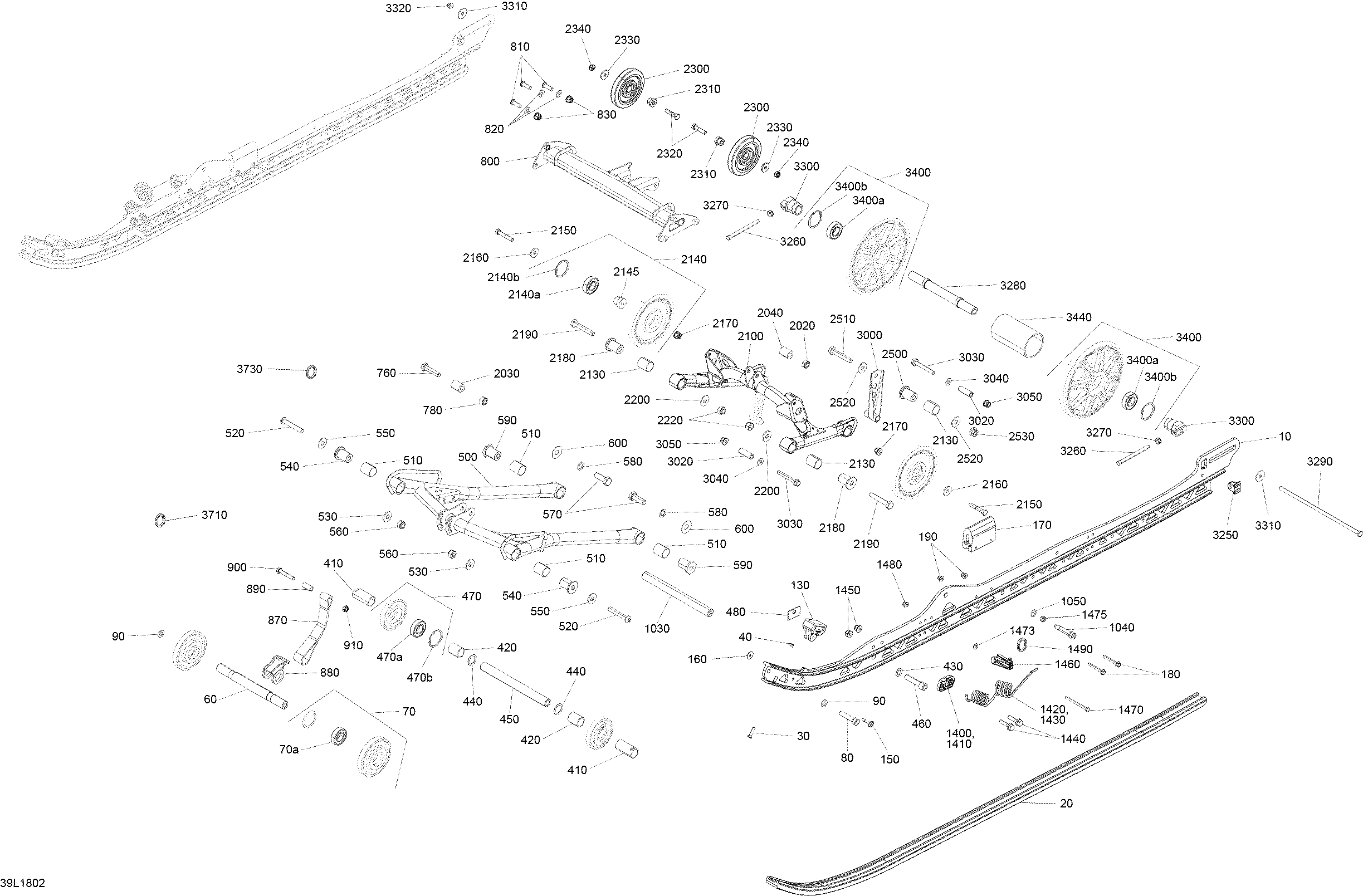

08- Rear Suspension Shocks Boondocker - 850 E-TEC - Package BD4100 DS для BRP Lynx Boondocker 850 E-TEC - 2018
-
№АртикулНазвание
-
10503194801 Runner Bd4100 Ds True TitaniumRunner Bd4100 Ds True Titanium
-
20503194240 Slide Shoe Bd4100Slide Shoe Bd4100
-
30208562531 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
40232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
60503192842 Front Wheel ShaftFront Wheel Shaft
-
70>70a503192611 Black Wheel Ass'y, 100 mm. Includes 70 to 70aBlack Wheel Ass'y, 100 mm. Includes 70 to 70a
-
70a503190396 Ball BearingBall Bearing
-
80205505054 Screw-socket Hd.din.912 S. GripScrew-socket Hd.din.912 S. Grip
-
90503192496 WasherWasher
-
130503193504 Rubber StopperRubber Stopper
-
150293150224 Rivet Pop 3/16Rivet Pop 3/16
-
160503191273 WasherWasher
-
170570023100 Rubber StopperRubber Stopper
-
180207664554 Screw-hex.flange Din.6921Screw-hex.flange Din.6921
-
190233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
410503194575 Entretoise *spacerEntretoise *spacer
-
420503194576 Entretoise *spacerEntretoise *spacer
-
430503192491 WasherWasher
-
44031013 Shim Ring 20x28x1.5 Din 988(1=10pcsShim Ring 20x28x1.5 Din 988(1=10pcs
-
450605350690 ShaftShaft
-
460205525554 Screw-socket Hd.din 912 S.gripScrew-socket Hd.din 912 S.grip
-
470>470b503194573 Black Wheel Ass'y, 80 Mm. Includes 470 to 470bBlack Wheel Ass'y, 80 Mm. Includes 470 to 470b
-
470a503190396 Ball BearingBall Bearing
-
470b415129371 Retaining RingRetaining Ring
-
480605449294 Support PlateSupport Plate
-
500503194695 Front ArmFront Arm
-
510503191554 BushingBushing
-
520503194947 Screw-socket Bn.hd. M10 X 60Screw-socket Bn.hd. M10 X 60
-
530503191926 WasherWasher
-
540503190698 AxleAxle
-
550503191926 WasherWasher
-
560233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
570250000537 Hex. Cap Screw M12 X 35Hex. Cap Screw M12 X 35
-
580503192491 WasherWasher
-
590503191966 Lower AxleLower Axle
-
600503190656 WasherWasher
-
760207004544 Hex. Screw M10 X 45Hex. Screw M10 X 45
-
780232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
800503194697 Middle BeamMiddle Beam
-
810250000757 Screw-Torx Button Head M8 X 25 S.GrScrew-Torx Button Head M8 X 25 S.Gr
-
820503192494 WasherWasher
-
830233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
870503194577 Limiter StrapLimiter Strap
-
880503194867 Holder, Limiter StrapHolder, Limiter Strap
-
890605455335 SleeveSleeve
-
900207084544 Hex. Screw M8 X 45Hex. Screw M8 X 45
-
910232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
10305343471 ShaftShaft
-
1040205505054 Screw-socket Hd.din.912 S. GripScrew-socket Hd.din.912 S. Grip
-
1050503192496 WasherWasher
-
1400503194294 LH SupportLH Support
-
1410503194295 RH SupportRH Support
-
1420503194900 Lh SpringLh Spring
-
1430503194901 Rh SpringRh Spring
-
1440207683054 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
1450233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
1460503195087 Hook AssyHook Assy
-
1470207167054 Hex. Cap Screw M6 X 70Hex. Cap Screw M6 X 70
-
1473250200039 Flat WasherFlat Washer
-
1475232061414 Hex. Nut M6Hex. Nut M6
-
1480233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
1490414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
2020232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
20305446652 BushingBushing
-
20405446652 BushingBushing
-
2100503194848 Rear Arm WeldRear Arm Weld
-
2130503191554 BushingBushing
-
2140>2140b503193852 Idler Wheel O140mm,6004. Includes 2140 to 2140bIdler Wheel O140mm,6004. Includes 2140 to 2140b
-
2140a503190396 Ball BearingBall Bearing
-
2140b415129371 Retaining RingRetaining Ring
-
2145605454461 SleeveSleeve
-
2150207084544 Hex. Screw M8 X 45Hex. Screw M8 X 45
-
216020077 M8 Fender Wshr Din-9021b ZincM8 Fender Wshr Din-9021b Zinc
-
2170233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
2180503190698 AxleAxle
-
2190250000696 Screw-hex.cap Din 931Screw-hex.cap Din 931
-
2200503191926 WasherWasher
-
2220233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
2300572043500 Idler WheelIdler Wheel
-
2310503193330 SleeveSleeve
-
2320207083544 Hex. Screw M8 X 35Hex. Screw M8 X 35
-
233020077 M8 Fender Wshr Din-9021b ZincM8 Fender Wshr Din-9021b Zinc
-
2340232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
2500503190698 AxleAxle
-
2510250000696 Screw-hex.cap Din 931Screw-hex.cap Din 931
-
2520503191926 WasherWasher
-
2530233201466 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
3000503194869 Rear SwingRear Swing
-
3020503194890 Pivot Arm AxlePivot Arm Axle
-
3030207186054 Screw Hexagonal Cap M8 X 60Screw Hexagonal Cap M8 X 60
-
3040503192494 WasherWasher
-
3050233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
3250503194266 TensionnerTensionner
-
3260503194267 Hex. Cap Screw M8 X 95Hex. Cap Screw M8 X 95
-
3270232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
3280503194508 Rear Wheell AxleRear Wheell Axle
-
3290503194069 Bolt M8, 10.9Bolt M8, 10.9
-
3300503194747 TipTip
-
3310211200041 WasherWasher
-
3320233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
3400>3400b503194880 Wheel 200. Includes 3400 to 3400bWheel 200. Includes 3400 to 3400b
-
3400a503190396 Ball BearingBall Bearing
-
3400b415129371 Retaining RingRetaining Ring
-
3440503194286 BushingBushing
-
3710414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
3730414115200 Tie-Rap 180 mmTie-Rap 180 mm
