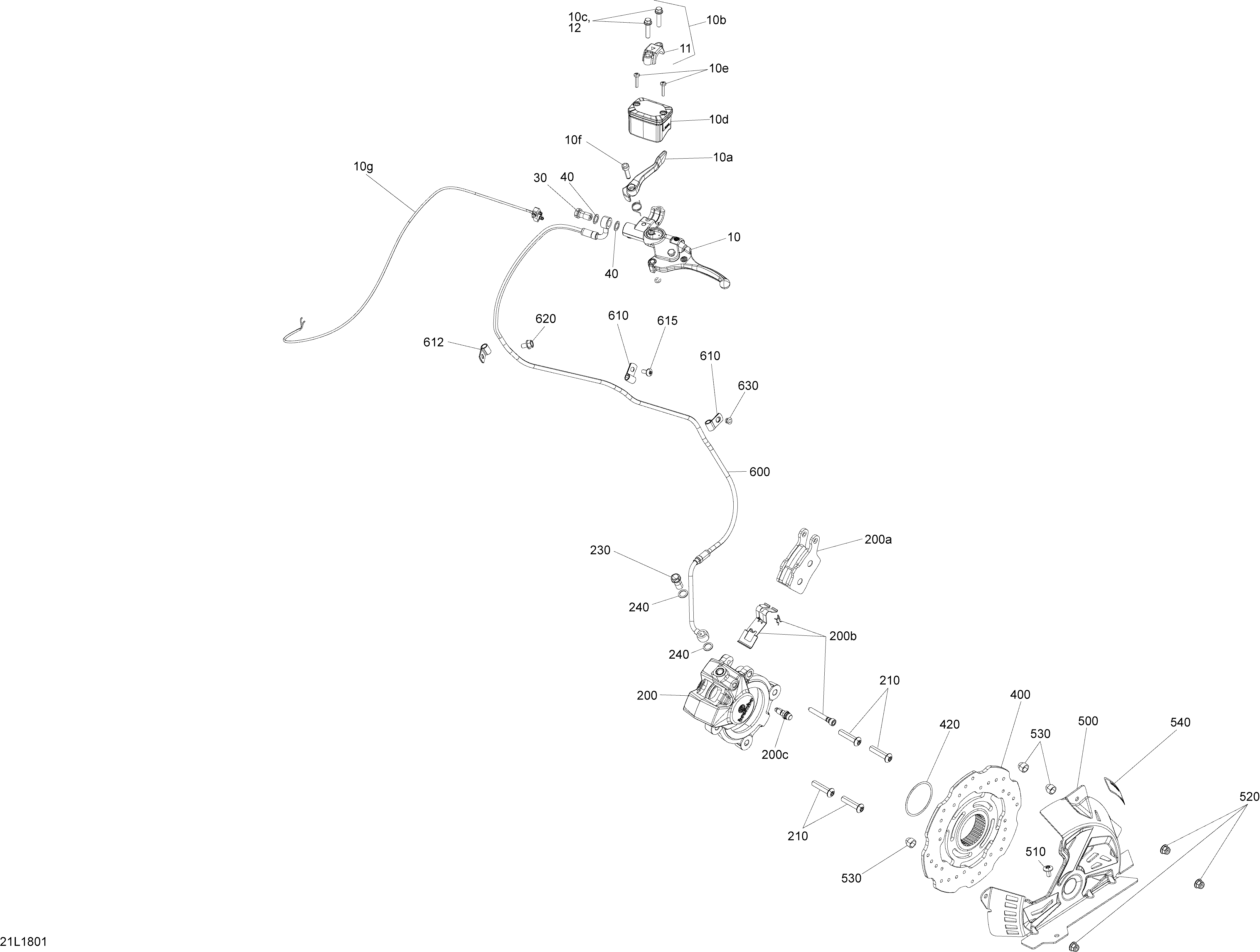

06- Brakes Boondocker - 850 E-TEC - Package RE для BRP Lynx Boondocker 850 E-TEC - 2018

  • №
    Артикул
    Название
  • 10>10g
    507032591 Master Cylinder Ass'y. Includes 10 to 10g
    Master Cylinder Ass'y. Includes 10 to 10g
  • 10a
    507032476 Lever
    Lever
  • 10b>10c
    507032477 Clamp And Screw Kit. Includes 10b to 10c
    Clamp And Screw Kit. Includes 10b to 10c
  • 10c
    250000447 Hex Flanged Screw M6 X 25
    Hex Flanged Screw M6 X 25
  • 10d>10e
    507032478 Master Cylinder Reservoir Ass'y. Includes 10d to 10e
    Master Cylinder Reservoir Ass'y. Includes 10d to 10e
  • 10e
    415129356 Screw M4 X 20
    Screw M4 X 20
  • 10f
    415030000 Pin Ass'y
    Pin Ass'y
  • 10g
    507032601 Microswitch
    Microswitch
  • 11
    719000049 Clamps Kit
    Clamps Kit
  • 12
    250000447 Hex Flanged Screw M6 X 25
    Hex Flanged Screw M6 X 25
  • 30
    507032551 Banjo Bolt
    Banjo Bolt
  • 40
    705600310 Copper Washer
    Copper Washer
  • 200>200c
    507032594 Brake caliper assembly. Includes 200 to 200c
    Brake caliper assembly. Includes 200 to 200c
  • 200a
    507032473 Brake Pads Kit
    Brake Pads Kit
  • 200b
    507032474 Pin, Clip & Spring Kit
    Pin, Clip & Spring Kit
  • 200c
    507032475 Bleeder
    Bleeder
  • 210
    250000764 Hex. Button Head Screw M8 X 35
    Hex. Button Head Screw M8 X 35
  • 230
    507032551 Banjo Bolt
    Banjo Bolt
  • 240
    705600310 Copper Washer
    Copper Washer
  • 400
    507032487 Disk
    Disk
  • 420
    293300209 O-ring
    O-ring
  • 500
    507032619 Black Disk Protector
    Black Disk Protector
  • 510
    250000767 Torx Truss Screw M6 X 12
    Torx Truss Screw M6 X 12
  • 520
    233261494 Hex. Elastic Flanged Nut M6
    Hex. Elastic Flanged Nut M6
  • 530
    293900129 Hexagonal Cap
    Hexagonal Cap
  • 540
    516007652 Warning Decal
    Warning Decal
  • 600
    507032626 Brake Hose
    Brake Hose
  • 610
    293650256 Clamp
    Clamp
  • 612
    293650256 Clamp
    Clamp
  • 615
    250000742 Torx Screw M5 X 14
    Torx Screw M5 X 14
  • 620
    210261040 Hex. Flanged Screw M6 X 10
    Hex. Flanged Screw M6 X 10
  • 630
    390402400 Pop Rivet 3/16''
    Pop Rivet 3/16''
