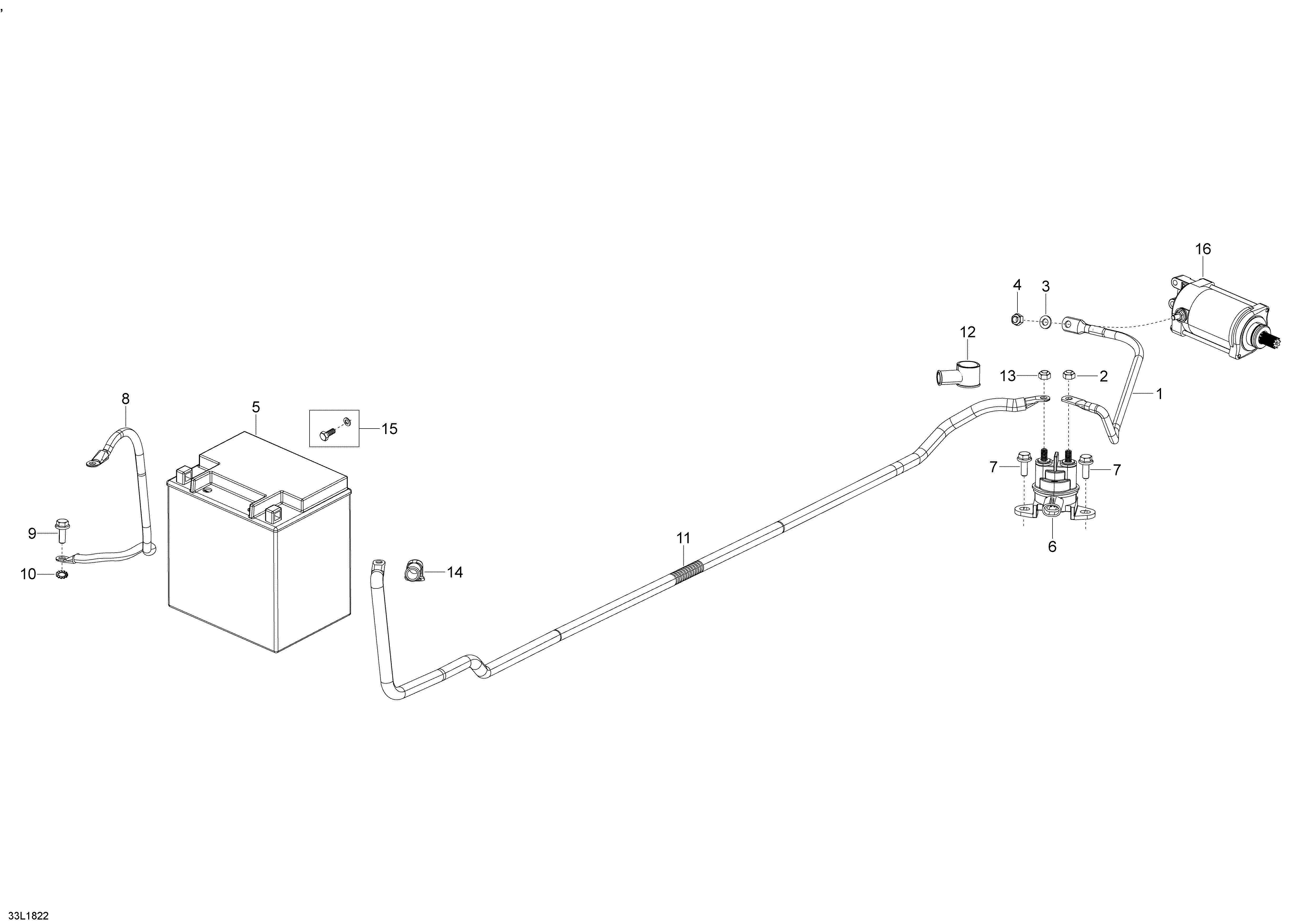

10- Battery And Electric Starter для BRP Lynx 69 Ranger 800R E-TEC - 2018
-
№АртикулНазвание
-
1515176806 Start CableStart Cable
-
2232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
3234061410 Flat Washer 6 mmFlat Washer 6 mm
-
4232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
5515176151 BatteryBattery
-
6278003012 Starter RelayStarter Relay
-
7207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
8515176780 Ground WireGround Wire
-
9233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
10250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
11515176805 Battery CableBattery Cable
-
12570151000 Protection CapProtection Cap
-
13232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
14710000495 Protector CapProtector Cap
-
15250000282 Battery Bolt KitBattery Bolt Kit
-
16515177389 StarterStarter
