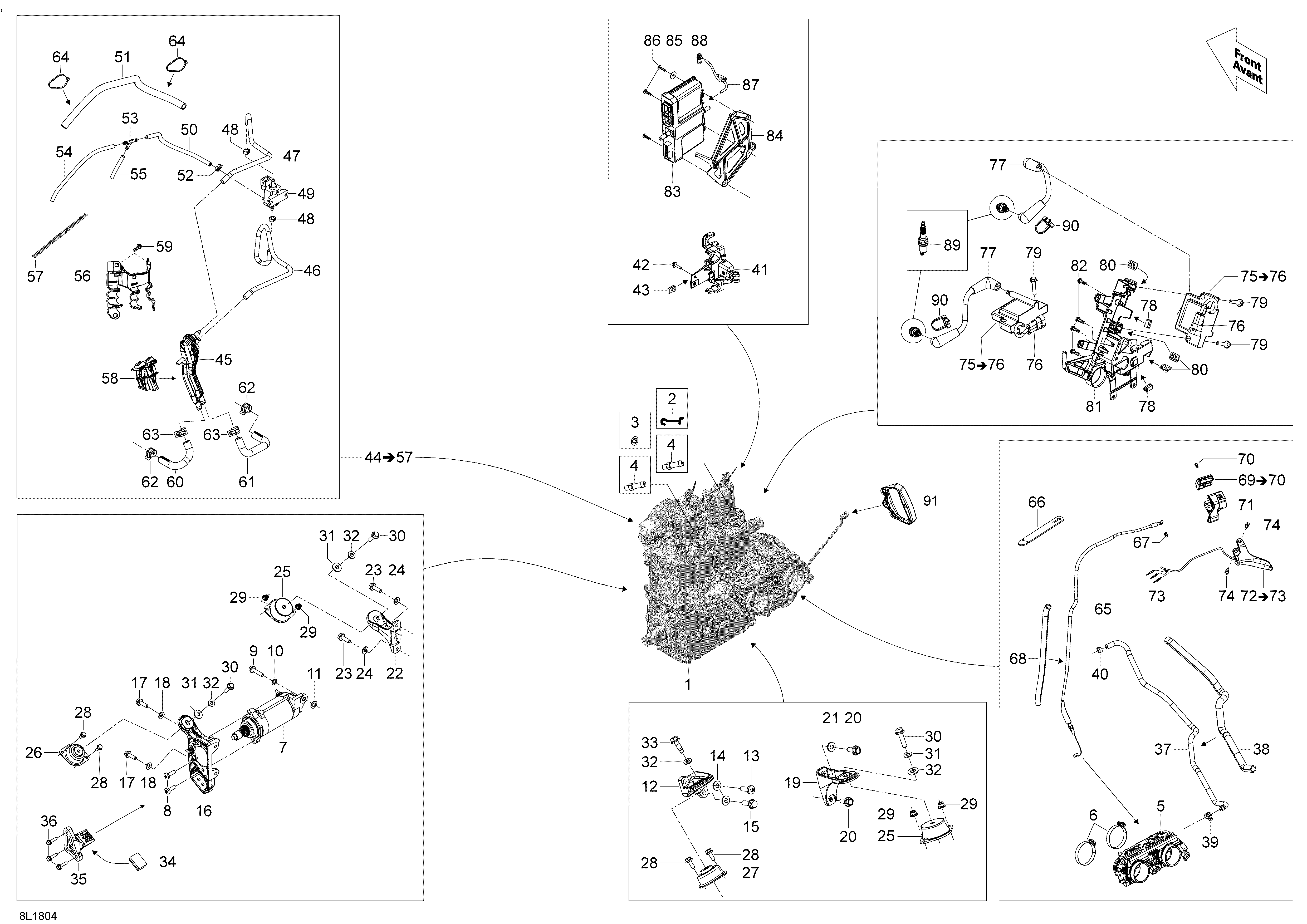

01- Engine 69 RANGER - 800R E-TEC для BRP Lynx 69 Ranger 800R E-TEC - 2018
‹-+›
-
№АртикулНазвание
-
2515177770 LockerLocker
-
3732610072 Push NutPush Nut
-
4420924724 Hose NippleHose Nipple
-
5420889202 Throttle BodyThrottle Body
-
6512060943 Gemi ClampGemi Clamp
-
7515177389 StarterStarter
-
8250000752 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
9207583544 Hex Flanged Screw M8 X 35, Scotch GripHex Flanged Screw M8 X 35, Scotch Grip
-
10250200008 Flat Washer With Teflon 8 mmFlat Washer With Teflon 8 mm
-
12512060478 Rear Support, PTORear Support, PTO
-
13250000752 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
14234281474 Conical Spring Washer M8Conical Spring Washer M8
-
15207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
16512060714 Front Support, PTOFront Support, PTO
-
17207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
18234281474 Conical Spring Washer M8Conical Spring Washer M8
-
19512060559 Rear Support, MAGRear Support, MAG
-
20207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
21234281474 Conical Spring Washer M8Conical Spring Washer M8
-
22512060469 Front Support, MAGFront Support, MAG
-
23207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
24234281474 Conical Spring Washer M8Conical Spring Washer M8
-
25512060729 Rubber MountRubber Mount
-
26512060387 Rubber MountRubber Mount
-
27512060448 Rubber MountRubber Mount
-
28207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
29233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
30207683044 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
31503183200 Washer, YellowWasher, Yellow
-
32234281474 Conical Spring Washer M8Conical Spring Washer M8
-
33250000796 Hex. Flanged Screw M8 X 25Hex. Flanged Screw M8 X 25
-
34512060766 StopperStopper
-
35512060576 Stopper SupportStopper Support
-
36207562544 Hex. Flanged Screw M6 X 25, Scotch GripHex. Flanged Screw M6 X 25, Scotch Grip
-
37512060944 Bleeder's Collector Outlet HoseBleeder's Collector Outlet Hose
-
39293650172 Tridon Gear ClampTridon Gear Clamp
-
40293650046 Oetiker ClampOetiker Clamp
-
41512060298 Solenoid SupportSolenoid Support
-
42207652044 Flanged Hex. Screw M5 X 20Flanged Hex. Screw M5 X 20
-
43250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
45512060692 ManifoldManifold
-
46415080200 Hose, PolyurethaneHose, Polyurethane
-
47415080200 Hose, PolyurethaneHose, Polyurethane
-
48293650234 Crimp ClampCrimp Clamp
-
49512061078 Solenoid ValveSolenoid Valve
-
50270000374 Hose 4.3 mmHose 4.3 mm
-
51409901700 Tubing 9 mmTubing 9 mm
-
52293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
53293710068 T-FittingT-Fitting
-
54270000374 Hose 4.3 mmHose 4.3 mm
-
55270000374 Hose 4.3 mmHose 4.3 mm
-
56512060827 Hose SupportHose Support
-
57512060934 SpringSpring
-
58512060822 Manifold SupportManifold Support
-
59250000937 Screw-Forming HEX.HD.FL.BZNScrew-Forming HEX.HD.FL.BZN
-
60512060695 LH Formed HoseLH Formed Hose
-
61512060694 RH Formed HoseRH Formed Hose
-
62293650214 Norma Spring ClampNorma Spring Clamp
-
63293650047 Crimp ClampCrimp Clamp
-
64293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
65512060633 Throttle CableThrottle Cable
-
66293850117 Rubber StrapRubber Strap
-
67414274500 CirclipCirclip
-
68409901700 Tubing 9 mmTubing 9 mm
-
69512060859 Upper HousingUpper Housing
-
71512060860 Lower HousingLower Housing
-
72512061250 Handle Ass'yHandle Ass'y
-
74732601143 Flanged ScrewFlanged Screw
-
75512060953 Ignition CoilIgnition Coil
-
77512061126 Ignition CableIgnition Cable
-
78710000992 ClipClip
-
79250000253 Flanged Hex. Screw M6 X 30Flanged Hex. Screw M6 X 30
-
80293100003 Nut M6Nut M6
-
81512060888 SupportSupport
-
82241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
83512061061 Calib. Module. Includes 4600 to 4600,001Calib. Module. Includes 4600 to 4600,001
-
84512060858 Calibrated Module SupportCalibrated Module Support
-
85250200040 Flat WasherFlat Washer
-
86250000760 Torx Screw Truss Head K50 X 20Torx Screw Truss Head K50 X 20
-
87415080100 LineLine
-
88414814100 Male ConnectorMale Connector
-
89415129484 Spark Plug, NGK PFR7ABSpark Plug, NGK PFR7AB
-
90512060993 ClampClamp
-
91293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
92293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
93293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
94293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
95414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
96293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
98512060136 Starter GripStarter Grip
-
99518325560 Adhesive PatchAdhesive Patch
