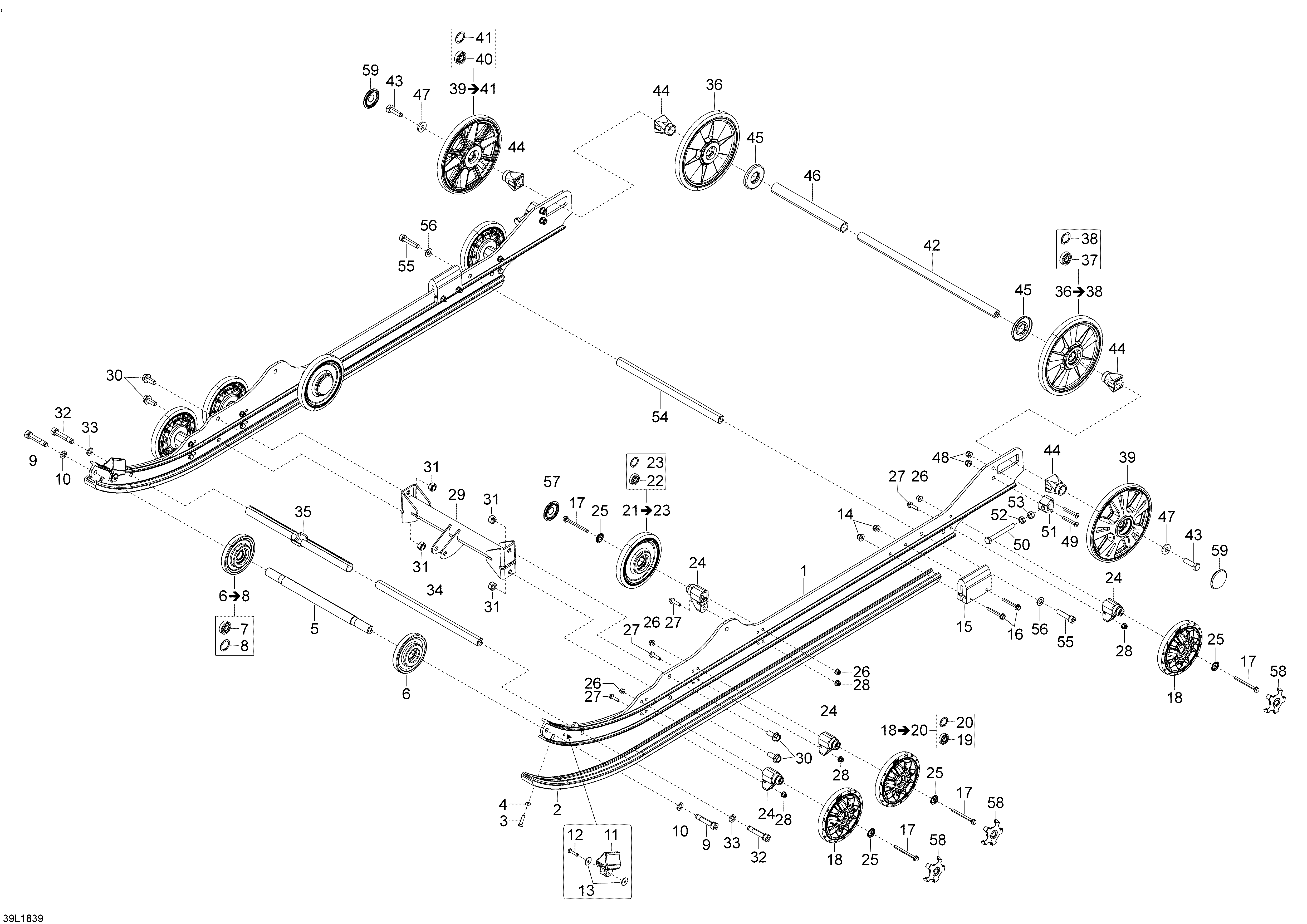

08- Rear Suspension 69RANGER - 1200 4-TEC для BRP Lynx 69 Ranger 1200 4-TEC - 2018

  • №
    Артикул
    Название
  • 1
    503194824 Runner
    Runner
  • 2
    503194307 Black, Slider Shoe
    Black, Slider Shoe
  • 3
    208562531 Phillips Screw M6 X 25
    Phillips Screw M6 X 25
  • 4
    232561434 Elastic Stop Nut M6
    Elastic Stop Nut M6
  • 5
    503192889 Front Wheel Shaft
    Front Wheel Shaft
  • 6
    503192611 Black Wheel Ass'y, 100 mm. Includes 6 To 8
    Black Wheel Ass'y, 100 mm. Includes 6 To 8
  • 7
    503190396 Ball Bearing
    Ball Bearing
  • 9
    205504544 Socket Screw
    Socket Screw
  • 10
    234001410 Flat Washer 10 mm
    Flat Washer 10 mm
  • 11
    503192106 Rubber Stopper
    Rubber Stopper
  • 12
    293150142 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 13
    503191273 Washer
    Washer
  • 14
    233261466 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 15
    570023100 Rubber Stopper
    Rubber Stopper
  • 16
    207664554 Hexagonal Flanged Screw
    Hexagonal Flanged Screw
  • 17
    207667056 Hex. Flange Screw M6 X 70
    Hex. Flange Screw M6 X 70
  • 18
    503193734 Wheel-141mm. Includes 18 To 20
    Wheel-141mm. Includes 18 To 20
  • 19
    503190396 Ball Bearing
    Ball Bearing
  • 21
    503191316 Black - Wheel Ass'y 141 mm. Includes 21 To 23
    Black - Wheel Ass'y 141 mm. Includes 21 To 23
  • 22
    503190396 Ball Bearing
    Ball Bearing
  • 23
    415129371 Retaining Ring
    Retaining Ring
  • 24
    503193894 Casted Support
    Casted Support
  • 25
    503191820 Wheel Cup M6
    Wheel Cup M6
  • 26
    233261466 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 27
    207662556 Hex. Flange Screw M6 X 25
    Hex. Flange Screw M6 X 25
  • 28
    233261466 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 29
    503193182 Lower Support, Center Shock
    Lower Support, Center Shock
  • 30
    207602587 Hexagonal Flanged Screw
    Hexagonal Flanged Screw
  • 31
    232500416 Elastic Stop Nut M10
    Elastic Stop Nut M10
  • 32
    205504544 Socket Screw
    Socket Screw
  • 33
    234001410 Flat Washer 10 mm
    Flat Washer 10 mm
  • 34
    503192927 Shaft Passivated
    Shaft Passivated
  • 35
    605355263 Retainer Strap
    Retainer Strap
  • 36
    503193098 Black Wheel Ass'y, 200 mm. Includes 36 To 38
    Black Wheel Ass'y, 200 mm. Includes 36 To 38
  • 37
    503190396 Ball Bearing
    Ball Bearing
  • 38
    415129371 Retaining Ring
    Retaining Ring
  • 39
    503191741 Wheel 200, Black. Includes 39 To 41
    Wheel 200, Black. Includes 39 To 41
  • 40
    503190396 Ball Bearing
    Ball Bearing
  • 41
    415129371 Retaining Ring
    Retaining Ring
  • 42
    503193352 Rear Shaft
    Rear Shaft
  • 43
    250000019 Hex. Screw With Nylon
    Hex. Screw With Nylon
  • 44
    503190428 Rear Wheel Spacer
    Rear Wheel Spacer
  • 45
    503190682 Labyrinth Seal
    Labyrinth Seal
  • 46
    503193631 Spacer
    Spacer
  • 47
    503190439 Washer
    Washer
  • 48
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 49
    205484546 Socket Head Screw M8 X 45
    Socket Head Screw M8 X 45
  • 50
    230100044 Hex. Screw M10 X 100
    Hex. Screw M10 X 100
  • 51
    5341633 Lug
    Lug
  • 52
    232006414 Hex. Nut M10
    Hex. Nut M10
  • 53
    232500416 Elastic Stop Nut M10
    Elastic Stop Nut M10
  • 54
    503192927 Shaft Passivated
    Shaft Passivated
  • 55
    205504544 Socket Screw
    Socket Screw
  • 56
    234001410 Flat Washer 10 mm
    Flat Washer 10 mm
  • 57
    503192771 Black - Wheel Cap
    Black - Wheel Cap
  • 58
    503193735 Black Cap
    Black Cap
  • 59
    503192771 Black - Wheel Cap
    Black - Wheel Cap
