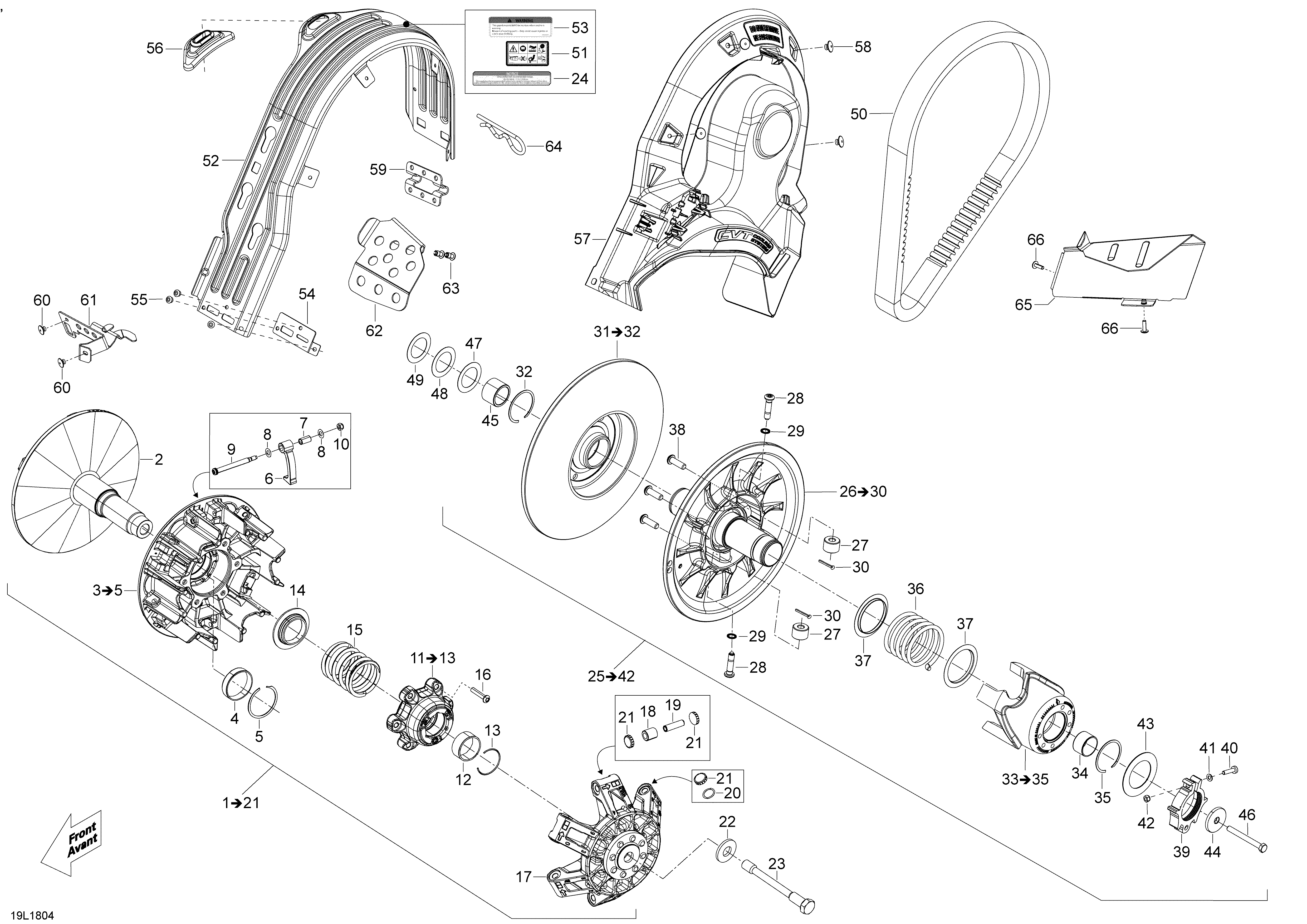

05- Pulley - 69 Ranger - 1200 4-TEC для BRP Lynx 69 Ranger 1200 4-TEC - 2018
-
№АртикулНазвание
-
2417224091 Fixed Flange Ass'yFixed Flange Ass'y
-
3417224044 Flange-Slid.AssyFlange-Slid.Assy
-
6417224035 Ramp 748Ramp 748
-
8417223660 Stopper WasherStopper Washer
-
9417223694 Ramp AxleRamp Axle
-
10232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
11417223650 Spring Cover Ass'ySpring Cover Ass'y
-
14417223752 Seat SpringSeat Spring
-
15417223745 Clutch SpringClutch Spring
-
16250000580 Torx Screw M6 X 30Torx Screw M6 X 30
-
17417223865 Governor Cup Ass'yGovernor Cup Ass'y
-
18417223767 RollerRoller
-
19417223257 Roller AxleRoller Axle
-
20293300185 O-RingO-Ring
-
21417223919 Slider ShoeSlider Shoe
-
22250200144 Conical Spring Washer M14Conical Spring Washer M14
-
23417300432 Pulley Drive BoltPulley Drive Bolt
-
24516005503 Decal, EnglishDecal, English
-
26417127466 Fixed Flange Ass'yFixed Flange Ass'y
-
31417127366 Slider Flange Ass'ySlider Flange Ass'y
-
33417127477 Cam Ass'yCam Ass'y
-
36417127039 Black SpringBlack Spring
-
37417127116 Swivel AbutmentSwivel Abutment
-
38250000784 Torx Screw M8 X 50Torx Screw M8 X 50
-
39415129604 Calibration Ass'yCalibration Ass'y
-
40205052544 Socket Screw M5 X 25Socket Screw M5 X 25
-
41234051410 Flat Washer M5Flat Washer M5
-
42232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
43417127155 WasherWasher
-
44517302322 Strength WasherStrength Washer
-
45417300453 SleeveSleeve
-
46207287544 Hex. Cap Screw M8 X 75Hex. Cap Screw M8 X 75
-
47417300252 SpacerSpacer
-
48417300265 SpacerSpacer
-
49504112000 ShimShim
-
50417300383 Drive BeltDrive Belt
-
51516003919 Warning DecalWarning Decal
-
52417300382 Belt GuardBelt Guard
-
53516006900 Security Label, Belt GuardSecurity Label, Belt Guard
-
54417300380 ReinforcementReinforcement
-
55390909200 Avex RivetAvex Rivet
-
56417300381 GuideGuide
-
57417300441 CVT Air DuctCVT Air Duct
-
58293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
58293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
59417300413 Belt Guard BracketBelt Guard Bracket
-
60293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
61417300373 Belt Guard BracketBelt Guard Bracket
-
62518327035 Brake Hose CoverBrake Hose Cover
-
63293150163 Rivet Hucklok 4,8 mm HKLP-R6-5GATRivet Hucklok 4,8 mm HKLP-R6-5GAT
-
64114045200 Hair PinHair Pin
-
65417300464 Air Duct. Includes 550 to 550,001Air Duct. Includes 550 to 550,001
-
67605636003 Clinch Nut M6 HexsertClinch Nut M6 Hexsert
-
66250000722 Torx Screw M6 X 20Torx Screw M6 X 20
