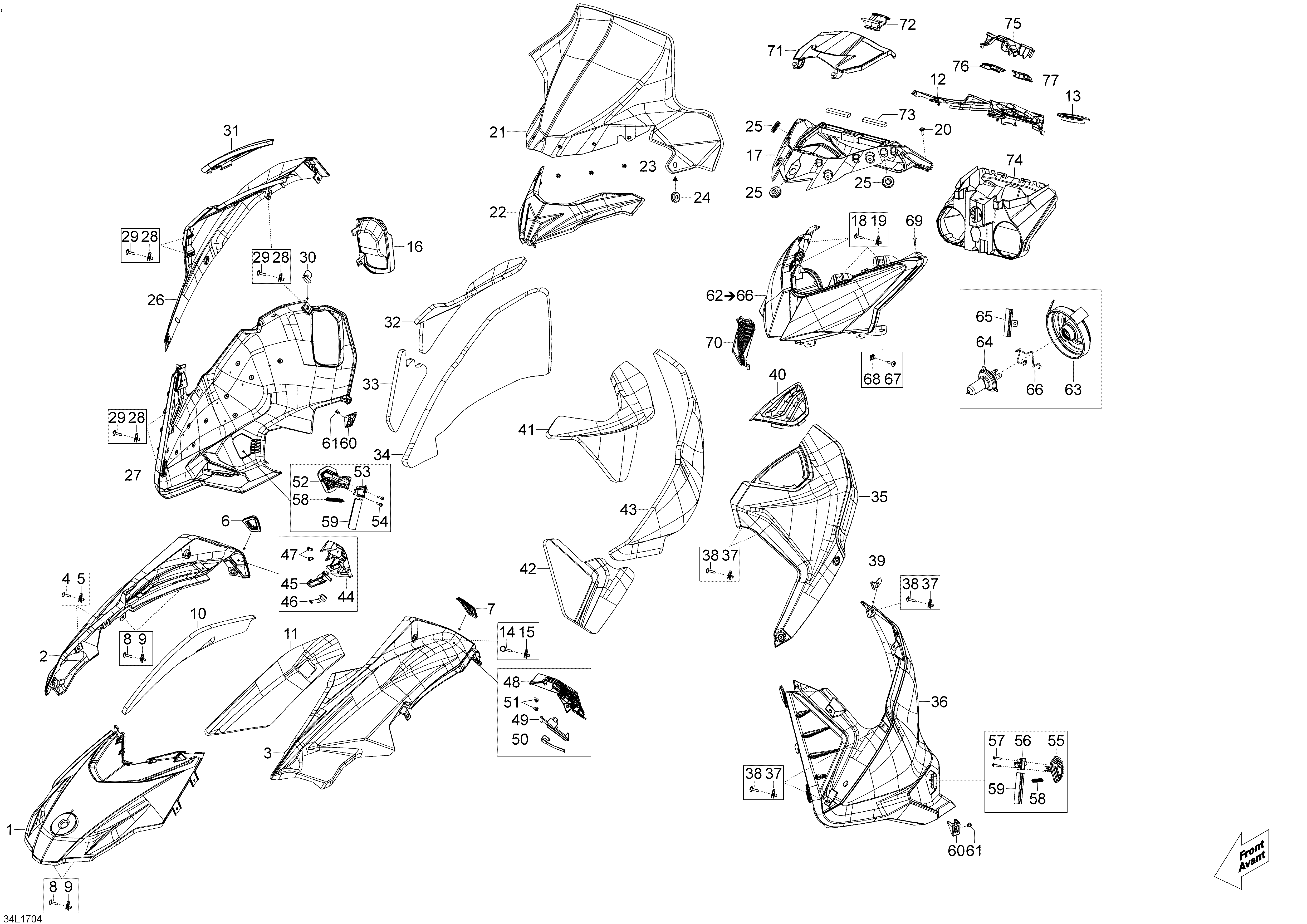

09- Hood And Windshield для BRP Lynx XTRIM STD - 2017
-
№АртикулНазвание
-
1517305566 HoodHood
-
2517305418 RH HoodRH Hood
-
3517305419 LH HoodLH Hood
-
4250000528 Torx Truss Screw M5 x 20Torx Truss Screw M5 x 20
-
5250000079 Panel Nut M5Panel Nut M5
-
6517305344 RH Rubber ButtonRH Rubber Button
-
7517305345 LH Rubber ButtonLH Rubber Button
-
8250000528 Torx Truss Screw M5 x 20Torx Truss Screw M5 x 20
-
9250000079 Panel Nut M5Panel Nut M5
-
10517305481 FoamFoam
-
11517305482 FoamFoam
-
12517305205 Console RearConsole Rear
-
13517304518 Console NutConsole Nut
-
14517305531 KnobKnob
-
15250000079 Panel Nut M5Panel Nut M5
-
16517305061 Black RH ConsoleBlack RH Console
-
17517305511 Indicator SupportIndicator Support
-
18250000528 Torx Truss Screw M5 x 20Torx Truss Screw M5 x 20
-
19250000079 Panel Nut M5Panel Nut M5
-
20250000587 Torx Truss Screw M5 x 26Torx Truss Screw M5 x 26
-
21860201070 Windshield (410) Ass'yWindshield (410) Ass'y
-
22517305307 SupportSupport
-
23732610072 Push NutPush Nut
-
24517302841 GrommetGrommet
-
25517303756 GrommetGrommet
-
26517305425 White RH PanelWhite RH Panel
-
27517305249 Black RH PanelBlack RH Panel
-
28250000079 Panel Nut M5Panel Nut M5
-
29250000528 Torx Truss Screw M5 x 20Torx Truss Screw M5 x 20
-
30517305515 Guide PlateGuide Plate
-
31517305251 GrillGrill
-
32517306358 FoamFoam
-
33517306359 FoamFoam
-
34517306360 FoamFoam
-
35517305426 White LH PanelWhite LH Panel
-
36517305253 Black LH PanelBlack LH Panel
-
37250000079 Panel Nut M5Panel Nut M5
-
38250000528 Torx Truss Screw M5 x 20Torx Truss Screw M5 x 20
-
39517305515 Guide PlateGuide Plate
-
40517305254 GrillGrill
-
41517305488 FoamFoam
-
42517305489 FoamFoam
-
43517305490 FoamFoam
-
44517305315 RH Lock BodyRH Lock Body
-
45517306019 Lock ArmLock Arm
-
46517305317 Lock SpringLock Spring
-
47205951046 Socket HD Screw M5 x 10Socket HD Screw M5 x 10
-
48517305319 LH Lock BodyLH Lock Body
-
49517306019 Lock ArmLock Arm
-
50517305317 Lock SpringLock Spring
-
51205951046 Socket HD Screw M5 x 10Socket HD Screw M5 x 10
-
52517305760 RH Side Panel Bottom LockRH Side Panel Bottom Lock
-
53517305761 RH Bottom Lock Fixing PartRH Bottom Lock Fixing Part
-
54250000451 Torx Flange Screw K40 x 20Torx Flange Screw K40 x 20
-
55517305758 LH Side Panel Bottom LockLH Side Panel Bottom Lock
-
56517305759 LH Bottom Lock Fixing PartLH Bottom Lock Fixing Part
-
57250000451 Torx Flange Screw K40 x 20Torx Flange Screw K40 x 20
-
58517305535 Side Panel Bottom Lock SpringSide Panel Bottom Lock Spring
-
59517305452 Bottom Lock SleeveBottom Lock Sleeve
-
60517305323 Side Panel SupportSide Panel Support
-
61390909100 RivetRivet
-
62517306180 Headlamp. Includes 62 To 66Headlamp. Includes 62 To 66
-
63219400070 CapCap
-
64515176274 H4 Halogen Bulb (60/55W, 12V)H4 Halogen Bulb (60/55W, 12V)
-
65219800282 HolderHolder
-
66219800281 SpringSpring
-
67250000528 Torx Truss Screw M5 x 20Torx Truss Screw M5 x 20
-
68250100035 Jack Nut M5Jack Nut M5
-
69250000725 Plastite Screw M4 x 16Plastite Screw M4 x 16
-
70517305350 CapCap
-
71517304912 CoverCover
-
72517304917 LatchLatch
-
73517305157 SealSeal
-
74517305095 TrunkTrunk
-
75517304970 SupportSupport
-
76517305180 CapCap
-
77517305148 CapCap
