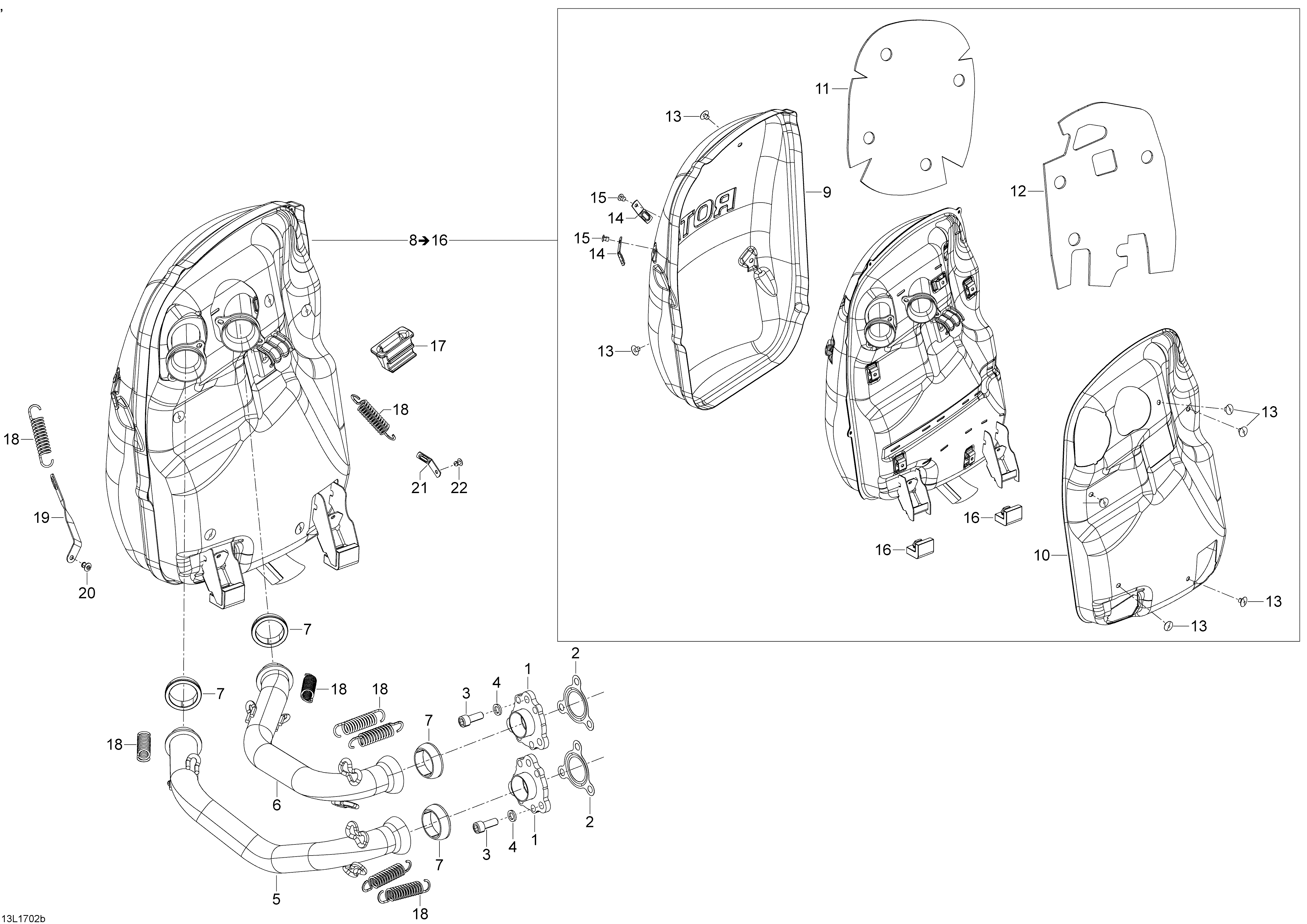

01- Exhaust System 600 ACE для BRP Lynx XTRIM STD - 2017
-
№АртикулНазвание
-
1514054673 Exhaust ManifoldExhaust Manifold
-
2514055112 GasketGasket
-
3250000414 Socket HD Screw M8 x 22Socket HD Screw M8 x 22
-
4250200111 Flat WasherFlat Washer
-
5514054625 Exhaust Tube (PTO Side)Exhaust Tube (PTO Side)
-
6514054731 Exhaust Tube (MAG Side)Exhaust Tube (MAG Side)
-
7514054807 Exhaust GasketExhaust Gasket
-
8514055327 Muffler Ass'y. Includes 8 To 16Muffler Ass'y. Includes 8 To 16
-
9514055325 RH Heat ShieldRH Heat Shield
-
10514054645 LH Heat ShieldLH Heat Shield
-
11514054769 RH Insulating WoolRH Insulating Wool
-
12514054770 LH Insulating WoolLH Insulating Wool
-
13390910000 Pop Rivet 3/16''Pop Rivet 3/16''
-
14514054522 Spring BracketSpring Bracket
-
15390909200 RivetRivet
-
16514054496 Lower StopperLower Stopper
-
17514054737 Upper StopperUpper Stopper
-
18415107100 SpringSpring
-
19514055030 Spring BracketSpring Bracket
-
20390909100 RivetRivet
-
21514055037 Spring BracketSpring Bracket
-
22390909100 RivetRivet
