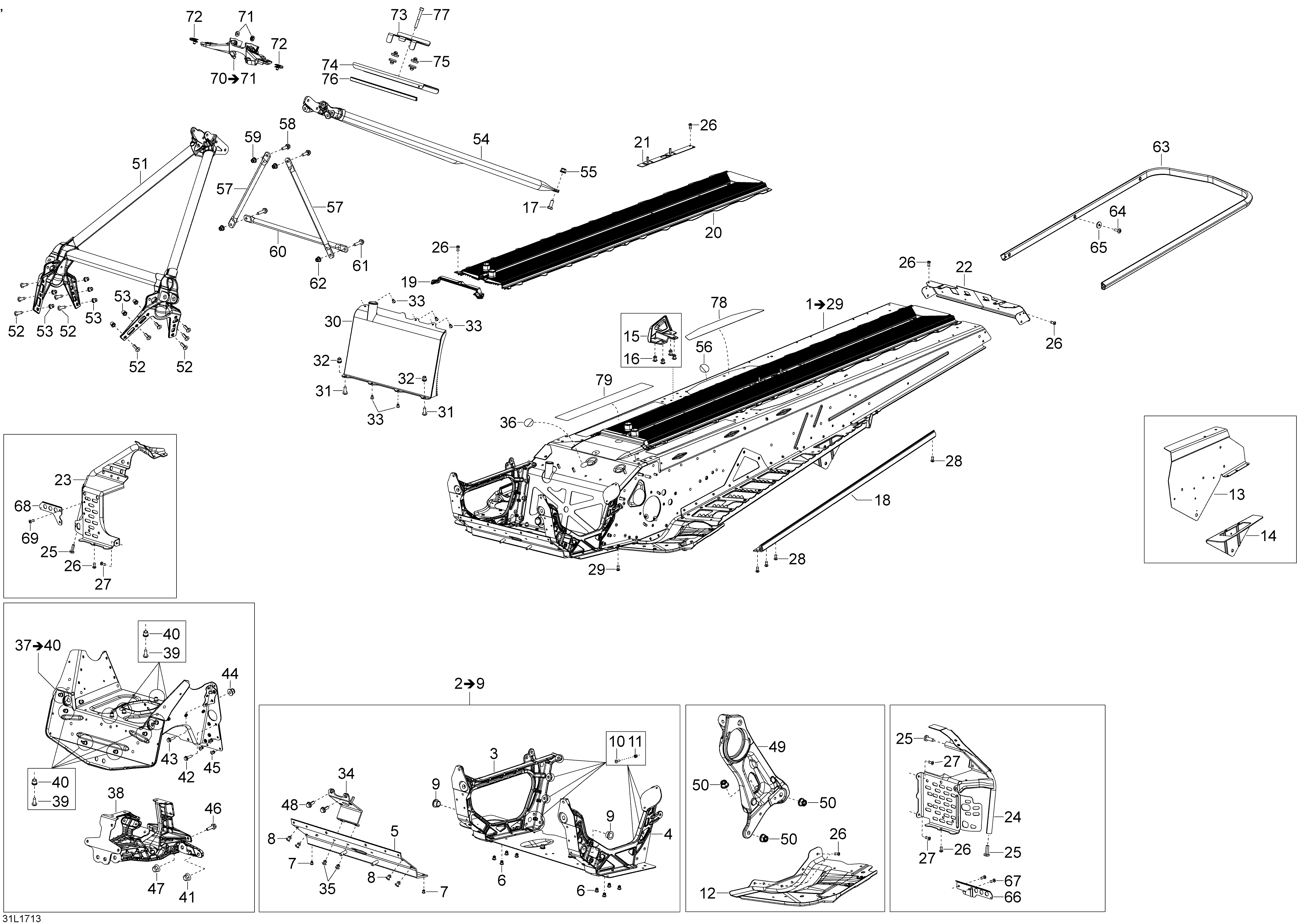

09- Frame для BRP Lynx BoonDocker DS, 2017 - 2017

  • №
    Артикул
    Название
  • 1
    518328866 Green Frame 3900. Includes 1 To 29, Model-3900
    Green Frame 3900. Includes 1 To 29, Model-3900
  • 1
    518328863 Green Frame 4100. Includes 1 To 29, Model-4100
    Green Frame 4100. Includes 1 To 29, Model-4100
  • 1
    518329158 Black Frame 3900. Includes 1 To 29, Model-3900
    Black Frame 3900. Includes 1 To 29, Model-3900
  • 1
    518329159 Black Frame 4100. Includes 1 To 29, Model-4100
    Black Frame 4100. Includes 1 To 29, Model-4100
  • 2
    518327646 E Module. Includes 2 To 9
    E Module. Includes 2 To 9
  • 3
    518326795 RH Member
    RH Member
  • 4
    518326796 LH Member
    LH Member
  • 5
    518326198 Front Member
    Front Member
  • 6
    390909100 Rivet
    Rivet
  • 7
    293150120 Rivet
    Rivet
  • 8
    293150119 Rivet
    Rivet
  • 9
    505072690 Cushion
    Cushion
  • 10
    207662044 Hex. Flange Screw M6 x 20
    Hex. Flange Screw M6 x 20
  • 11
    233261414 Elastic Flange Nut M6
    Elastic Flange Nut M6
  • 13
    518328718 LH Rear Arm Support. Model-3900
    LH Rear Arm Support. Model-3900
  • 13
    518328944 LH Rear Arm Support. Model-4100
    LH Rear Arm Support. Model-4100
  • 13
    518328719 RH Rear Arm Support. Model-3900
    RH Rear Arm Support. Model-3900
  • 13
    518328945 RH Rear Arm Support. Model-4100
    RH Rear Arm Support. Model-4100
  • 15
    518328436 RH Rear Base
    RH Rear Base
  • 15
    518328435 LH Rear Base
    LH Rear Base
  • 16
    293150147 Rivet
    Rivet
  • 17
    207182086 Hex. Cap Screw M8 x 20
    Hex. Cap Screw M8 x 20
  • 18
    518328898 Side Profile
    Side Profile
  • 19
    518326656 Seal
    Seal
  • 20
    518326692 Rear Radiator 154''. Model-3900
    Rear Radiator 154''. Model-3900
  • 20
    518326735 Rear Radiator 163''. Model-4100
    Rear Radiator 163''. Model-4100
  • 22
    518327240 Rear Cap
    Rear Cap
  • 23
    518328940 RH Stirrup
    RH Stirrup
  • 24
    518328528 LH Stirrup
    LH Stirrup
  • 25
    250000752 Pan HD Torx Screw M8 x 25
    Pan HD Torx Screw M8 x 25
  • 26
    390909200 Rivet
    Rivet
  • 27
    390909100 Rivet
    Rivet
  • 28
    293150119 Rivet
    Rivet
  • 29
    293150096 Rivet
    Rivet
  • 30
    518326485 Front Radiator
    Front Radiator
  • 31
    207662044 Hex. Flange Screw M6 x 20
    Hex. Flange Screw M6 x 20
  • 32
    233261414 Elastic Flange Nut M6
    Elastic Flange Nut M6
  • 33
    390909200 Rivet
    Rivet
  • 34
    518325943 MAG Support
    MAG Support
  • 35
    293150119 Rivet
    Rivet
  • 36
    518325560 Adhesive Patch
    Adhesive Patch
  • 37
    518328394 Cross Member. Includes 37 To 40
    Cross Member. Includes 37 To 40
  • 38
    518327487 Support
    Support
  • 39
    207662044 Hex. Flange Screw M6 x 20
    Hex. Flange Screw M6 x 20
  • 40
    233261414 Elastic Flange Nut M6
    Elastic Flange Nut M6
  • 41
    233281414 Elastic Flange Nut M8
    Elastic Flange Nut M8
  • 42
    210262050 Forming Screw M6 x 20
    Forming Screw M6 x 20
  • 43
    207662544 Hex. Flange Screw M6 x 25. Model-std
    Hex. Flange Screw M6 x 25. Model-std
  • 43
    207563034 Hex. Flange Screw M6 x 30. Model-Air Radiator
    Hex. Flange Screw M6 x 30. Model-Air Radiator
  • 44
    233261414 Elastic Flange Nut M6
    Elastic Flange Nut M6
  • 45
    293150179 Rivet
    Rivet
  • 46
    207662044 Hex. Flange Screw M6 x 20
    Hex. Flange Screw M6 x 20
  • 47
    233261414 Elastic Flange Nut M6
    Elastic Flange Nut M6
  • 48
    207661644 Hex. Flange Screw M6 x 16
    Hex. Flange Screw M6 x 16
  • 49
    518327460 Pulley Support
    Pulley Support
  • 50
    233281414 Elastic Flange Nut M8
    Elastic Flange Nut M8
  • 51
    518327565 Front Member
    Front Member
  • 52
    207662044 Hex. Flange Screw M6 x 20
    Hex. Flange Screw M6 x 20
  • 53
    233261414 Elastic Flange Nut M6
    Elastic Flange Nut M6
  • 54
    518327237 Black Rear Member. Black Edition
    Black Rear Member. Black Edition
  • 54
    518328982 Yellow Rear Member. STD
    Yellow Rear Member. STD
  • 55
    233281414 Elastic Flange Nut M8
    Elastic Flange Nut M8
  • 56
    518325560 Adhesive Patch
    Adhesive Patch
  • 57
    518325114 Support
    Support
  • 58
    207662056 Hex. Flange Screw M6 x 20
    Hex. Flange Screw M6 x 20
  • 59
    233261416 Elastic Flange Nut M6
    Elastic Flange Nut M6
  • 60
    518325115 Upper Column
    Upper Column
  • 61
    207662556 Hex. Flange Screw M6 x 25
    Hex. Flange Screw M6 x 25
  • 62
    233261416 Elastic Flange Nut M6
    Elastic Flange Nut M6
  • 63
    518327555 Black Rear Bumper
    Black Rear Bumper
  • 64
    250000779 Torx Truss Screw M6 x 18
    Torx Truss Screw M6 x 18
  • 65
    224061201 Flat Washer
    Flat Washer
  • 66
    518327613 LH Spring Support Plate
    LH Spring Support Plate
  • 67
    293150103 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 68
    518327614 RH Spring Support Plate
    RH Spring Support Plate
  • 69
    390909200 Rivet
    Rivet
  • 70
    518327145 Support. Includes 70 To 71
    Support. Includes 70 To 71
  • 72
    250000079 Panel Nut M5
    Panel Nut M5
  • 73
    513033746 Upper Support Plate
    Upper Support Plate
  • 74
    513033747 Lower Support Plate
    Lower Support Plate
  • 75
    605452114 Rubber Plug
    Rubber Plug
  • 77
    205065044 Socket HD Screw M6 x 50
    Socket HD Screw M6 x 50
  • 78
    516006448 Fuel Tank Protection Decal
    Fuel Tank Protection Decal
  • 79
    516007041 Fuel Tank Protection Decal
    Fuel Tank Protection Decal
