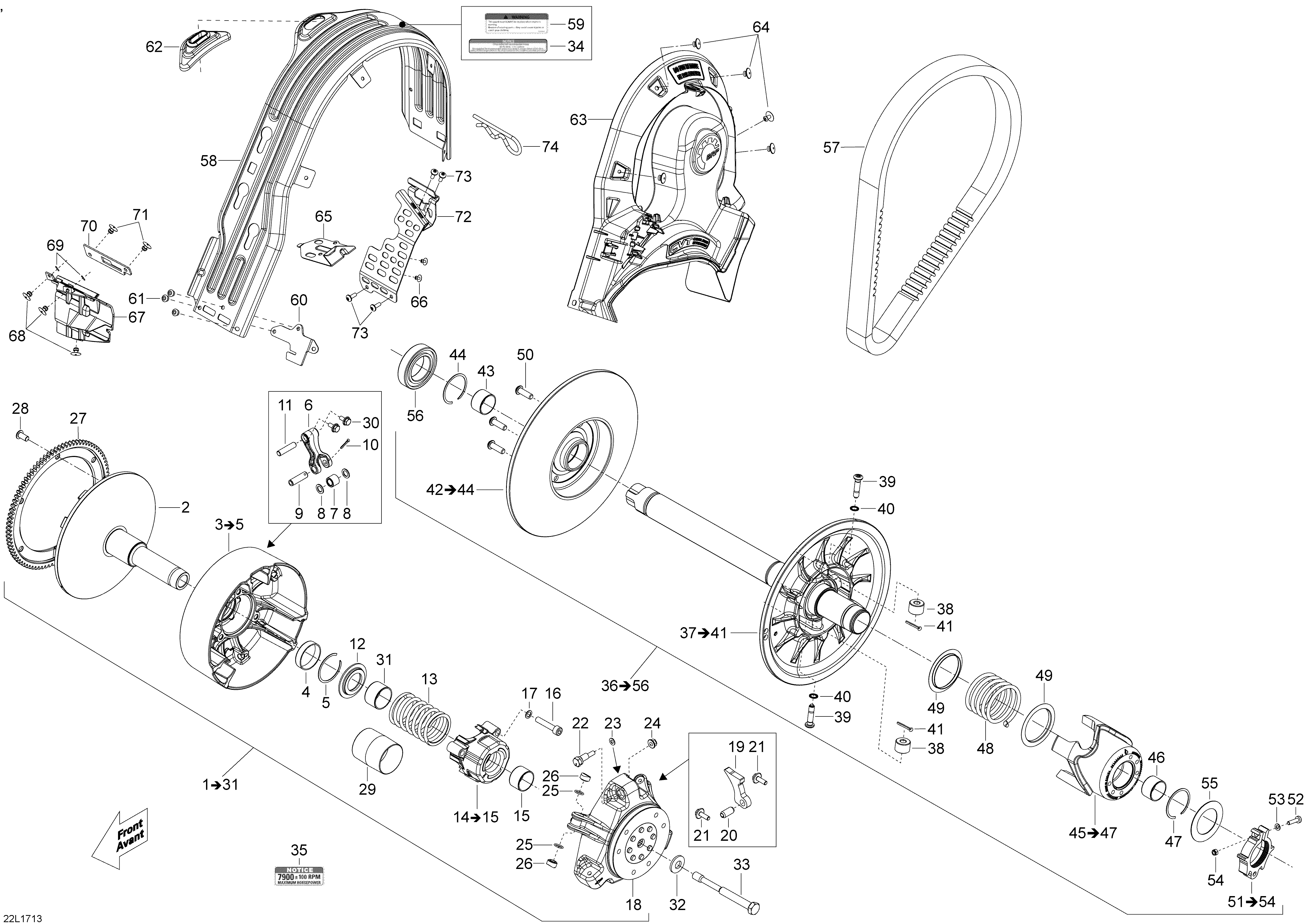

05- Pulley System для BRP Lynx BoonDocker DS, 2017 - 2017
-
№АртикулНазвание
-
2417223232 Fixed Flange Ass'yFixed Flange Ass'y
-
3417223444 Sliding Flange Ass'y. Includes 3 To 5Sliding Flange Ass'y. Includes 3 To 5
-
4417223086 BushingBushing
-
5293370071 Double CirclipDouble Circlip
-
6417222671 Lever Ass?yLever Ass?y
-
7417222947 Roller Ass?yRoller Ass?y
-
8417004302 Stopper WasherStopper Washer
-
9417004308 PinPin
-
10250400060 Cotter PinCotter Pin
-
11417223164 Lever AxleLever Axle
-
12417222312 Spring SeatSpring Seat
-
13414949500 Spring (Purple / Pink, 712-1557N / 160-350lbs)Spring (Purple / Pink, 712-1557N / 160-350lbs)
-
14417222759 Spring Cover Ass'y. Includes 14 To 15Spring Cover Ass'y. Includes 14 To 15
-
15417009204 BushingBushing
-
16205084044 Socket Head Screw M8 x 40Socket Head Screw M8 x 40
-
17250200009 Lock Washer M8Lock Washer M8
-
18417223666 Governor CupGovernor Cup
-
19417223098 Ramp (441)Ramp (441)
-
20250400050 Spring Pin M10 x 22Spring Pin M10 x 22
-
21250000418 Hex. Flange Screw M6 x 18, Scotch GripHex. Flange Screw M6 x 18, Scotch Grip
-
22417223501 Calibration ScrewCalibration Screw
-
23417005600 WasherWasher
-
24233261414 Hex. Flange Elastic Nut M6Hex. Flange Elastic Nut M6
-
25732401030 O RingO Ring
-
26417223271 Slider ShoeSlider Shoe
-
27417223739 Ring GearRing Gear
-
28250000533 Hex. Flange Screw M8 x 16, Scotch GripHex. Flange Screw M8 x 16, Scotch Grip
-
29417009205 GuardGuard
-
30250000416 Hex. Flange Screw M6 x 16, Scotch GripHex. Flange Screw M6 x 16, Scotch Grip
-
31417223471 BushingBushing
-
32250200144 Spring WasherSpring Washer
-
33417300409 Drive Pulley BoltDrive Pulley Bolt
-
34516005503 Drive Pulley Bolt DecalDrive Pulley Bolt Decal
-
35516005507 RPM DecalRPM Decal
-
37417127389 Fixed Flange Ass'y. Includes 37 To 41Fixed Flange Ass'y. Includes 37 To 41
-
38417127016 RollerRoller
-
39417127294 StudStud
-
40250200009 Lock Washer M8Lock Washer M8
-
41250400063 Spring Pin M3 x 30Spring Pin M3 x 30
-
42417127317 Sliding Flange Ass'y. Includes 42 To 44Sliding Flange Ass'y. Includes 42 To 44
-
43417127318 BushingBushing
-
44293370049 CirclipCirclip
-
45417127386 Cam Ass'y (40?). Includes 45 To 47Cam Ass'y (40?). Includes 45 To 47
-
46417127318 BushingBushing
-
47293370049 CirclipCirclip
-
48417127118 Spring (Blue, 700-985N / 157-221lbs)Spring (Blue, 700-985N / 157-221lbs)
-
49417127116 Swivel AbutmentSwivel Abutment
-
50250000757 Button Head Torx Screw M8 x 25Button Head Torx Screw M8 x 25
-
51415129604 Pulley Adjuster Ass'y. Includes 51 To 54Pulley Adjuster Ass'y. Includes 51 To 54
-
52205052544 Socket HD Screw M5 x 25Socket HD Screw M5 x 25
-
53234051410 Flat Washer M5Flat Washer M5
-
54232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
55417127155 WasherWasher
-
56504152574 Ball BearingBall Bearing
-
57417300391 BeltBelt
-
58417300357 Belt GuardBelt Guard
-
59516006900 Belt Guard Security LabelBelt Guard Security Label
-
60417300423 ReinforcementReinforcement
-
61390909200 RivetRivet
-
62417300381 GuideGuide
-
63417300441 CVT Air DuctCVT Air Duct
-
64293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
65417300445 StopperStopper
-
66390909200 RivetRivet
-
67417300430 Front SupportFront Support
-
68293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
69517225900 Flat WasherFlat Washer
-
70417300421 ReinforcementReinforcement
-
71390909100 RivetRivet
-
72417300448 Belt Guard BracketBelt Guard Bracket
-
73250000742 Torx Truss Screw M5 x 14Torx Truss Screw M5 x 14
-
74114045200 Hair PinHair Pin
