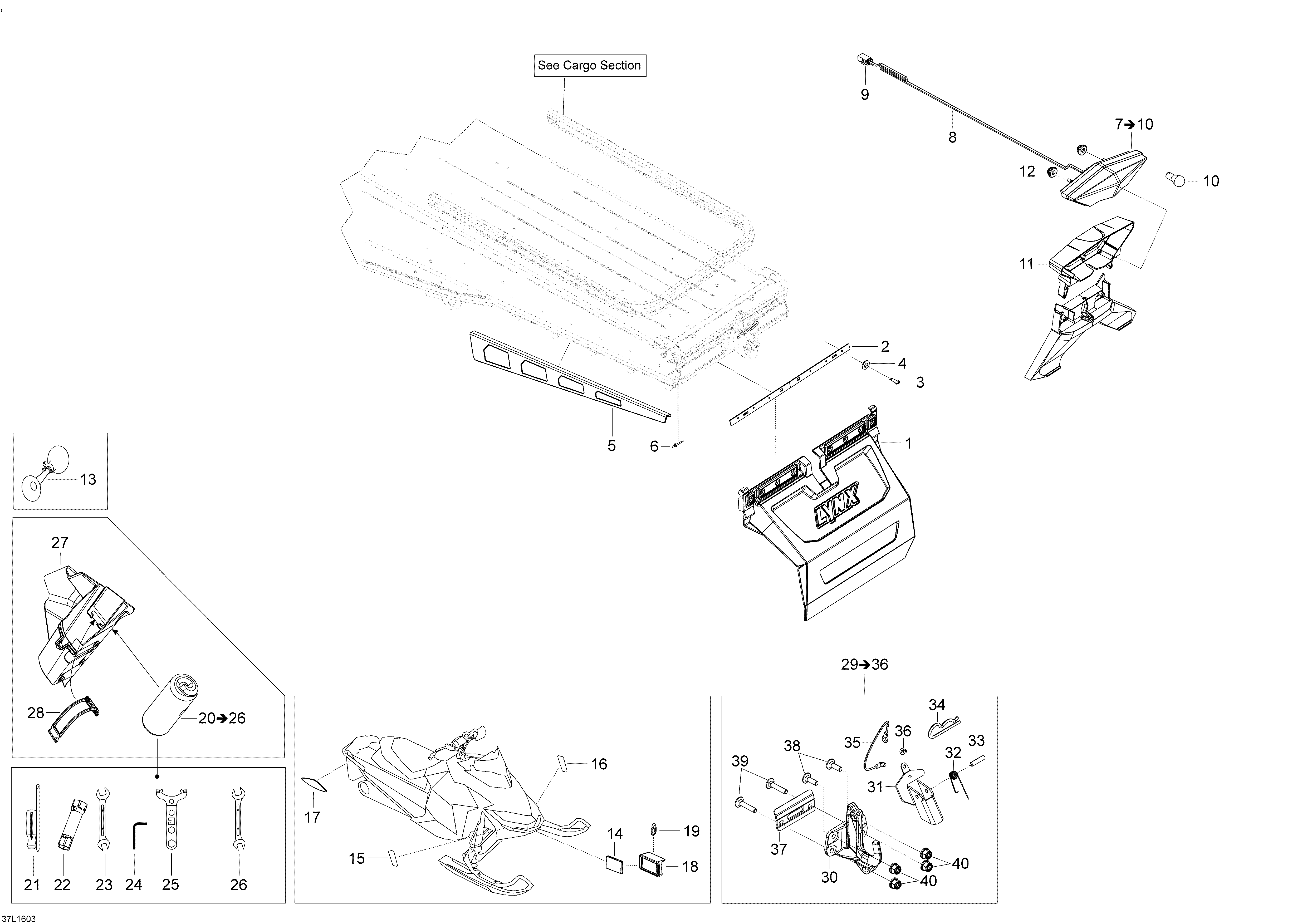

09- Utilities для BRP Lynx 69 YETI (4-Stroke) - 2016
-
№АртикулНазвание
-
1520001408 Snow GuardSnow Guard
-
2520001022 Fastening PlateFastening Plate
-
3250000676 Forming Screw M5 x 16Forming Screw M5 x 16
-
4250200025 Washer M5Washer M5
-
5520000693 RH ProtectorRH Protector
-
5520000694 LH ProtectorLH Protector
-
6293150163 RivetRivet
-
7520000848 Rear Light. Includes 7 To 10Rear Light. Includes 7 To 10
-
8520000849 Wiring HarnessWiring Harness
-
9515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
10520000758 BulbBulb
-
11511000764 Rear Light SupportRear Light Support
-
12705003666 GrommetGrommet
-
13549011291 HornHorn
-
1421118 Bright ReflectorBright Reflector
-
15520001600 Yellow RH ReflectorYellow RH Reflector
-
16520001601 Yellow LH ReflectorYellow LH Reflector
-
17705002423 Amber ReflectorAmber Reflector
-
18520000871 Reflector SupportReflector Support
-
1927120 Tie RapTie Rap
-
20529000078 Tool Kit. Includes 20 To 26Tool Kit. Includes 20 To 26
-
21529000004 Screw DriverScrew Driver
-
22529000046 Socket Wrench (16/21mm)Socket Wrench (16/21mm)
-
23529000002 Fork Wrench (10/13mm)Fork Wrench (10/13mm)
-
24520001142 KeyKey
-
25520001442 WrenchWrench
-
2634017 Wrench (17/19mm)Wrench (17/19mm)
-
27520000894 Tool Kit RackTool Kit Rack
-
28520000528 LatchLatch
-
29520001475 Hitch Ass'y. Includes 29 To 36Hitch Ass'y. Includes 29 To 36
-
3341012 Spring Pin 6 x 30Spring Pin 6 x 30
-
3441029 Cotter SpringCotter Spring
-
36390909100 Avex RivetAvex Rivet
-
37520000727 PlatePlate
-
38207782544 Screw M8 x 25Screw M8 x 25
-
39207784044 Screw M8 x 40Screw M8 x 40
-
40233281414 Elastic Flange Nut M8Elastic Flange Nut M8
