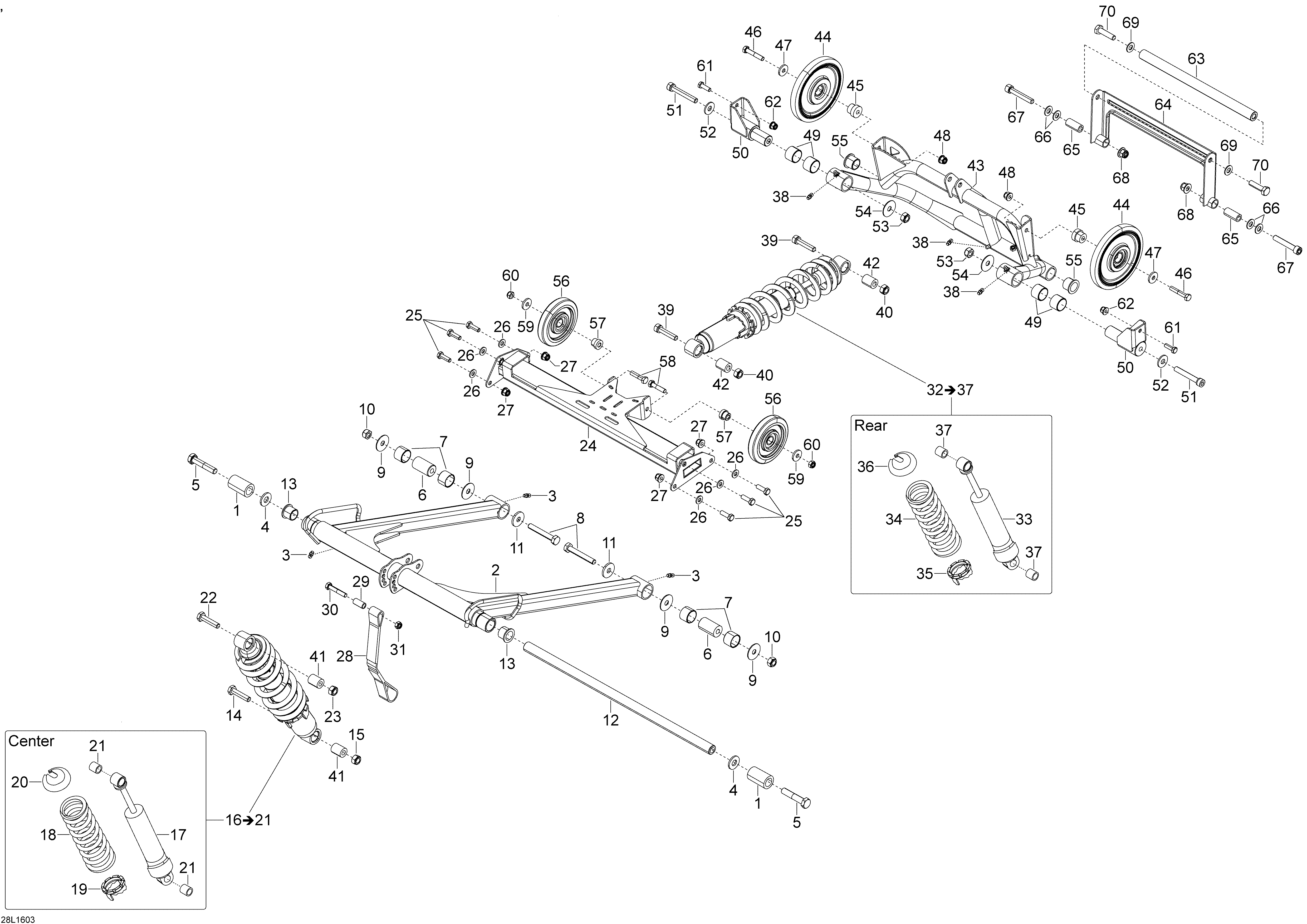

08- Rear Suspension B для BRP Lynx 69 YETI (4-Stroke) - 2016
-
№АртикулНазвание
-
1503193309 SleeveSleeve
-
2503193092 Front ArmFront Arm
-
3408200700 Grease FittingGrease Fitting
-
4250200131 Washer Spring Conical M12Washer Spring Conical M12
-
5250000555 Hex. Cap Screw M12 x 60Hex. Cap Screw M12 x 60
-
6605354157 ShaftShaft
-
7503193700 BushingBushing
-
8207007044 Hex. Cap Screw M10 x 70Hex. Cap Screw M10 x 70
-
9605355801 WasherWasher
-
10232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
11503183300 WasherWasher
-
12503193174 Upper ShaftUpper Shaft
-
1331024 CushionCushion
-
14250000549 Hex. Cap Screw M10 x 45Hex. Cap Screw M10 x 45
-
15232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
17503192369 ShockShock
-
18503192358 Spring (237mm - 65N/mm)Spring (237mm - 65N/mm)
-
19230078 Spring SeatSpring Seat
-
20230076 Spring SeatSpring Seat
-
2131094 Glide BearingGlide Bearing
-
22207004544 Hex. Cap Screw M10 x 45Hex. Cap Screw M10 x 45
-
23232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
24503192687 Middle BeamMiddle Beam
-
25250000556 Hex. Cap Screw M8 x 25Hex. Cap Screw M8 x 25
-
26503192494 WasherWasher
-
27233281414 Elastic Flange Nut M8Elastic Flange Nut M8
-
28503193780 Limiter StrapLimiter Strap
-
29605455335 SleeveSleeve
-
30207084544 Hex. Cap Screw M8 x 45Hex. Cap Screw M8 x 45
-
31232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
33503192371 ShockShock
-
34503192432 Spring (280mm - 75N/mm)Spring (280mm - 75N/mm)
-
35230078 Spring SeatSpring Seat
-
36230076 Spring SeatSpring Seat
-
3731094 Glide BearingGlide Bearing
-
38408200700 Grease FittingGrease Fitting
-
3940134 Allen Screw M10 x 45Allen Screw M10 x 45
-
40232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
415446652 BushingBushing
-
425446652 BushingBushing
-
43503193868 Rear ArmRear Arm
-
44503193852 Idler Wheel 133mmIdler Wheel 133mm
-
45605454461 SleeveSleeve
-
46207084544 Hex. Cap Screw M8 x 45Hex. Cap Screw M8 x 45
-
4720077 WasherWasher
-
48233281414 Elastic Flange Nut M8Elastic Flange Nut M8
-
49503193700 BushingBushing
-
50503193878 Rear Arm SupportRear Arm Support
-
51250000543 Socket HD Screw M10 x 120Socket HD Screw M10 x 120
-
52503191926 WasherWasher
-
53232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
54605355801 WasherWasher
-
5531024 CushionCushion
-
56572043500 Idler WheelIdler Wheel
-
57503193330 SleeveSleeve
-
58207083544 Hex. Cap Screw M8 x 35Hex. Cap Screw M8 x 35
-
5920077 WasherWasher
-
60232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
61250000556 Hex. Cap Screw M8 x 25Hex. Cap Screw M8 x 25
-
62233281414 Elastic Flange Nut M8Elastic Flange Nut M8
-
63503192397 ShaftShaft
-
64503192346 Rear SwingRear Swing
-
65503192341 Rear Swing ShaftRear Swing Shaft
-
66234001410 Washer Flat M10Washer Flat M10
-
67205006044 Socket HD. Screw M10 x 60Socket HD. Screw M10 x 60
-
68233201414 Elastic Flange Nut M10Elastic Flange Nut M10
-
69234001410 Flat Washer M10Flat Washer M10
-
70207204044 Hex. Cap Screw M10 x 45Hex. Cap Screw M10 x 45
