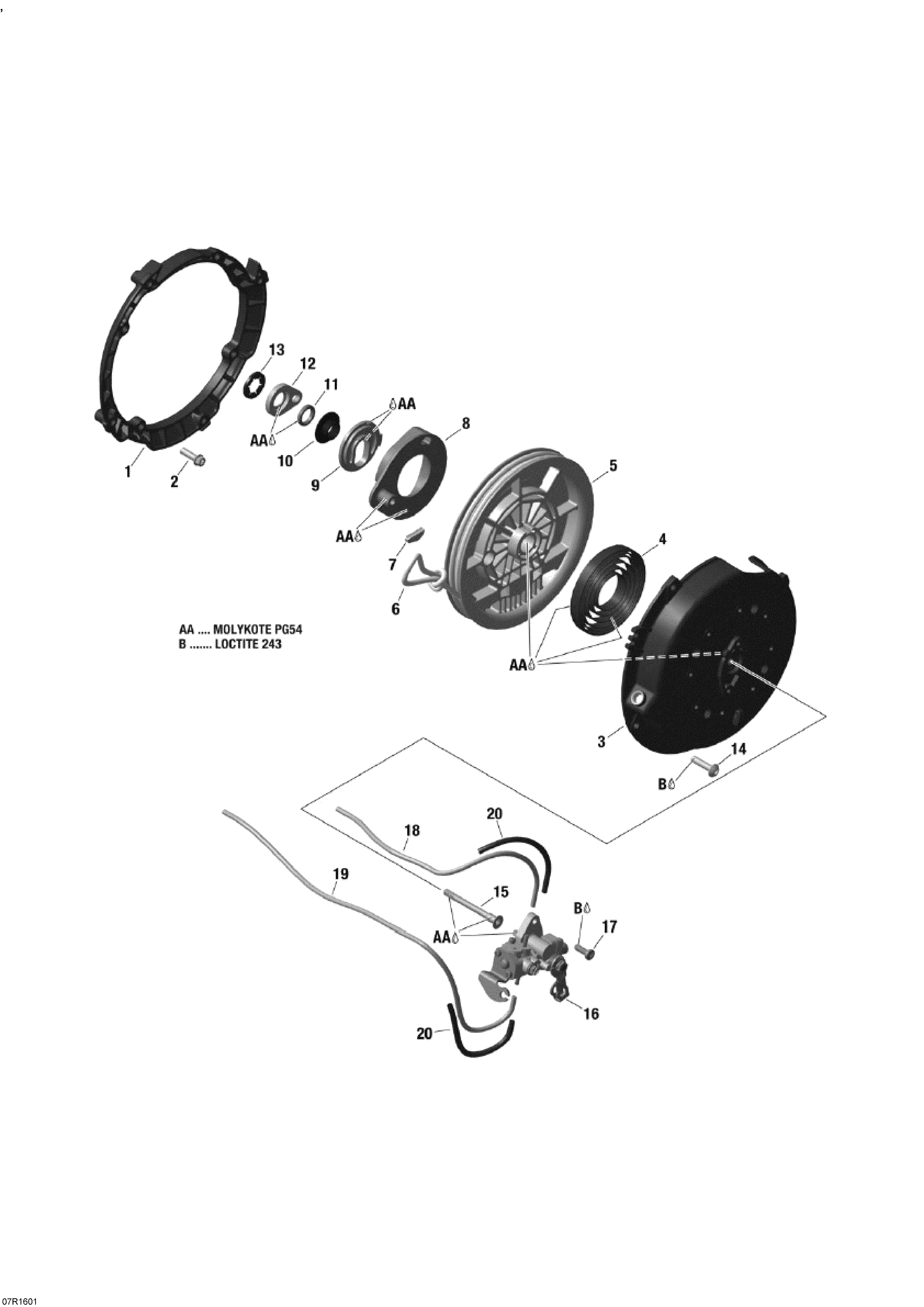

04- Rewind Starter And Oil Pump - 550F для BRP Lynx 59 YETI (2-Stroke) - 2016

  • №
    Артикул
    Название
  • 1
    420810955 Connecting Flange
    Connecting Flange
  • 2
    420440207 Torx Flange Screw M6 x 20. Tightening Torque 6-7 Nm
    Torx Flange Screw M6 x 20. Tightening Torque 6-7 Nm
  • -
    420890175 Rewind Starter Ass'y. Includes 3 To 12
    Rewind Starter Ass'y. Includes 3 To 12
  • 4
    420939115 Rewind Spring Ass'y
    Rewind Spring Ass'y
  • 5
    420852480 Rope Sheave
    Rope Sheave
  • 6
    412500200 Starter Rope (2200mm)
    Starter Rope (2200mm)
  • 7
    420852070 Key Clamp
    Key Clamp
  • 8
    420852296 Pawl
    Pawl
  • 9
    420852640 Pawl Lock
    Pawl Lock
  • 10
    420847926 Step Collar
    Step Collar
  • 11
    420250400 O-Ring
    O-Ring
  • 12
    420852520 Lock Lever
    Lock Lever
  • 13
    420845560 Locking Element
    Locking Element
  • 14
    420940431 Plastite Screw M6 x 25. Tightening Torque 7-8 Nm
    Plastite Screw M6 x 25. Tightening Torque 7-8 Nm
  • 15
    420820090 Oil Pump Shaft
    Oil Pump Shaft
  • 16
    420892291 Oil Pump Ass'y
    Oil Pump Ass'y
  • 17
    420841971 Plastite Screw 5.5 x 16. Tightening Torque 4-5 Nm
    Plastite Screw 5.5 x 16. Tightening Torque 4-5 Nm
  • 18
    414413800 Oil Line (300mm)
    Oil Line (300mm)
  • 19
    414413800 Oil Line (440mm)
    Oil Line (440mm)
  • 20
    420960728 Isolating Hose (120mm)
    Isolating Hose (120mm)
