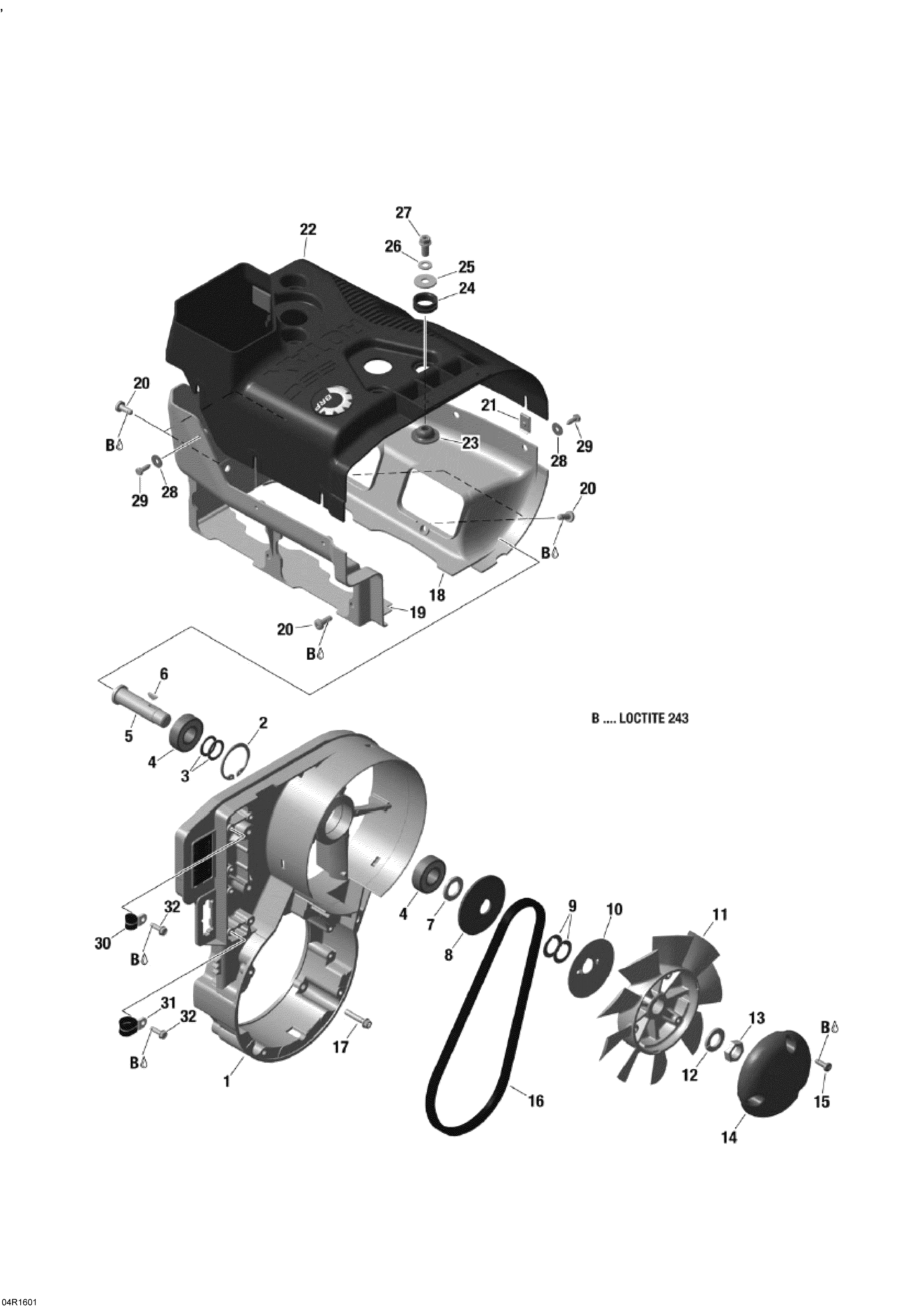

01- Fan Housing - 550F для BRP Lynx 59 YETI (2-Stroke) - 2016

  • №
    Артикул
    Название
  • 1
    420912230 Fan Housing
    Fan Housing
  • 2
    420945880 Retaining Ring
    Retaining Ring
  • 3
    420244585 Shim
    Shim
  • 4
    420832161 Ball Bearing
    Ball Bearing
  • 5
    420937941 Fan Shaft
    Fan Shaft
  • 6
    420246015 Woodruff Key
    Woodruff Key
  • 7
    420827650 Distance Sleeve
    Distance Sleeve
  • 8
    420980496 Belt Disk
    Belt Disk
  • 9
    420827080 Shim 0.5mm
    Shim 0.5mm
  • 9
    420827082 Shim 0.2mm
    Shim 0.2mm
  • 10
    420980523 Protection Washer
    Protection Washer
  • 11
    420866294 Fan
    Fan
  • 12
    420945756 Lock Washer
    Lock Washer
  • 13
    420942289 Nut M16. Tightening Torque 45-50 Nm
    Nut M16. Tightening Torque 45-50 Nm
  • 14
    420975900 Fan Cover
    Fan Cover
  • 15
    420841971 Screw 5.5 x 16. Tightening Torque 4-5 Nm
    Screw 5.5 x 16. Tightening Torque 4-5 Nm
  • 16
    420980514 V-Belt
    V-Belt
  • 17
    420440647 Torx Screw M6 x 30. Tightening Torque 9-11 Nm
    Torx Screw M6 x 30. Tightening Torque 9-11 Nm
  • 18
    420811392 Lower Cowl (Exhaust)
    Lower Cowl (Exhaust)
  • 19
    420812605 Lower Cowl (Intake)
    Lower Cowl (Intake)
  • 20
    420640324 Taptite Screw M6 x 16. Tightening Torque 7-8 Nm
    Taptite Screw M6 x 16. Tightening Torque 7-8 Nm
  • 21
    420842390 Spring Nut
    Spring Nut
  • 22
    420910837 Upper Cowl Ass'y
    Upper Cowl Ass'y
  • 23
    420827817 Cup Washer
    Cup Washer
  • 24
    420460210 Rubber Bushing
    Rubber Bushing
  • 25
    420227935 Washer
    Washer
  • 26
    420945752 Lock Washer
    Lock Washer
  • 27
    420440852 Screw M8 x 16. Tightening Torque 13-15 Nm
    Screw M8 x 16. Tightening Torque 13-15 Nm
  • 28
    420926185 Washer
    Washer
  • 29
    417300006 Tapping Screw 4.8 x 16. Tightening Torque 2-3 Nm
    Tapping Screw 4.8 x 16. Tightening Torque 2-3 Nm
  • 30
    420851110 Cable Clamp
    Cable Clamp
  • 31
    420851250 Cable Clamp
    Cable Clamp
  • 32
    420941925 Taptite Screw M5 x 16. Tightening Torque 5-6 Nm
    Taptite Screw M5 x 16. Tightening Torque 5-6 Nm
