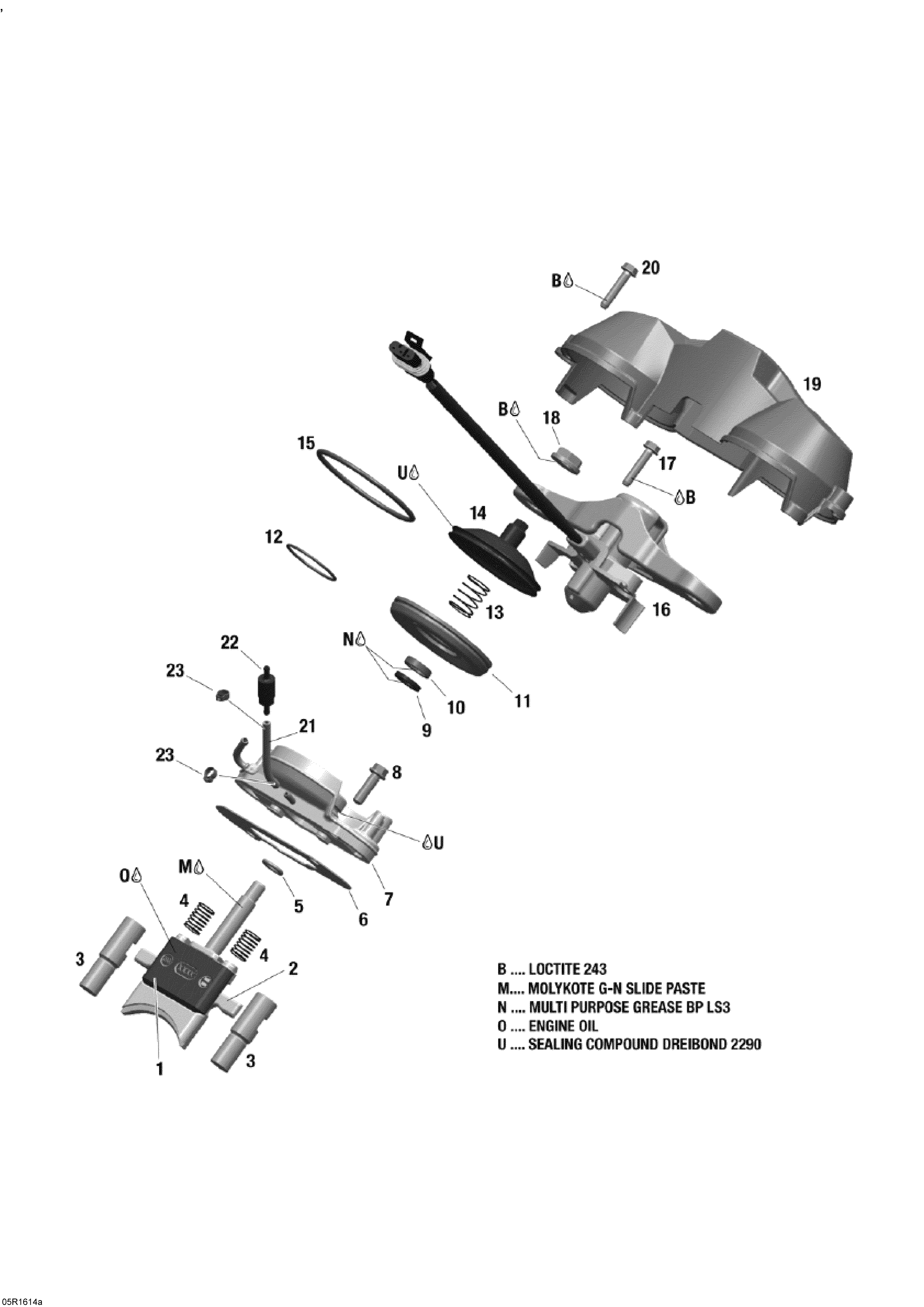

01- RAVE Valve - 600 E-TEC для BRP Lynx Xtrim Commander (2-Stroke) - 2016

  • №
    Артикул
    Название
  • 1
    420854980 Upper Exhaust Valve
    Upper Exhaust Valve
  • 2
    420854974 Lower Exhaust Valve
    Lower Exhaust Valve
  • 3
    420854990 Exhaust Valve
    Exhaust Valve
  • 4
    420238556 Spring
    Spring
  • 5
    420931765 O-Ring. Included In Gasket Kit
    O-Ring. Included In Gasket Kit
  • 6
    420430032 Gasket. Included In Gasket Kit
    Gasket. Included In Gasket Kit
  • 7
    420854888 Valve Housing
    Valve Housing
  • 8
    420440207 Flange Torx Screw M6 x 20. Tightening Torque 8-10 Nm
    Flange Torx Screw M6 x 20. Tightening Torque 8-10 Nm
  • 9
    420431380 Gasket Ring. Included In Gasket Kit
    Gasket Ring. Included In Gasket Kit
  • 10
    420950730 Oil Seal. Included In Gasket Kit
    Oil Seal. Included In Gasket Kit
  • 11
    420260725 Bellows
    Bellows
  • 12
    420838255 Hose Spring
    Hose Spring
  • 13
    420238557 Spring
    Spring
  • 14
    420854442 Valve Cover
    Valve Cover
  • 15
    420939285 Hose Spring
    Hose Spring
  • 16
    420854089 Position Sensor With Valve Bar
    Position Sensor With Valve Bar
  • 17
    420841550 Tapping Screw M5 x 22. Tightening Torque 5-6 Nm
    Tapping Screw M5 x 22. Tightening Torque 5-6 Nm
  • 18
    420942190 Nut M12 x 1.5. Tightening Torque 6-8 Nm
    Nut M12 x 1.5. Tightening Torque 6-8 Nm
  • 19
    420910821 Rave Cover
    Rave Cover
  • 20
    420841550 Tapping Screw M5 x 22. Tightening Torque 5-6 Nm
    Tapping Screw M5 x 22. Tightening Torque 5-6 Nm
  • 21
    414413800 Oil Line
    Oil Line
  • 22
    404160200 Check Valve Ass’y
    Check Valve Ass’y
  • 23
    420851508 Clamp
    Clamp
