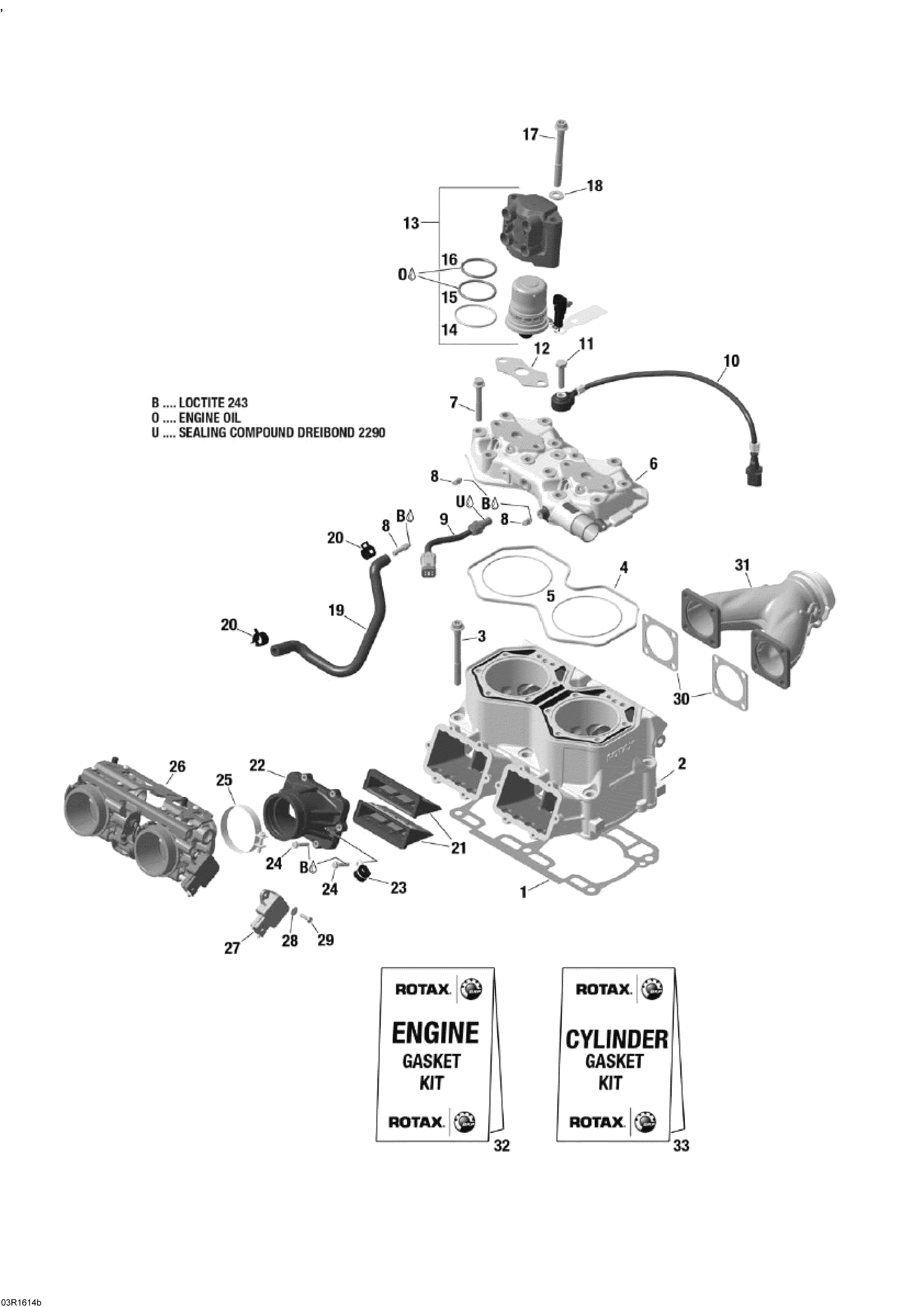

01- Cylinder And Cylinder Head - 800 E-TEC для BRP Lynx Xtrim Commander (2-Stroke) - 2016

  • №
    Артикул
    Название
  • 1
    420430080 Double Gasket 0.5 mm. Included In Gasket Kit
    Double Gasket 0.5 mm. Included In Gasket Kit
  • 1
    420430081 Double Gasket 0.6 mm. Included In Gasket Kit
    Double Gasket 0.6 mm. Included In Gasket Kit
  • 1
    420430082 Double Gasket 0.7 mm. Included In Gasket Kit
    Double Gasket 0.7 mm. Included In Gasket Kit
  • 1
    420430083 Double Gasket 0.8 mm. Included In Gasket Kit
    Double Gasket 0.8 mm. Included In Gasket Kit
  • 1
    420430084 Double Gasket 0.9 mm. Included In Gasket Kit
    Double Gasket 0.9 mm. Included In Gasket Kit
  • 2
    420413041 Cylinder
    Cylinder
  • 3
    420441187 Flange Torx Screw M10 x 90. Tightening Torque 48-52 Nm
    Flange Torx Screw M10 x 90. Tightening Torque 48-52 Nm
  • 4
    420430040 O-Ring. Included In Gasket Kit
    O-Ring. Included In Gasket Kit
  • 5
    420931410 O-Ring. Included In Gasket Kit
    O-Ring. Included In Gasket Kit
  • 6
    420623304 Head Cylinder Cover
    Head Cylinder Cover
  • 7
    420941627 Hex. Screw M8 x 56.5. Tightening Torque 28-30 Nm
    Hex. Screw M8 x 56.5. Tightening Torque 28-30 Nm
  • 8
    420924724 Hose Nipple. Tightening Torque 4-5 Nm
    Hose Nipple. Tightening Torque 4-5 Nm
  • 9
    515177813 Temperature Sensor
    Temperature Sensor
  • 10
    270000484 Knock Sensor
    Knock Sensor
  • 11
    207083544 Hex. Screw M8 x 35. Tightening Torque 22-25 Nm
    Hex. Screw M8 x 35. Tightening Torque 22-25 Nm
  • 12
    420430930 Gasket. Included In Gasket Kit
    Gasket. Included In Gasket Kit
  • 13
    512061054 Fuel Injector Ass'y. Includes 13 To 16
    Fuel Injector Ass'y. Includes 13 To 16
  • 14
    415129497 Crush Ring
    Crush Ring
  • 15
    415129498 O-Ring
    O-Ring
  • 16
    415129499 O-Ring
    O-Ring
  • 17
    420441187 Flange Torx Screw M10 x 90
    Flange Torx Screw M10 x 90
  • 18
    420927410 Washer
    Washer
  • 19
    420460867 Molded Hose
    Molded Hose
  • 20
    420853511 Clamp
    Clamp
  • 21
    420924798 Reed Valve Ass'y
    Reed Valve Ass'y
  • 22
    420867333 Intake Socket
    Intake Socket
  • 23
    420851250 Clamp
    Clamp
  • 24
    420841550 Hex. Taptite Screw M5 x 25. Tightening Torque 5-6 Nm
    Hex. Taptite Screw M5 x 25. Tightening Torque 5-6 Nm
  • 25
    420851815 Clamp
    Clamp
  • 26
    420889202 Throttle Body
    Throttle Body
  • 27
    420866120 Position Sensor
    Position Sensor
  • 28
    234041600 Washer
    Washer
  • 29
    208641660 Phillips Screw M4 x 16
    Phillips Screw M4 x 16
  • 30
    420430482 Gasket. Included In Gasket Kit
    Gasket. Included In Gasket Kit
  • 31
    420673373 Exhaust Manifold
    Exhaust Manifold
  • 32
    420893500 Engine Gasket Set
    Engine Gasket Set
  • 33
    420893505 Cylinder Gasket Set
    Cylinder Gasket Set
