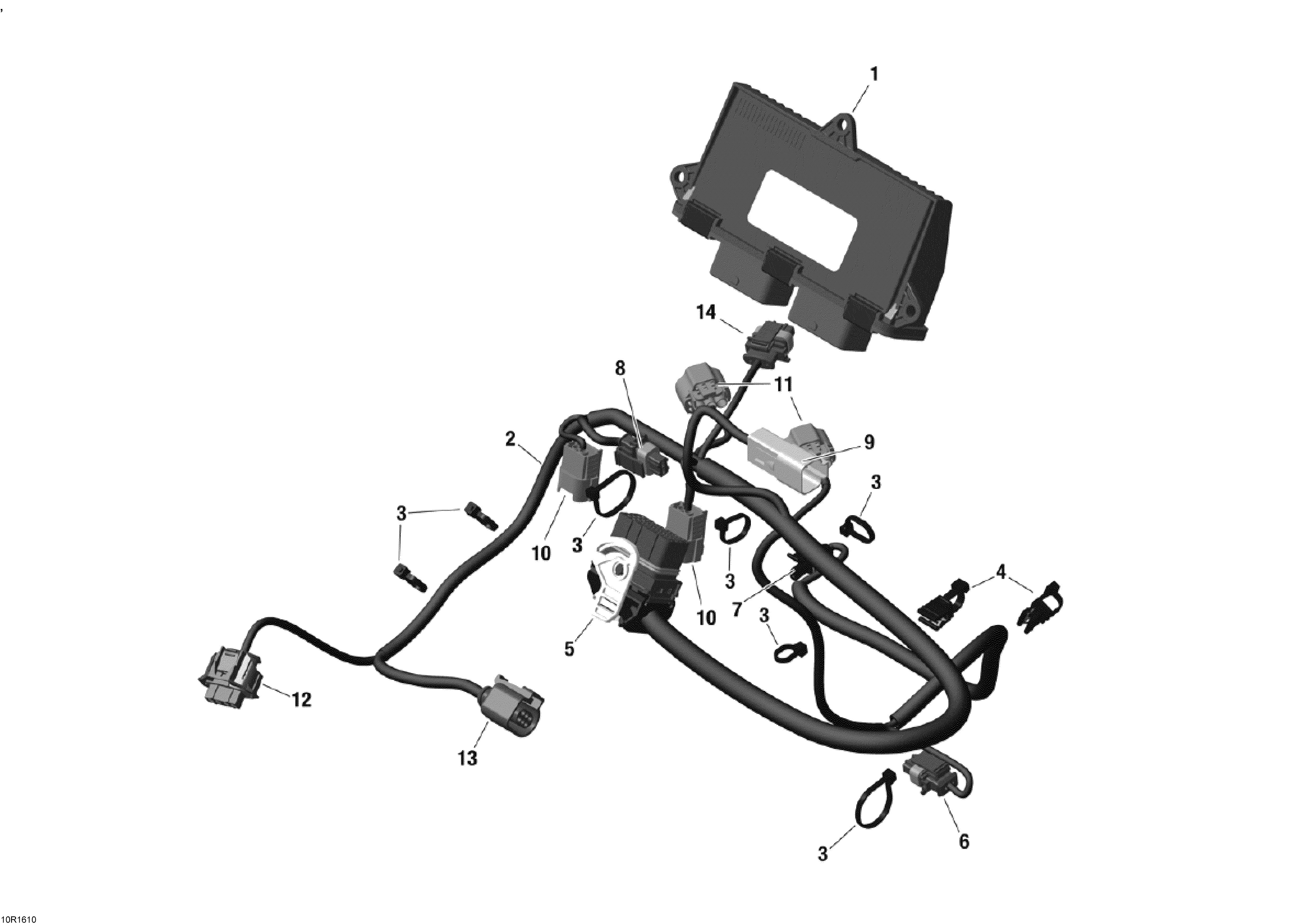

10- Engine Harness And Electronic Module - 600 ACE для BRP Lynx Xtrim (4-Stroke) - 2016
-
№АртикулНазвание
-
1420666763 Electronic BoxElectronic Box
-
2420864342 Wiring Harness Ass'yWiring Harness Ass'y
-
3420866714 Tie RapTie Rap
-
4420951650 Tie Rap With MountTie Rap With Mount
-
6278001005 Connector CTSConnector CTS
-
7278001012 Connector OPSConnector OPS
-
8278001005 Connector CPSConnector CPS
-
9278000635 Connector HICConnector HIC
-
12515176410 Connector TMAPSConnector TMAPS
-
13515177406 Connector ETCConnector ETC
