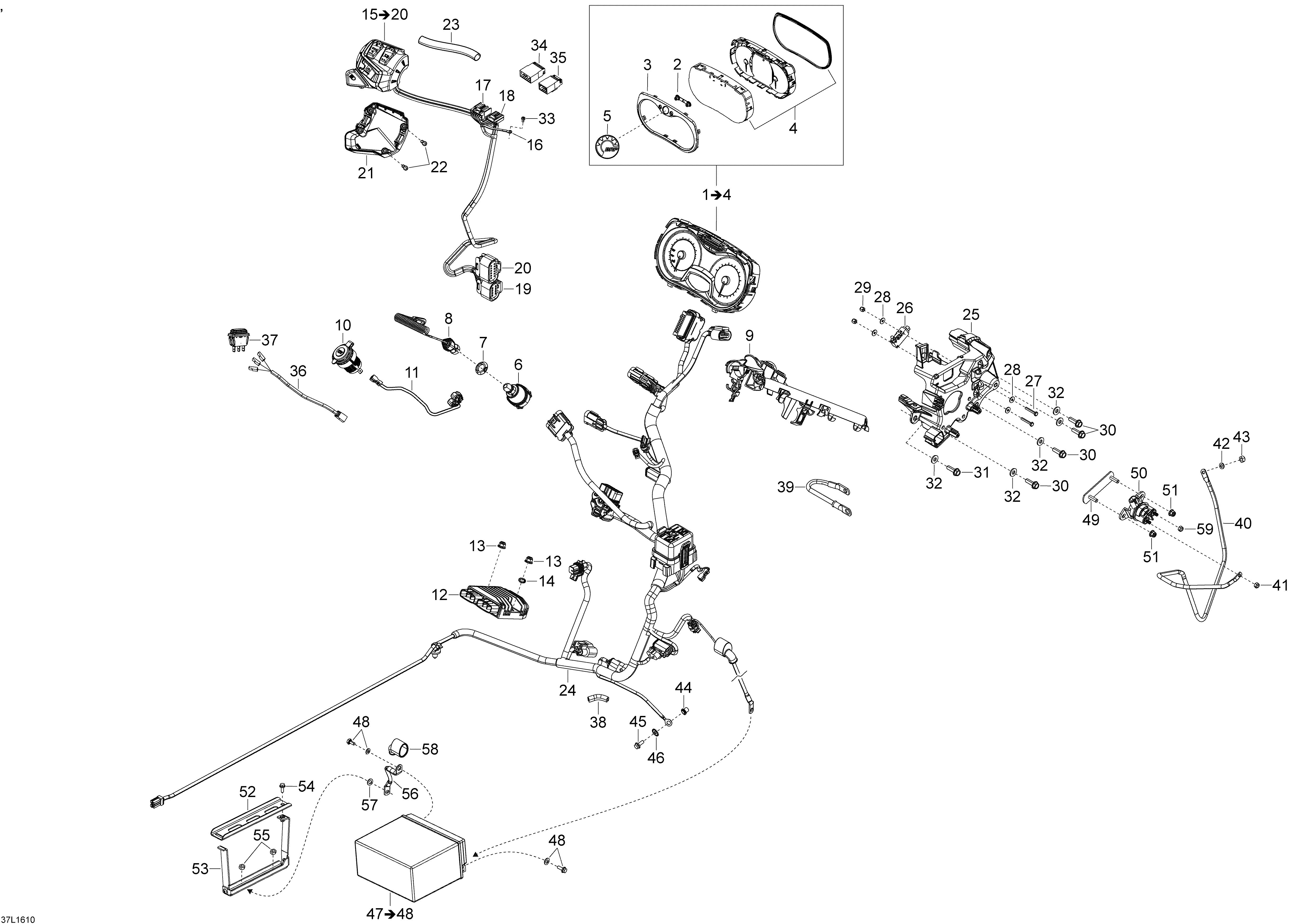

10- Electrical System для BRP Lynx Xtrim (4-Stroke) - 2016
-
№АртикулНазвание
-
1515177912 Speedometer. Includes 1 To 4Speedometer. Includes 1 To 4
-
2415129355 Speedometer ButtonSpeedometer Button
-
3415129370 Gauge RingGauge Ring
-
4415129349 LensLens
-
5516006224 BRP LogoBRP Logo
-
6515178049 DESS SwitchDESS Switch
-
7278002963 Safety Switch NutSafety Switch Nut
-
8515178044 DESS CapDESS Cap
-
8515178046 DESS Cap (Learning Key)DESS Cap (Learning Key)
-
9515177134 PlatePlate
-
10710001248 DC Power OutletDC Power Outlet
-
11515177400 Power Outlet HarnessPower Outlet Harness
-
12710001103 RegulatorRegulator
-
13233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
14234461608 Serrated Lock WasherSerrated Lock Washer
-
15515177676 LH Switch Housing. Includes 15 To 20LH Switch Housing. Includes 15 To 20
-
16515175504 Ring TerminalRing Terminal
-
17515175543 Female Housing, 6 CircuitsFemale Housing, 6 Circuits
-
17515175231 Female TerminalFemale Terminal
-
18515175845 Female Housing, 4 CircuitsFemale Housing, 4 Circuits
-
18515175231 Female TerminalFemale Terminal
-
19710001928 Female Housing, 8 CircuitsFemale Housing, 8 Circuits
-
20710001930 Female Housing, 12 CircuitsFemale Housing, 12 Circuits
-
21515177147 Housing PlateHousing Plate
-
22250000671 Torx Screw #8-18Torx Screw #8-18
-
23415129879 Protector TubeProtector Tube
-
24515178117 Main HarnessMain Harness
-
25515177347 PlatePlate
-
26515177460 Switch Ass'ySwitch Ass'y
-
27207132044 Hex. Cap Screw M3 x 20Hex. Cap Screw M3 x 20
-
28234032600 Flat WasherFlat Washer
-
29232531423 Elastic Stop Nut M3Elastic Stop Nut M3
-
30210262040 Forming Screw M6 x 20Forming Screw M6 x 20
-
31210262550 Forming Screw M6 x 25Forming Screw M6 x 25
-
32250200039 Flat WasherFlat Washer
-
33250000690 Forming Screw M5 x 10Forming Screw M5 x 10
-
34515175662 Male Housing, 6 CircuitsMale Housing, 6 Circuits
-
35515175846 Male Housing, 4 CircuitsMale Housing, 4 Circuits
-
36515177568 ECO HarnessECO Harness
-
37515177569 ECO Rocker SwitchECO Rocker Switch
-
39515177014 Ground WireGround Wire
-
40515177427 Battery WireBattery Wire
-
41232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
42234061410 Flat WasherFlat Washer
-
43232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
44233261414 Hex. Flange Elastic Nut M6Hex. Flange Elastic Nut M6
-
45207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
46250200041 Serrated Lock WasherSerrated Lock Washer
-
47296000295 Battery 18Ah. Includes 47 To 48Battery 18Ah. Includes 47 To 48
-
48250000282 Battery Fastener KitBattery Fastener Kit
-
49515177740 Relay SupportRelay Support
-
50278003012 Starter RelayStarter Relay
-
51233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
52518327281 Battery StrapBattery Strap
-
53518327282 Battery StrapBattery Strap
-
54207561644 Hex. Flange Screw M6 x 16Hex. Flange Screw M6 x 16
-
55233261416 Elastic Flange Nut M6Elastic Flange Nut M6
-
56515176780 Ground WireGround Wire
-
57234061410 Flat WasherFlat Washer
-
58570151000 Protection CapProtection Cap
-
59232561434 Elastic Stop Nut M6Elastic Stop Nut M6
