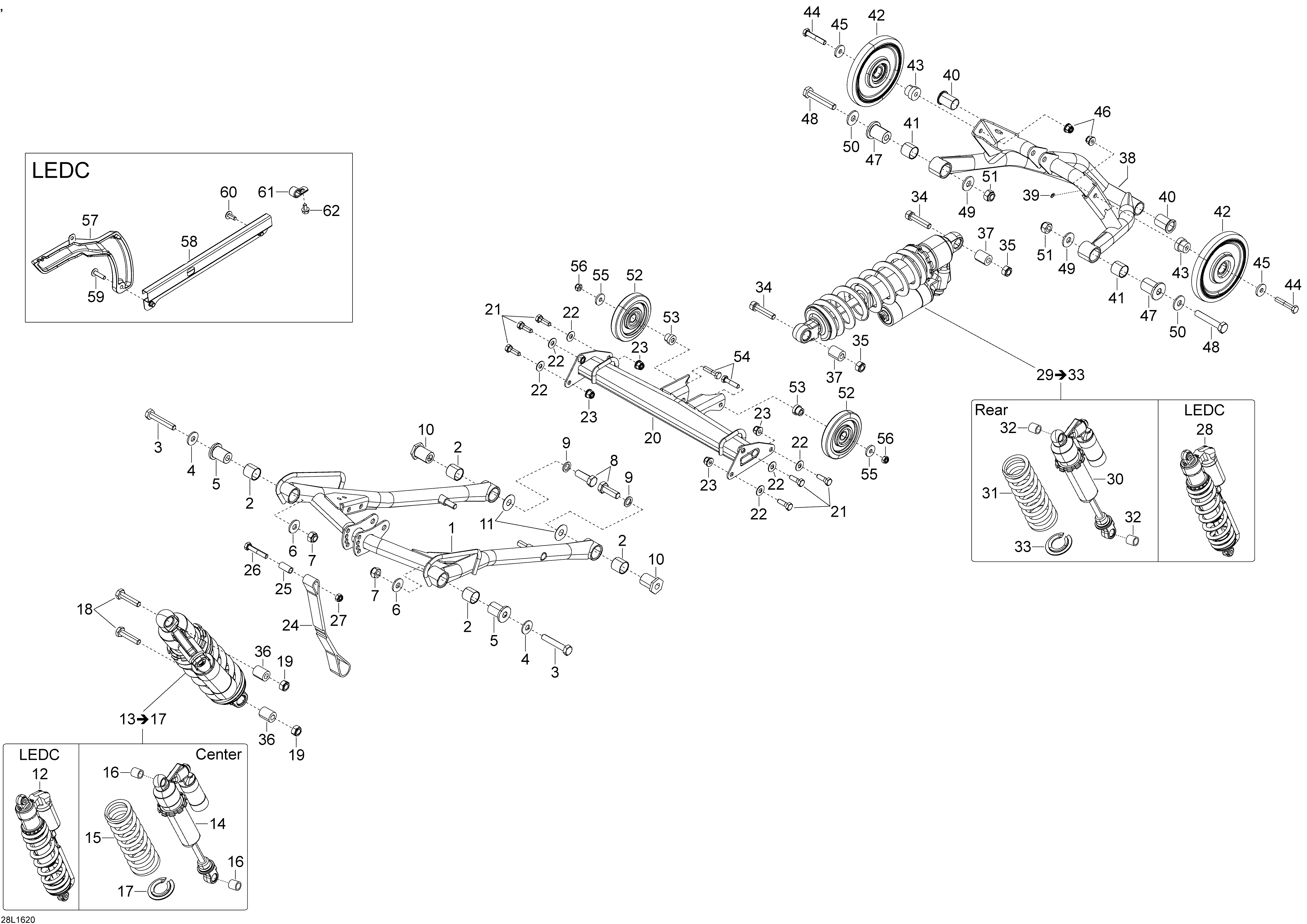

08- Rear Suspension B для BRP Lynx Rave RE (2-Stroke) - 2016
-
№АртикулНазвание
-
1503193561 Front Arm. Model-stdFront Arm. Model-std
-
1503194089 Front Arm. Model-LEDCFront Arm. Model-LEDC
-
2503191554 BushingBushing
-
3250000696 Hex. Cap Screw M10 x 60Hex. Cap Screw M10 x 60
-
4250200138 WasherWasher
-
5503190698 AxleAxle
-
6503191926 WasherWasher
-
7233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
8250000537 Hex. Cap Screw M12 x 35Hex. Cap Screw M12 x 35
-
9503192491 WasherWasher
-
10503191966 AxleAxle
-
11503190656 WasherWasher
-
12503194192 Center Shock Ass'y. Model-LEDCCenter Shock Ass'y. Model-LEDC
-
14503194402 ShockShock
-
15250500011 Spring (220mm - 55N/mm)Spring (220mm - 55N/mm)
-
1631094 Glide BearingGlide Bearing
-
17605354631 Spring LockSpring Lock
-
18207004544 Hex. Cap Screw M10 x 45Hex. Cap Screw M10 x 45
-
19232500416 Elastic Stop NutElastic Stop Nut
-
20503194090 Middle BeamMiddle Beam
-
21250000556 Hex. Cap Screw M8 x 25Hex. Cap Screw M8 x 25
-
22503192494 WasherWasher
-
23233281414 Elastic Flange Nut M8Elastic Flange Nut M8
-
24605355116 Limiter StrapLimiter Strap
-
25605455335 SleeveSleeve
-
26207084544 Hex. Cap Screw M8 x 45Hex. Cap Screw M8 x 45
-
27232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
28503194193 Rear Shock Ass'y. Model-LEDCRear Shock Ass'y. Model-LEDC
-
30503194404 ShockShock
-
31503193513 Spring (280mm - 60N/mm)Spring (280mm - 60N/mm)
-
3231094 Glide BearingGlide Bearing
-
33605354631 Spring LockSpring Lock
-
3440134 Socket HD Screw M10 x 45Socket HD Screw M10 x 45
-
35232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
365446652 Bushing. Model-stdBushing. Model-std
-
375446652 Bushing. Model-stdBushing. Model-std
-
38503193571 Rear ArmRear Arm
-
39408200700 Grease FittingGrease Fitting
-
40503191640 CushionCushion
-
41503191554 BushingBushing
-
42503193852 Idler Wheel 140mmIdler Wheel 140mm
-
43605454461 SleeveSleeve
-
44207084544 Hex. Cap Screw M8 x 45Hex. Cap Screw M8 x 45
-
4520077 WasherWasher
-
46233281414 Elastic Flange Nut M8Elastic Flange Nut M8
-
47503190698 AxleAxle
-
48250000696 Hex. Cap Screw M10 x 60Hex. Cap Screw M10 x 60
-
49503191926 WasherWasher
-
50503191926 WasherWasher
-
51233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
52572043500 Idler WheelIdler Wheel
-
53503193330 SleeveSleeve
-
54207083544 Hex. Cap Screw M8 x 35Hex. Cap Screw M8 x 35
-
5520077 WasherWasher
-
56232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
57503194034 Cable Cover. Model-LEDCCable Cover. Model-LEDC
-
58503194018 Cable Cover. Model-LEDCCable Cover. Model-LEDC
-
59250000807 Torx Truss Screw M6 x 25. Model-LEDCTorx Truss Screw M6 x 25. Model-LEDC
-
60250000721 Torx Truss Screw M6 x 16. Model-LEDCTorx Truss Screw M6 x 16. Model-LEDC
-
61518321570 Open Clamp. Model-LEDCOpen Clamp. Model-LEDC
-
62210261040 Forming Screw M6 x 10. Model-LEDCForming Screw M6 x 10. Model-LEDC
