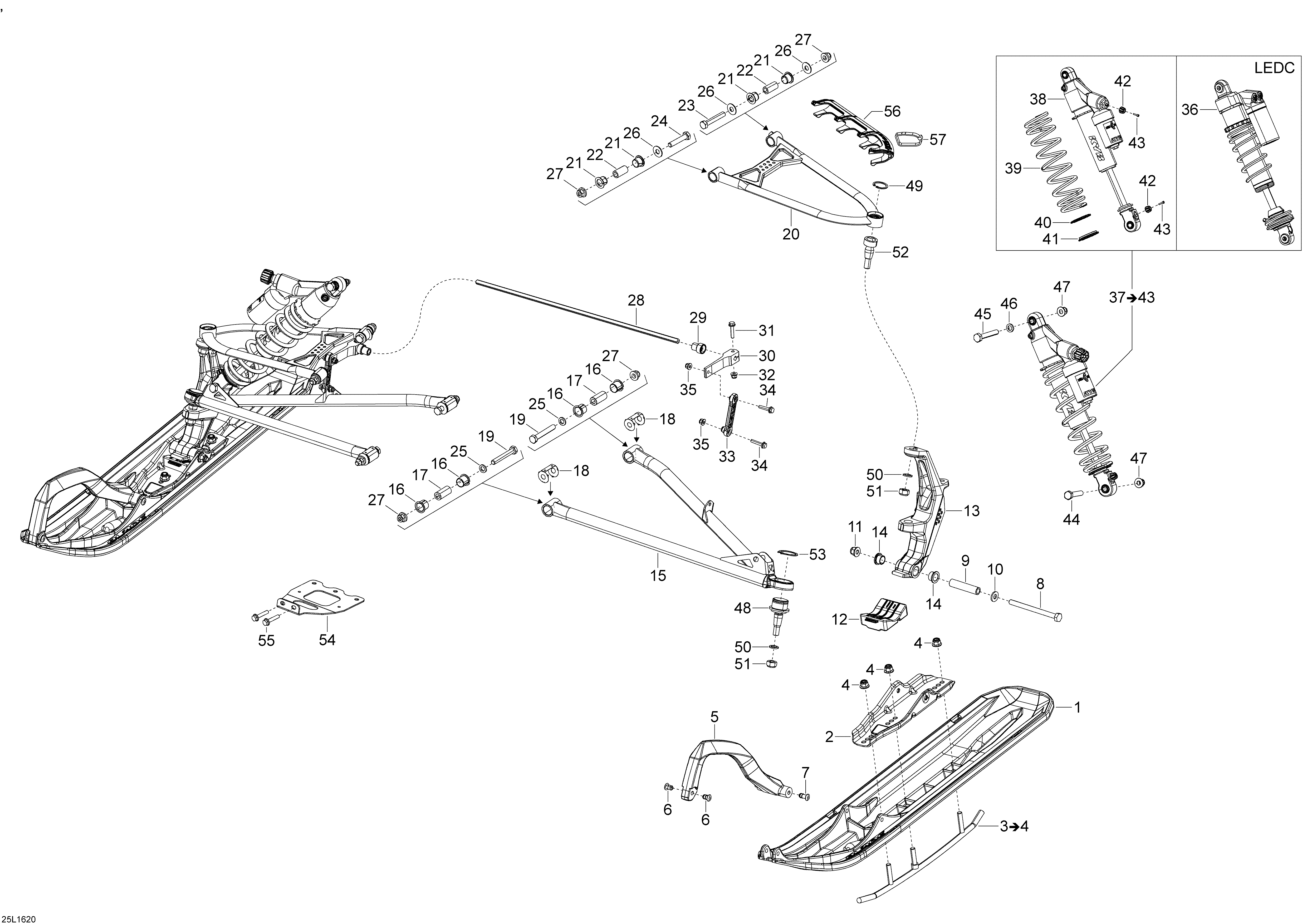

07- Front Suspension And Ski для BRP Lynx Rave RE (2-Stroke) - 2016
-
№АртикулНазвание
-
1505073486 Red Blade SkiRed Blade Ski
-
2505073240 Ski BridgeSki Bridge
-
3860200959 Ski Runner Kit. Includes 3 To 4Ski Runner Kit. Includes 3 To 4
-
4233201414 Elastic Flange Nut M10Elastic Flange Nut M10
-
5505072976 Black HandleBlack Handle
-
6505071812 RetainerRetainer
-
7505072133 RetainerRetainer
-
8231080044 Socket HD Screw M10 x 100Socket HD Screw M10 x 100
-
9506133300 Ski AxleSki Axle
-
10732900049 WasherWasher
-
11233201414 Elastic Flange Nut M10Elastic Flange Nut M10
-
12505073411 Rubber DamperRubber Damper
-
13505073475 Black LH Ski Leg (10L)Black LH Ski Leg (10L)
-
13505073477 Black RH Ski Leg (10R)Black RH Ski Leg (10R)
-
14505072690 BushingBushing
-
15505073426 Black RH Lower ArmBlack RH Lower Arm
-
15505073420 Black LH Lower ArmBlack LH Lower Arm
-
16505073330 CushionCushion
-
17505072209 BushingBushing
-
18505072634 Wear PlateWear Plate
-
19250000291 Hex. Cap Screw M10 x 70Hex. Cap Screw M10 x 70
-
20505073412 Black LH Upper ArmBlack LH Upper Arm
-
20505073416 Black RH Upper ArmBlack RH Upper Arm
-
21505073329 BushingBushing
-
22505072143 BushingBushing
-
23250000290 Hex. Cap Screw M10 x 60Hex. Cap Screw M10 x 60
-
24250000289 Hex. Cap Screw M10 x 50Hex. Cap Screw M10 x 50
-
25503189564 Washer. Model-stdWasher. Model-std
-
25503189564 Washer. Model-RS KitWasher. Model-RS Kit
-
26505072392 WasherWasher
-
27250100165 Nut M10Nut M10
-
28505072444 StabilisatorStabilisator
-
29505072445 BushingBushing
-
30505072446 Stabilisator LeverStabilisator Lever
-
31207663046 Hex. Flange Screw M6 x 30Hex. Flange Screw M6 x 30
-
32233261416 Elastic Flange Nut M6Elastic Flange Nut M6
-
33505072204 Double Ball Joint LinkDouble Ball Joint Link
-
34207663046 Hex. Flange Screw M6 x 30Hex. Flange Screw M6 x 30
-
35233261416 Elastic Flange Nut M6Elastic Flange Nut M6
-
36505073835 Front Shock Ass?y. Model-LEDCFront Shock Ass?y. Model-LEDC
-
38505074002 LH ShockLH Shock
-
38505074001 RH ShockRH Shock
-
39505073311 Spring (280mm - 18.4N/mm)Spring (280mm - 18.4N/mm)
-
40505073150 WasherWasher
-
41503194270 Spring StopperSpring Stopper
-
42505072753 Adjuster KnobAdjuster Knob
-
43250000644 Socket Screw M3 x 10Socket Screw M3 x 10
-
44207005544 Hex. Cap Screw M10 x 55Hex. Cap Screw M10 x 55
-
45207006544 Hex. Cap Screw M10 x 65Hex. Cap Screw M10 x 65
-
46503189564 WasherWasher
-
47233201414 Elastic Flange Nut M10Elastic Flange Nut M10
-
48505073636 Ball JointBall Joint
-
49293370070 CirclipCirclip
-
50234021410 Flat WasherFlat Washer
-
51250100089 Nut M12Nut M12
-
52505072913 Ball JointBall Joint
-
53293370035 CirclipCirclip
-
54505072584 Lower Reinforcement Plate. Model-RS KitLower Reinforcement Plate. Model-RS Kit
-
55207182044 Hex. Cap Screw M8 x 20. Model-RS KitHex. Cap Screw M8 x 20. Model-RS Kit
-
56505073696 Cable Cover. Model-LEDCCable Cover. Model-LEDC
-
5727120 Tie Rap. Model-LEDCTie Rap. Model-LEDC
