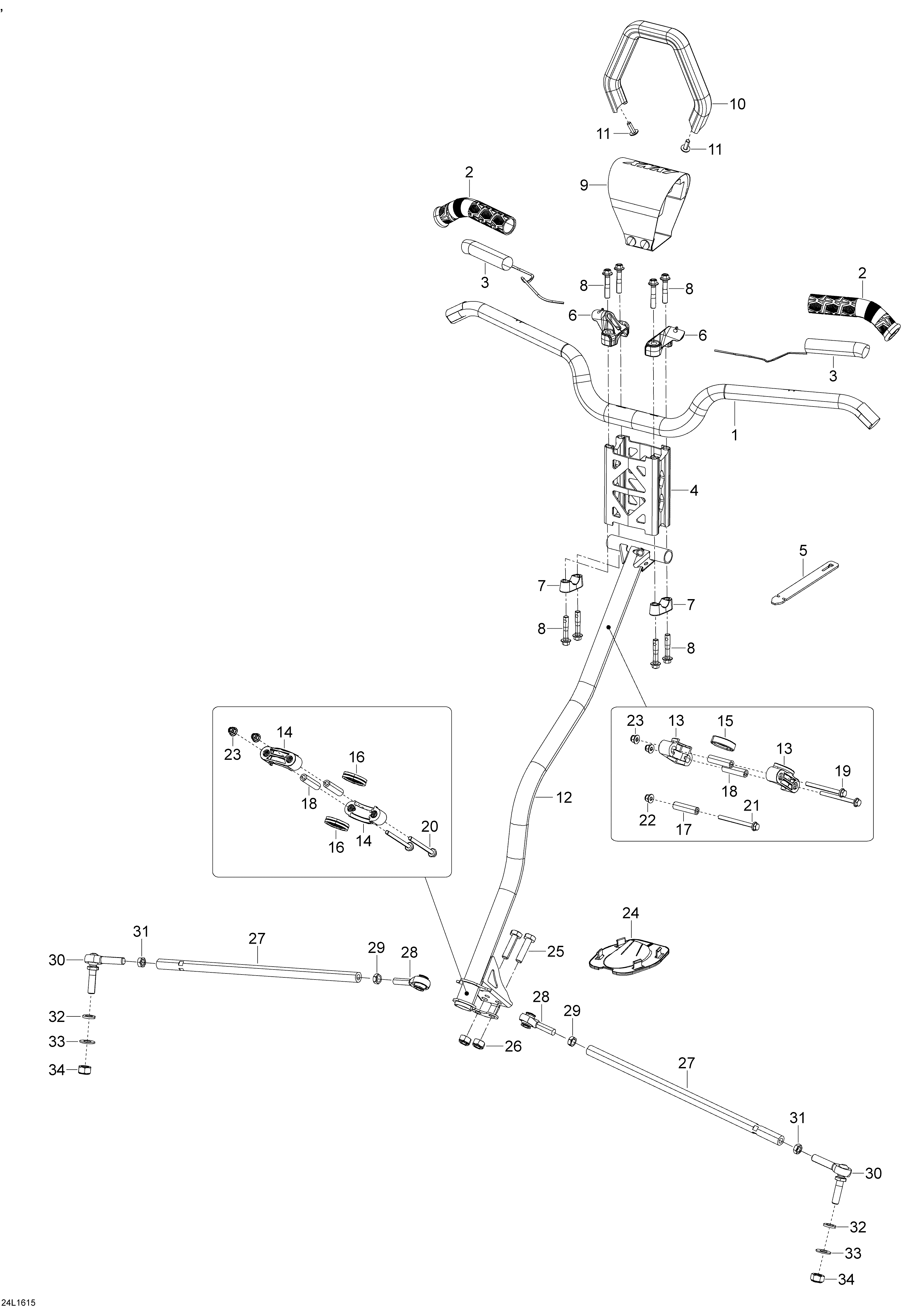

07- Steering System для BRP Lynx BoonDocker (2-Stroke) - 2016
‹-+›
-
№АртикулНазвание
-
1506152762 Handle BarHandle Bar
-
2506152483 GripGrip
-
3506152428 Heated Film (25W)Heated Film (25W)
-
4506152570 Black Extension (115mm)Black Extension (115mm)
-
5293850117 Rubber StrapRubber Strap
-
6506152772 LH SupportLH Support
-
6506152773 RH SupportRH Support
-
7506152751 Steering SupportSteering Support
-
8250000352 Hex. Flange Screw M8 x 40Hex. Flange Screw M8 x 40
-
9506152649 Steering PadSteering Pad
-
10506152460 Strap Ass'yStrap Ass'y
-
11250000779 Torx Truss Screw M6 x 18Torx Truss Screw M6 x 18
-
12506152839 Main TubeMain Tube
-
13506152508 Upper Half-HousingUpper Half-Housing
-
14506152217 Lower Half-HousingLower Half-Housing
-
15506152509 Upper Vibrat. GasketUpper Vibrat. Gasket
-
16506152518 Lower Vibrat. GasketLower Vibrat. Gasket
-
17506152297 Housing BushingHousing Bushing
-
18506152297 Housing BushingHousing Bushing
-
19207667086 Hex. Flange Screw M6 x 70Hex. Flange Screw M6 x 70
-
20207667086 Hex. Flange Screw M6 x 70Hex. Flange Screw M6 x 70
-
21207667086 Hex. Flange Screw M6 x 70Hex. Flange Screw M6 x 70
-
22233261416 Elastic Flange Nut M6Elastic Flange Nut M6
-
23233261416 Elastic Flange Nut M6Elastic Flange Nut M6
-
24506152163 PlatePlate
-
25207004044 Hex. Cap Screw M10 x 40Hex. Cap Screw M10 x 40
-
26232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
27506152482 Tie RodTie Rod
-
28506152081 Ball JointBall Joint
-
29250100016 LH Hex Jam Nut M10LH Hex Jam Nut M10
-
30506152684 Ball JointBall Joint
-
31732610010 RH Hex Jam Nut M10RH Hex Jam Nut M10
-
32503192496 WasherWasher
-
33506152582 WasherWasher
-
34233201464 Elastic Stop Nut M10Elastic Stop Nut M10
