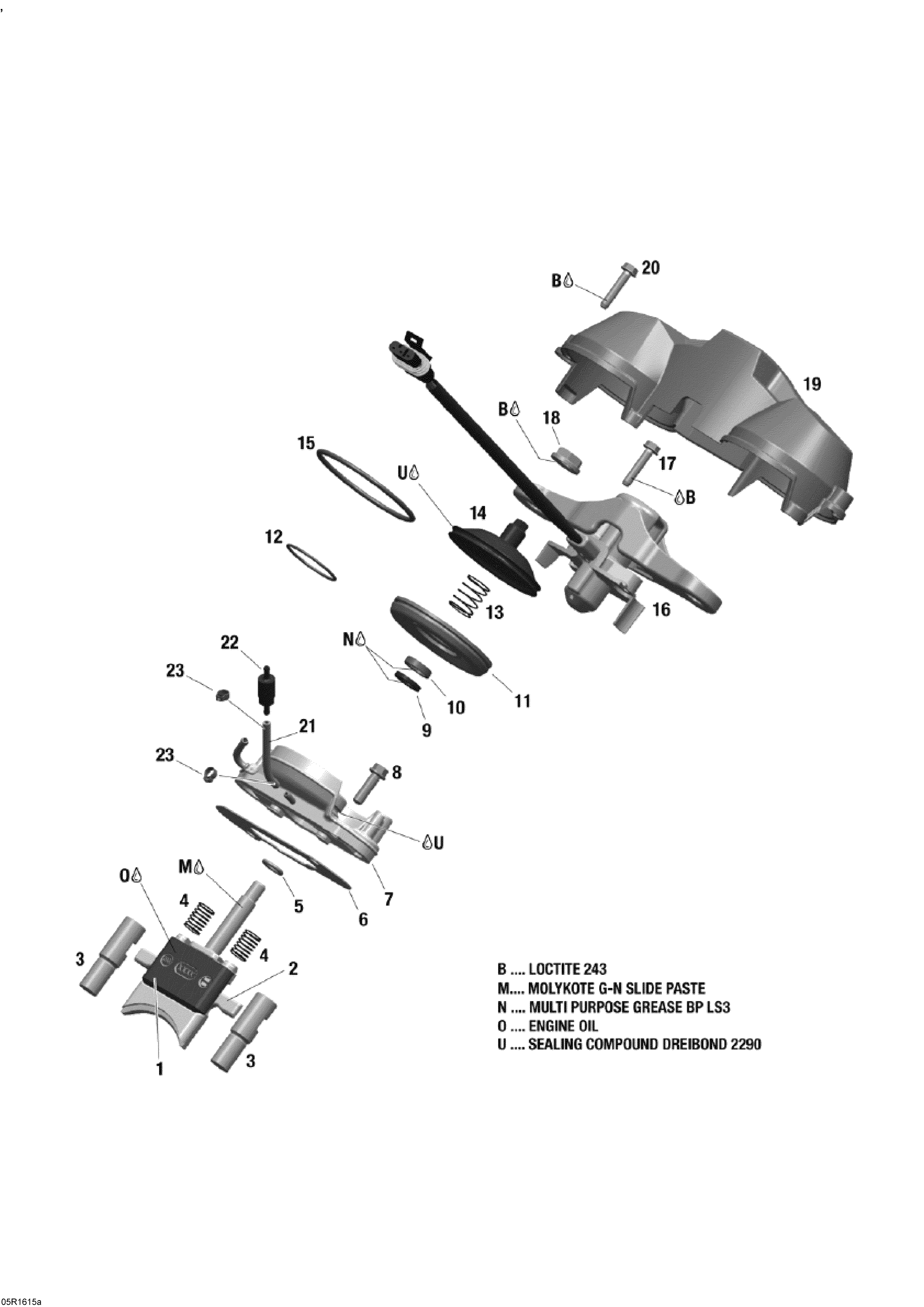

01- RAVE Valve - 600 E-TEC для BRP Lynx BoonDocker (2-Stroke) - 2016
-
№АртикулНазвание
-
1420854980 Upper Exhaust ValveUpper Exhaust Valve
-
2420854974 Lower Exhaust ValveLower Exhaust Valve
-
3420854990 Exhaust ValveExhaust Valve
-
4420238556 SpringSpring
-
5420931765 O-Ring. Included In Gasket KitO-Ring. Included In Gasket Kit
-
6420430032 Gasket. Included In Gasket KitGasket. Included In Gasket Kit
-
7420854888 Valve HousingValve Housing
-
8420440207 Flange Torx Screw M6 x 20. Tightening Torque 8-10 NmFlange Torx Screw M6 x 20. Tightening Torque 8-10 Nm
-
9420431380 Gasket Ring. Included In Gasket KitGasket Ring. Included In Gasket Kit
-
10420950730 Oil Seal. Included In Gasket KitOil Seal. Included In Gasket Kit
-
11420260725 BellowsBellows
-
12420838255 Hose SpringHose Spring
-
13420238557 SpringSpring
-
14420854442 Valve CoverValve Cover
-
15420939285 Hose SpringHose Spring
-
16420854089 Position Sensor With Valve BarPosition Sensor With Valve Bar
-
17420841550 Tapping Screw M5 x 22. Tightening Torque 5-6 NmTapping Screw M5 x 22. Tightening Torque 5-6 Nm
-
18420942190 Nut M12 x 1.5. Tightening Torque 6-8 NmNut M12 x 1.5. Tightening Torque 6-8 Nm
-
19420910821 Rave CoverRave Cover
-
20420841550 Tapping Screw M5 x 22. Tightening Torque 5-6 NmTapping Screw M5 x 22. Tightening Torque 5-6 Nm
-
21414413800 Oil LineOil Line
-
22404160200 Check Valve Ass’yCheck Valve Ass’y
-
23420851508 ClampClamp
