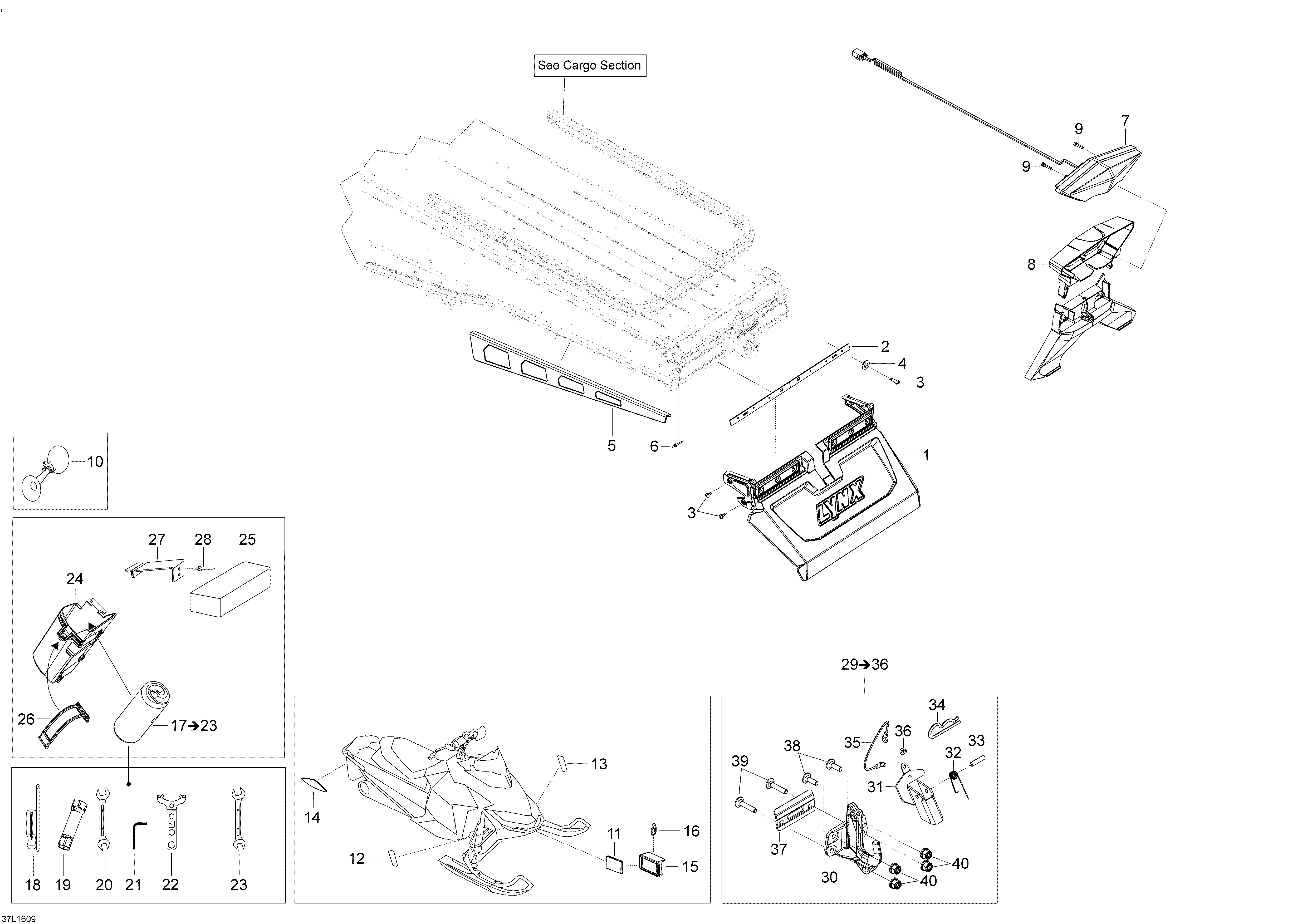

09- Utilities для BRP Lynx Adventure GT (4-Stroke) - 2016
-
№АртикулНазвание
-
1520001407 Snow GuardSnow Guard
-
2520001021 Fastening PlateFastening Plate
-
3250000676 Forming Screw M5 x 16Forming Screw M5 x 16
-
4250200025 Washer M5Washer M5
-
5520000693 RH ProtectorRH Protector
-
5520000694 LH ProtectorLH Protector
-
6293150163 RivetRivet
-
7520000692 Rear LightRear Light
-
8511000764 Rear Light SupportRear Light Support
-
940611 Screw K40 x 10Screw K40 x 10
-
10549011291 HornHorn
-
1121118 Bright ReflectorBright Reflector
-
12520001600 Yellow RH ReflectorYellow RH Reflector
-
13520001601 Yellow LH ReflectorYellow LH Reflector
-
14705002423 Amber ReflectorAmber Reflector
-
15520000871 Reflector SupportReflector Support
-
1627120 Tie RapTie Rap
-
17529000078 Tool Kit. Includes 17 To 23Tool Kit. Includes 17 To 23
-
18529000004 Screw DriverScrew Driver
-
19529000046 Socket Wrench (16/21mm)Socket Wrench (16/21mm)
-
20529000002 Fork Wrench (10/13mm)Fork Wrench (10/13mm)
-
21520001142 KeyKey
-
22520001442 WrenchWrench
-
2334017 Wrench (17/19mm)Wrench (17/19mm)
-
24520000894 Tool Kit Rack. Model-900 ACETool Kit Rack. Model-900 ACE
-
25708200043 Tool Box. Model-1200 4-TECTool Box. Model-1200 4-TEC
-
26520000528 Latch. Model-900 ACELatch. Model-900 ACE
-
275346728 Tool Kit Support. Model-1200 4-TECTool Kit Support. Model-1200 4-TEC
-
2836108 Rivet. Model-1200 4-TECRivet. Model-1200 4-TEC
-
29520001475 Hitch Ass'y. Includes 26 To 33Hitch Ass'y. Includes 26 To 33
-
3341012 Spring Pin 6 x 30Spring Pin 6 x 30
-
3441029 Cotter SpringCotter Spring
-
36390909100 Avex RivetAvex Rivet
-
37520000727 PlatePlate
-
38207782544 Screw M8 x 25Screw M8 x 25
-
39207784044 Screw M8 x 40Screw M8 x 40
-
40233281414 Elastic Flange Nut M8Elastic Flange Nut M8
