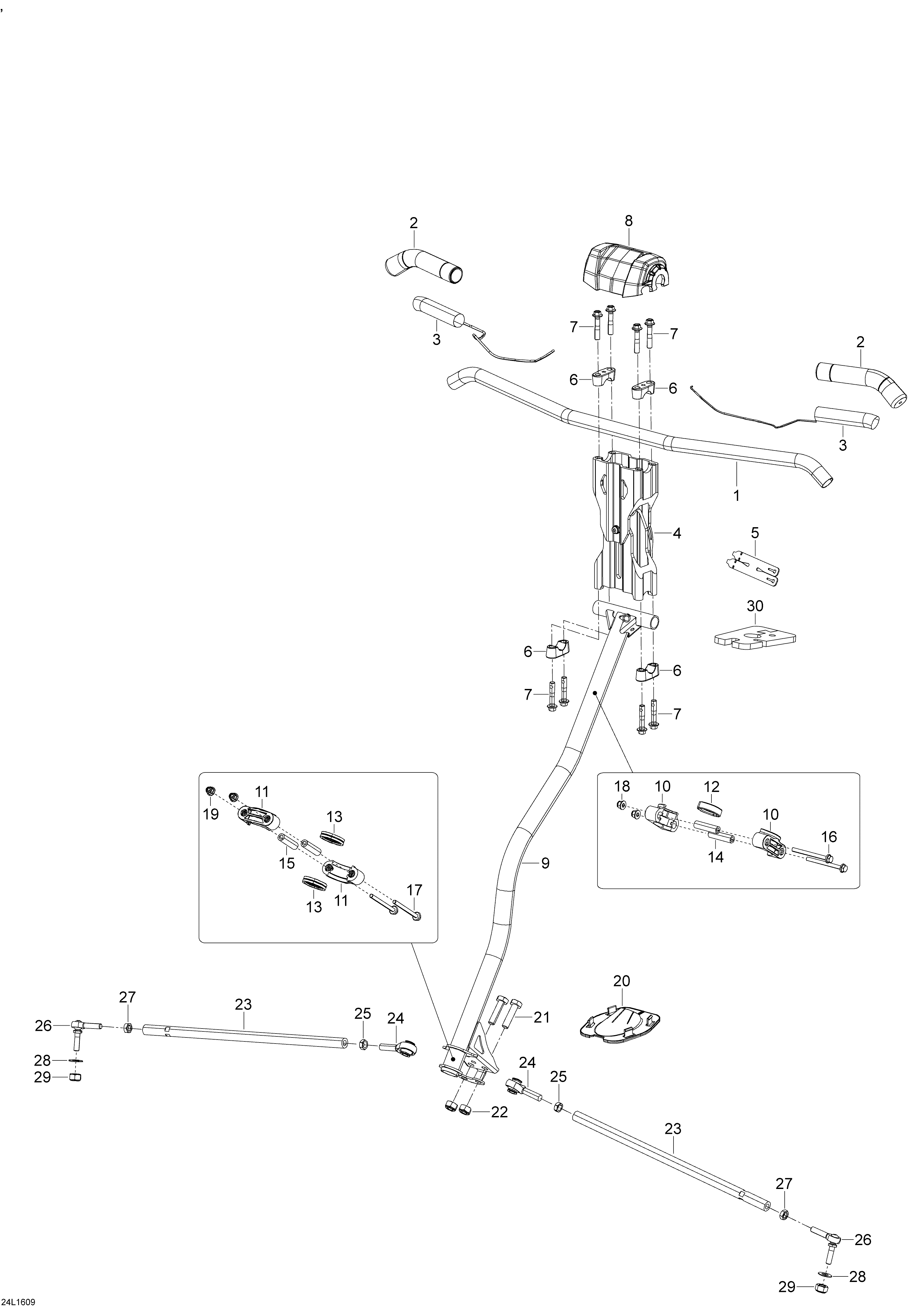

07- Steering System для BRP Lynx Adventure GT (4-Stroke) - 2016
‹-+›
-
№АртикулНазвание
-
1506152722 Handle BarHandle Bar
-
2506152483 GripGrip
-
3506152428 Heating Element (25W)Heating Element (25W)
-
4860201123 Adjustable RiserAdjustable Riser
-
6506152751 Steering SupportSteering Support
-
7250000285 Hex. Flange Screw M8 x 40Hex. Flange Screw M8 x 40
-
8506152553 Steering PadSteering Pad
-
9506152846 Main TubeMain Tube
-
10506152508 Upper Half-HousingUpper Half-Housing
-
11506152217 Lower Half-HousingLower Half-Housing
-
12506152509 Upper Vibrat. GasketUpper Vibrat. Gasket
-
13506152518 Lower Vibrat. GasketLower Vibrat. Gasket
-
14506152297 Housing BushingHousing Bushing
-
15506152297 Housing BushingHousing Bushing
-
16207667086 Hex. Flange Screw M6 x 70Hex. Flange Screw M6 x 70
-
17207667086 Hex. Flange Screw M6 x 70Hex. Flange Screw M6 x 70
-
18233261416 Elastic Flange Nut M6Elastic Flange Nut M6
-
19233261416 Elastic Flange Nut M6Elastic Flange Nut M6
-
20506152163 PlatePlate
-
21207004044 Hex.Cap Screw M10 x 40Hex.Cap Screw M10 x 40
-
22232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
23506152496 Tie RodTie Rod
-
24506152081 Ball Joint (LH Thread)Ball Joint (LH Thread)
-
25250100016 LH Hex Jam Nut M10LH Hex Jam Nut M10
-
26506152684 Ball Joint (RH Thread)Ball Joint (RH Thread)
-
27732610010 RH Hex Jam Nut M10RH Hex Jam Nut M10
-
28506152582 WasherWasher
-
29233201464 Elastic Stop Nut M10Elastic Stop Nut M10
-
30506152404 CushionCushion
