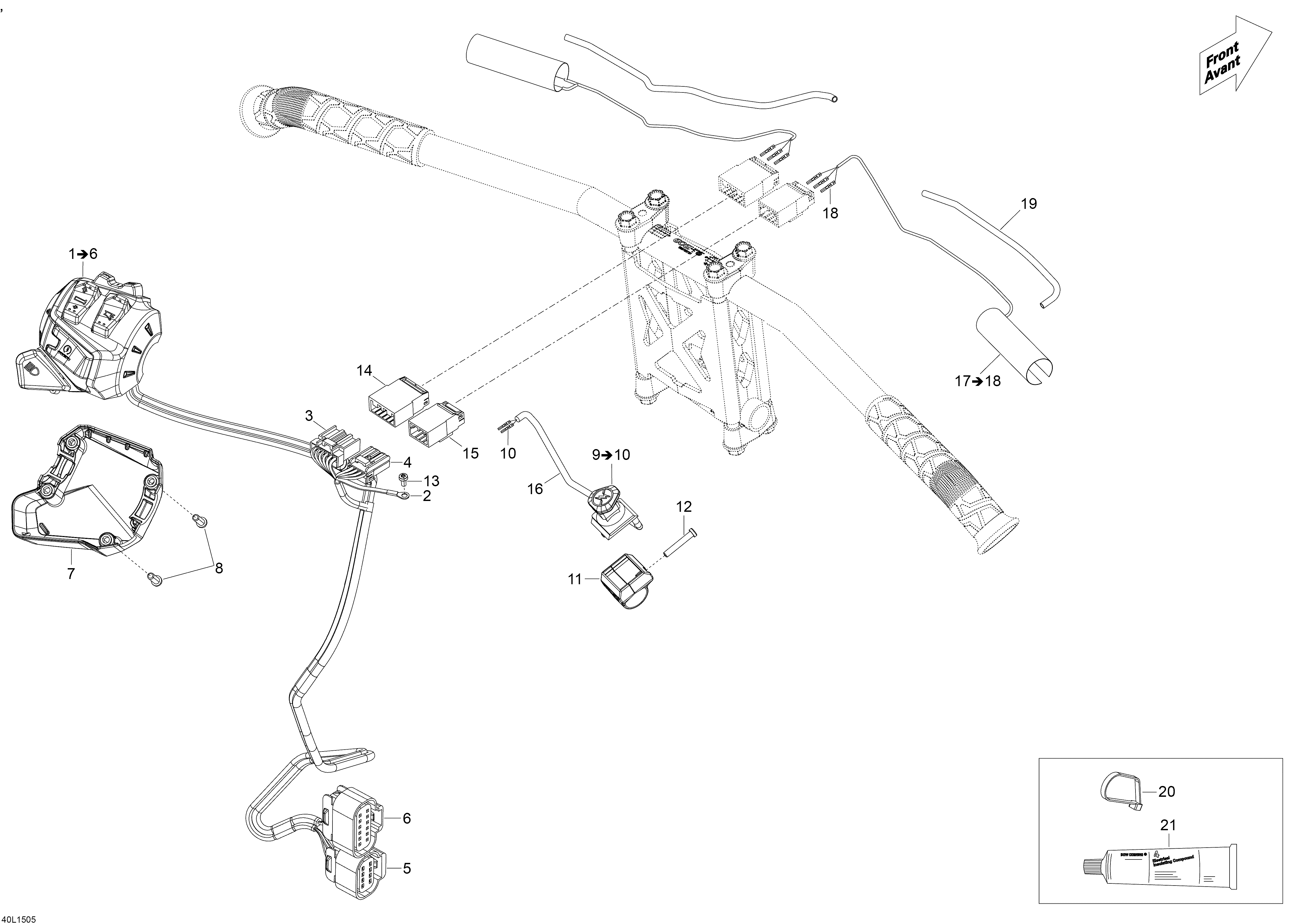

10- Steering Wiring Harness для BRP Lynx 69 YETI Army 600 E-TEC - 2015

  • №
    Артикул
    Название
  • 1
    515177677 LH Switch Housing. Includes 1 To 6
    LH Switch Housing. Includes 1 To 6
  • 2
    515175504 Ring Terminal
    Ring Terminal
  • 3
    515175543 Female Housing, 6 Circuits
    Female Housing, 6 Circuits
  • 3
    515175231 Female Terminal
    Female Terminal
  • 4
    515175845 Female Housing, 4 Circuits
    Female Housing, 4 Circuits
  • 4
    515175231 Female Terminal
    Female Terminal
  • 5
    710001928 Female Housing, 8 Circuits
    Female Housing, 8 Circuits
  • 6
    710001930 Female Housing, 12 Circuits
    Female Housing, 12 Circuits
  • 7
    515177147 Switch Housing Plate
    Switch Housing Plate
  • 8
    250000671 Torx Screw #8-18
    Torx Screw #8-18
  • 9
    515177362 Kill Switch. Includes 9 To 10
    Kill Switch. Includes 9 To 10
  • 10
    515175232 Male Terminal
    Male Terminal
  • 11
    515176825 Kill Switch Support
    Kill Switch Support
  • 12
    250000263 Torx Screw #8-18
    Torx Screw #8-18
  • 13
    250000690 Forming Screw M5 x 10
    Forming Screw M5 x 10
  • 14
    515175662 Male Housing, 6 Circuits
    Male Housing, 6 Circuits
  • 15
    515175846 Male Housing, 4 Circuits
    Male Housing, 4 Circuits
  • 16
    515175830 Low Temperature Tubing 1/2”
    Low Temperature Tubing 1/2”
  • 17
    506152428 Heated Film, 25W. Includes 17 To 18
    Heated Film, 25W. Includes 17 To 18
  • 18
    515175232 Male Terminal
    Male Terminal
  • 19
    515175332 Vinyl Tubing, Low Temperature
    Vinyl Tubing, Low Temperature
  • 20
    414115200 Tie-Rap 180mm
    Tie-Rap 180mm
  • 21
    619600021 Loctite 8104 (Dielectric Grease), 75ml
    Loctite 8104 (Dielectric Grease), 75ml
