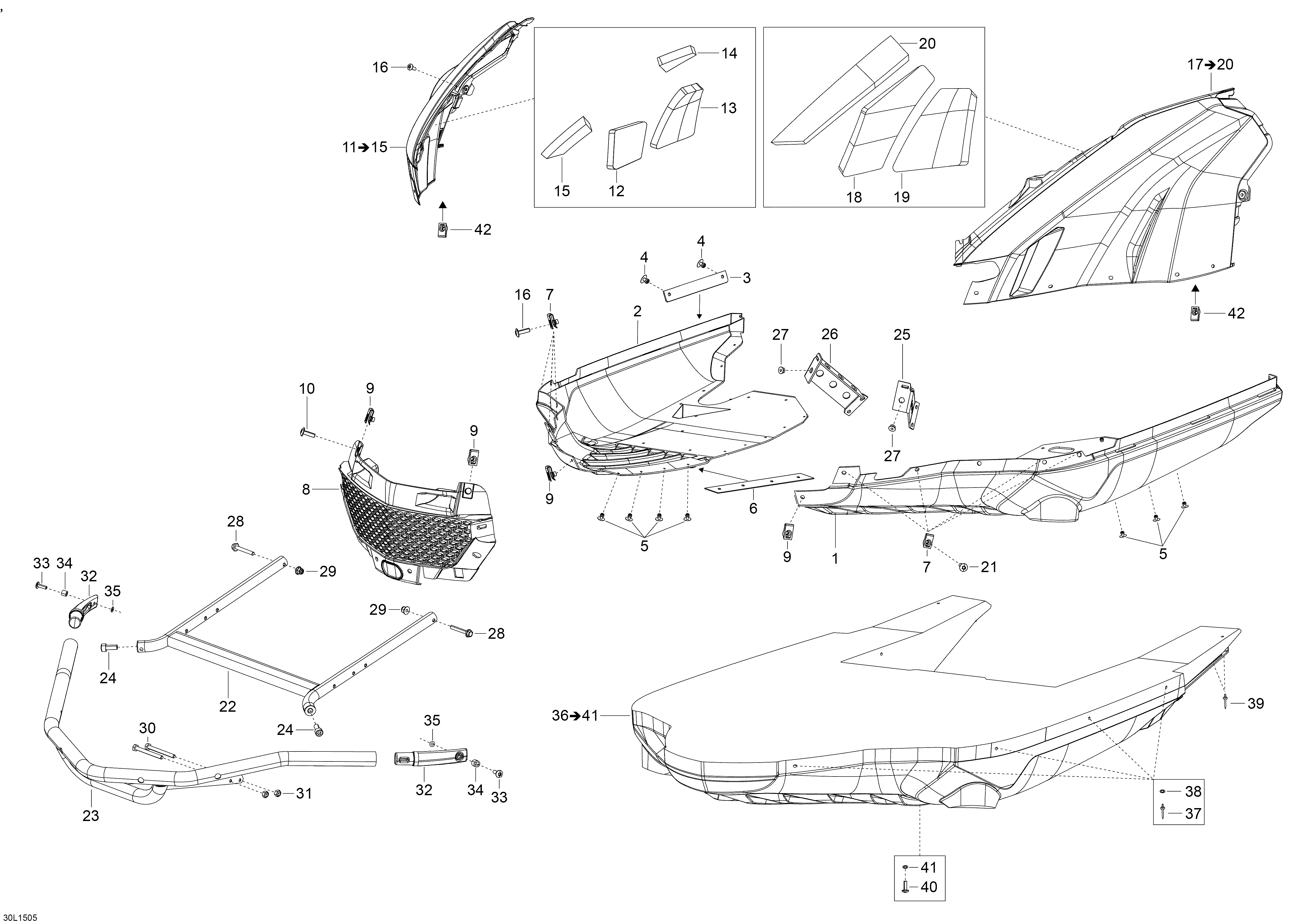

09- Bottom Pan для BRP Lynx 69 YETI Army 600 E-TEC - 2015

‹-+›
  • №
    Артикул
    Название
  • 1
    502007383 Black LH Lower Bottom Pan
    Black LH Lower Bottom Pan
  • 2
    502007384 Black RH Lower Bottom Pan
    Black RH Lower Bottom Pan
  • 3
    502007255 Heat Insulation Plate
    Heat Insulation Plate
  • 4
    293150211 Rivet
    Rivet
  • 5
    293150104 Pop Rivet 3/16
    Pop Rivet 3/16
  • 6
    502007226 Support Plate
    Support Plate
  • 7
    250100113 Extruded Panel Nut M6
    Extruded Panel Nut M6
  • 8
    502007139 Front Grill
    Front Grill
  • 9
    250100113 Extruded Panel Nut M6
    Extruded Panel Nut M6
  • 10
    250000722 Torx Truss Screw M6 x 20
    Torx Truss Screw M6 x 20
  • 11
    502007292 Black RH Bottom Pan Ass'y. Includes 11 To 15
    Black RH Bottom Pan Ass'y. Includes 11 To 15
  • 12
    502007133 Insulator
    Insulator
  • 13
    502007132 Insulator
    Insulator
  • 14
    502007008 Insulator
    Insulator
  • 15
    502007009 Insulator
    Insulator
  • 16
    250000722 Torx Truss Screw M6 x 20
    Torx Truss Screw M6 x 20
  • 17
    502007294 Black LH Bottom Pan Ass'y. Includes 17 To 20
    Black LH Bottom Pan Ass'y. Includes 17 To 20
  • 18
    502007088 Insulator
    Insulator
  • 19
    502007131 Insulator
    Insulator
  • 20
    502007185 Insulator
    Insulator
  • 21
    250000722 Torx Truss Screw M6 x 20
    Torx Truss Screw M6 x 20
  • 22
    502007235 Bumper
    Bumper
  • 23
    502007313 Black Extra Bumber
    Black Extra Bumber
  • 24
    205082044 Socket HD Screw M8 x 20
    Socket HD Screw M8 x 20
  • 25
    502007137 LH Bottom Pan Fastener
    LH Bottom Pan Fastener
  • 26
    502007138 RH Bottom Pan Fastener
    RH Bottom Pan Fastener
  • 27
    605636003 Clinch Nut M6
    Clinch Nut M6
  • 28
    207664044 Hex. Flange Screw M6 x 40
    Hex. Flange Screw M6 x 40
  • 29
    233261414 Elastic Flange Nut M6
    Elastic Flange Nut M6
  • 30
    207066044 Hex. Cap Screw M6 x 60
    Hex. Cap Screw M6 x 60
  • 31
    232561434 Elastic Stop Nut
    Elastic Stop Nut
  • 32
    502007248 Bumber End
    Bumber End
  • 33
    250000215 Torx Screw M6 x 45
    Torx Screw M6 x 45
  • 34
    605453745 Bushing
    Bushing
  • 35
    20117 Washer
    Washer
  • 36
    860200691 Skid Plate Kit. Includes 36 To 41
    Skid Plate Kit. Includes 36 To 41
  • 37
    293150108 Pop Rivet 3/16
    Pop Rivet 3/16
  • 38
    250200025 Washer
    Washer
  • 39
    605636007 Rivet
    Rivet
  • 40
    250000248 Pan HD Torx Screw M8 x 25
    Pan HD Torx Screw M8 x 25
  • 41
    234082410 Flat Washer
    Flat Washer
  • 42
    250100113 Extruded Panel Nut M6
    Extruded Panel Nut M6
