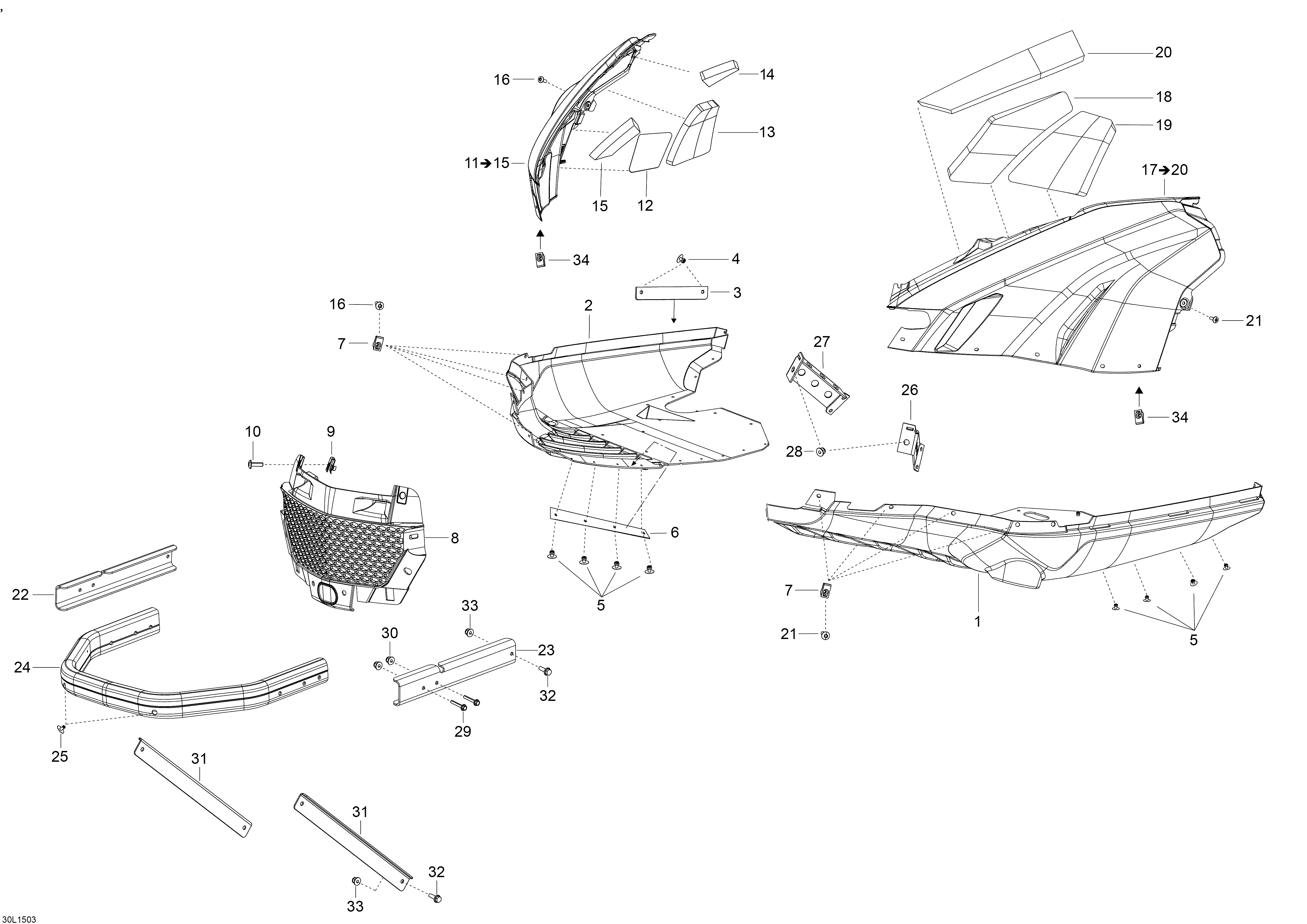

09- Bottom Pan для BRP Lynx 69 YETI 600 ACE - 2015
-
№АртикулНазвание
-
1502007436 Black LH Lower Bottom PanBlack LH Lower Bottom Pan
-
2502006917 Black RH Lower Bottom PanBlack RH Lower Bottom Pan
-
3502007255 Heat Insulation PlateHeat Insulation Plate
-
4293150211 RivetRivet
-
5293150104 Pop Rivet 3/16Pop Rivet 3/16
-
6502007226 Support PlateSupport Plate
-
7250100113 Extruded Panel Nut M6Extruded Panel Nut M6
-
8502007140 Front GrillFront Grill
-
9250100113 Extruded Panel Nut M6Extruded Panel Nut M6
-
10250000722 Torx Truss Screw M6 x 20Torx Truss Screw M6 x 20
-
11502007292 Black RH Bottom Pan Ass'y. Includes 11 To 15Black RH Bottom Pan Ass'y. Includes 11 To 15
-
12502007133 InsulatorInsulator
-
13502007132 InsulatorInsulator
-
14502007008 InsulatorInsulator
-
15502007009 InsulatorInsulator
-
16250000722 Torx Truss Screw M6 x 20Torx Truss Screw M6 x 20
-
17502007294 Black LH Bottom Pan Ass'y. Includes 17 To 20Black LH Bottom Pan Ass'y. Includes 17 To 20
-
18502007088 InsulatorInsulator
-
19502007131 InsulatorInsulator
-
20502007185 InsulatorInsulator
-
21250000722 Torx Truss Screw M6 x 20Torx Truss Screw M6 x 20
-
22502007379 RH Bumper SupportRH Bumper Support
-
23502007380 LH Bumper SupportLH Bumper Support
-
24502007450 Black BumperBlack Bumper
-
25293730047 DartDart
-
26502007137 LH Bottom Pan FastenerLH Bottom Pan Fastener
-
27502007138 RH Bottom Pan FastenerRH Bottom Pan Fastener
-
28605636003 Clinch Nut M6Clinch Nut M6
-
29207664044 Hex. Flange Screw M6 x 40Hex. Flange Screw M6 x 40
-
30233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
31502007382 Bumper Support SWTBumper Support SWT
-
32207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
33233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
34250100113 Extruded Panel Nut M6Extruded Panel Nut M6
