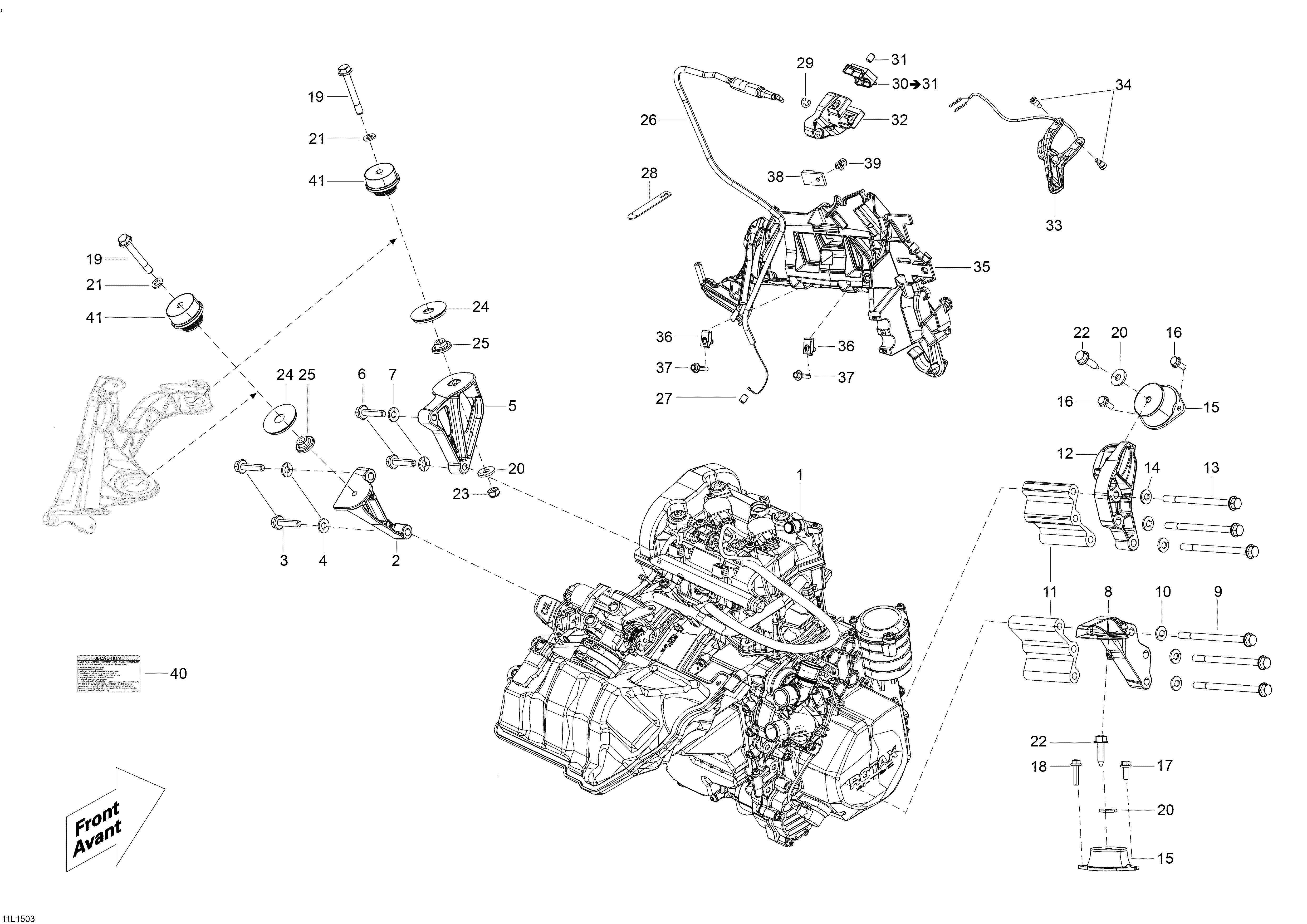

01- Engine And Engine Support для BRP Lynx 69 YETI 600 ACE - 2015

  • №
    Артикул
    Название
  • 2
    512060660 Rear Support, PTO
    Rear Support, PTO
  • 3
    207583586 Hex. Flanged Screw M8 x 35, Scotch Grip
    Hex. Flanged Screw M8 x 35, Scotch Grip
  • 4
    234281474 Conical Spring Washer M8
    Conical Spring Washer M8
  • 5
    512060661 Front Support, PTO
    Front Support, PTO
  • 6
    207583586 Hex. Flanged Screw M8 x 35, Scotch Grip
    Hex. Flanged Screw M8 x 35, Scotch Grip
  • 7
    234281474 Conical Spring Washer M8
    Conical Spring Washer M8
  • 8
    512060894 Rear Support, MAG
    Rear Support, MAG
  • 9
    230582544 Hex. Flange Screw M8 x 125, Scotch Grip
    Hex. Flange Screw M8 x 125, Scotch Grip
  • 10
    234281474 Conical Spring Washer M8
    Conical Spring Washer M8
  • 11
    512060505 Shim
    Shim
  • 12
    512060663 Front Support, MAG
    Front Support, MAG
  • 13
    230582544 Hex. Flange Screw M8 x 125, Scotch Grip
    Hex. Flange Screw M8 x 125, Scotch Grip
  • 14
    234281474 Conical Spring Washer M8
    Conical Spring Washer M8
  • 15
    512060729 Rubber Mount
    Rubber Mount
  • 16
    207561644 Hex. Flanged Screw M6 x 16, Scotch Grip
    Hex. Flanged Screw M6 x 16, Scotch Grip
  • 17
    207561644 Hex. Flanged Screw M6 x 16, Scotch Grip
    Hex. Flanged Screw M6 x 16, Scotch Grip
  • 18
    207562534 Hex. Flanged Screw M6 x 25, Scotch Grip
    Hex. Flanged Screw M6 x 25, Scotch Grip
  • 19
    207586044 Hex. Flanges Screw M8 x 60, Scotch Grip
    Hex. Flanges Screw M8 x 60, Scotch Grip
  • 20
    503183200 Washer
    Washer
  • 21
    250200008 Flat Washer M8
    Flat Washer M8
  • 22
    250000257 Cone Screw M8
    Cone Screw M8
  • 23
    232581414 Elastic Stop Nut M8
    Elastic Stop Nut M8
  • 24
    512060647 Stopper
    Stopper
  • 25
    512060285 Spacer
    Spacer
  • 26
    512060607 Throttle Cable
    Throttle Cable
  • 27
    707000434 Cable Guide
    Cable Guide
  • 28
    293850117 Rubber Strap
    Rubber Strap
  • 29
    414274500 Circlip
    Circlip
  • 30
    512060859 Upper Housing. Includes 30 To 31
    Upper Housing. Includes 30 To 31
  • 31
    414440800 Set Screw M8 x 10
    Set Screw M8 x 10
  • 32
    512060860 Lower Housing
    Lower Housing
  • 33
    512061051 Throttle Handle Ass'y
    Throttle Handle Ass'y
  • 34
    732601143 Flanged Screw
    Flanged Screw
  • 35
    512060509 ECU Support
    ECU Support
  • 36
    250000079 Extruded Panel Nut M5
    Extruded Panel Nut M5
  • 37
    207552044 Hex. Flanged Screw M5 x 20, Scotch Grip
    Hex. Flanged Screw M5 x 20, Scotch Grip
  • 38
    270000141 Clip
    Clip
  • 39
    293150027 Rivet
    Rivet
  • 40
    516005521 Checking Engine Oil Level Caution Decal
    Checking Engine Oil Level Caution Decal
  • 41
    512060295 Rubber Mount
    Rubber Mount
