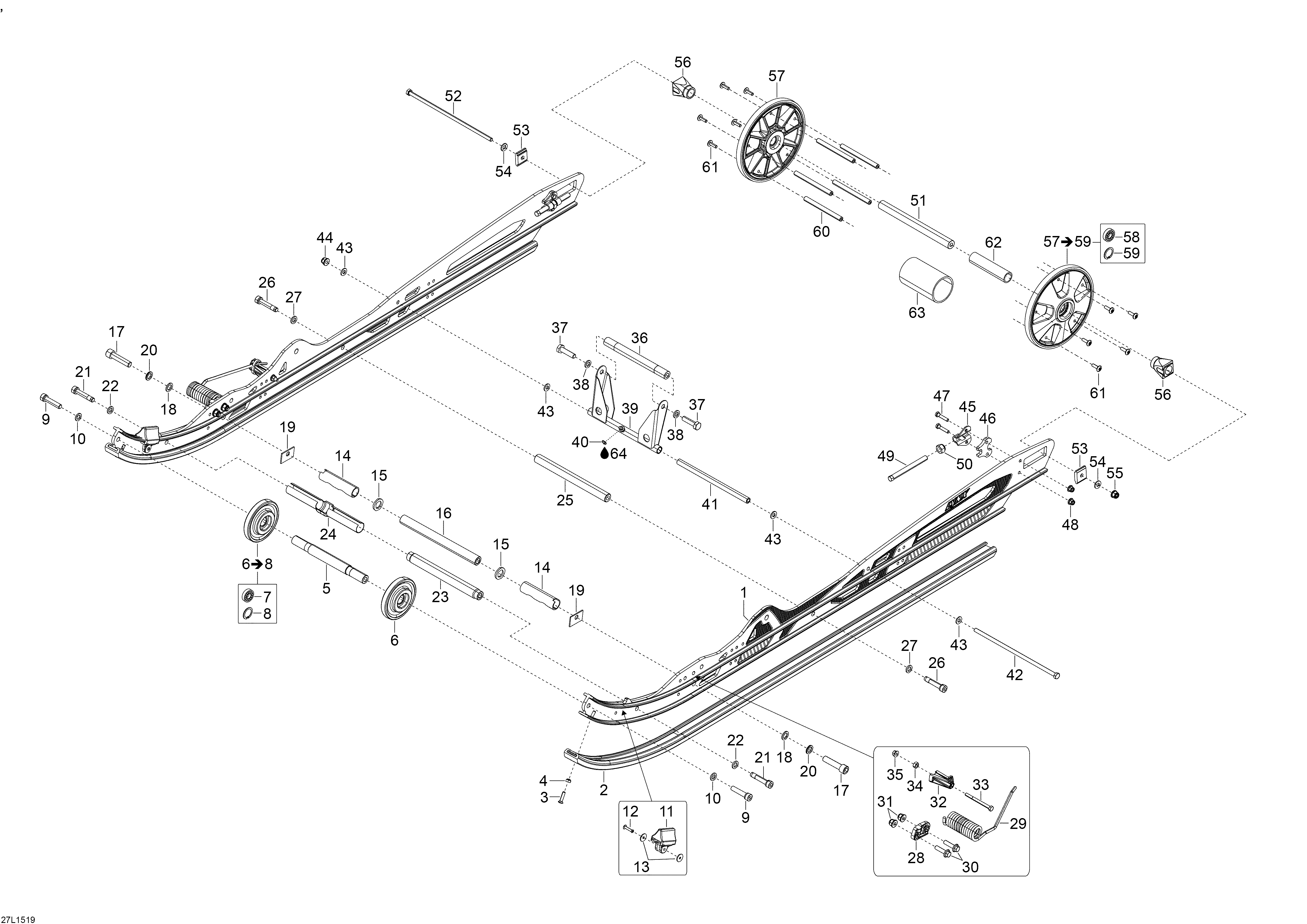

08- Rear Suspension (3900) для BRP Lynx BoonDocker 800R E-TEC - 2015
-
№АртикулНазвание
-
1503193811 LH RunnerLH Runner
-
1503193918 RH RunnerRH Runner
-
2503193170 Slider ShoeSlider Shoe
-
3208562531 Screw M6 x 25Screw M6 x 25
-
4232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
5503192842 Front Wheel ShaftFront Wheel Shaft
-
6503192611 Wheel 100mm. Includes 6 To 8Wheel 100mm. Includes 6 To 8
-
7503190396 Ball BearingBall Bearing
-
9205504544 Socket HD Screw M10 x 45Socket HD Screw M10 x 45
-
10503192496 Flat Washer M10Flat Washer M10
-
11503192106 Rubber StopperRubber Stopper
-
12293150142 Pop Rivet 3/16Pop Rivet 3/16
-
13503191273 WasherWasher
-
14605349896 SleeveSleeve
-
1531013 Shim RingShim Ring
-
16605350690 ShaftShaft
-
17205525554 Socket HD Screw M12 x 55Socket HD Screw M12 x 55
-
18503192491 WasherWasher
-
19605449294 Support PlateSupport Plate
-
2020074 Lock WasherLock Washer
-
21205505054 Socket Head Screw M10 x 50Socket Head Screw M10 x 50
-
22503192496 WasherWasher
-
23605353958 ShaftShaft
-
24605355096 Limiter Strap RetainerLimiter Strap Retainer
-
255343471 ShaftShaft
-
26205505054 Socket Head Screw M10 x 50Socket Head Screw M10 x 50
-
27503192496 Flat Washer M10Flat Washer M10
-
28503193881 LH SupportLH Support
-
28503193882 RH SupportRH Support
-
29503193825 LH SpringLH Spring
-
29503193826 RH SpringRH Spring
-
30207683054 Hex. Flange Screw M8 x 30Hex. Flange Screw M8 x 30
-
31233281466 Elastic Flange Nut M8Elastic Flange Nut M8
-
32503194143 HookHook
-
33207167054 Hex. Cap Screw M6 x 70Hex. Cap Screw M6 x 70
-
34232061414 Nut M6Nut M6
-
35233261466 Elastic Flange Nut M6Elastic Flange Nut M6
-
36503193638 ShaftShaft
-
37207204044 Hex. Cap Screw M10 x 40Hex. Cap Screw M10 x 40
-
38503192496 WasherWasher
-
39503193578 Rear SwingRear Swing
-
40408200700 Grease FittingGrease Fitting
-
41503189156 Pivot AxlePivot Axle
-
42503192440 Hex. Screw M8 x 248Hex. Screw M8 x 248
-
43503192494 WasherWasher
-
44233281466 Elastic Flange Nut M8Elastic Flange Nut M8
-
45503192583 Tensioner HousingTensioner Housing
-
46503193250 SpacerSpacer
-
47207063054 Hex. Cap Screw M6 x 30Hex. Cap Screw M6 x 30
-
48233261466 Elastic Flange Nut M6Elastic Flange Nut M6
-
49230100054 Hex. Screw M10 x 100Hex. Screw M10 x 100
-
50233601466 Elastic Lock Nut M10Elastic Lock Nut M10
-
51503194105 AxleAxle
-
52503194069 Hex. Screw M8 x 261Hex. Screw M8 x 261
-
53503194067 Axle SliderAxle Slider
-
54250200159 Conical Spring WasherConical Spring Washer
-
55233281466 Elastic Flange Nut M8Elastic Flange Nut M8
-
56503190428 SpacerSpacer
-
57503193760 Wheel 200mm. Includes 57 To 59Wheel 200mm. Includes 57 To 59
-
58503190396 Ball BearingBall Bearing
-
59415129371 CirclipCirclip
-
60503193761 RodRod
-
61250000722 Torx Truss Screw M6 x 20Torx Truss Screw M6 x 20
-
62503191263 SpacerSpacer
-
63503193097 BushingBushing
-
64619590193 Synthetic GreaseSynthetic Grease
