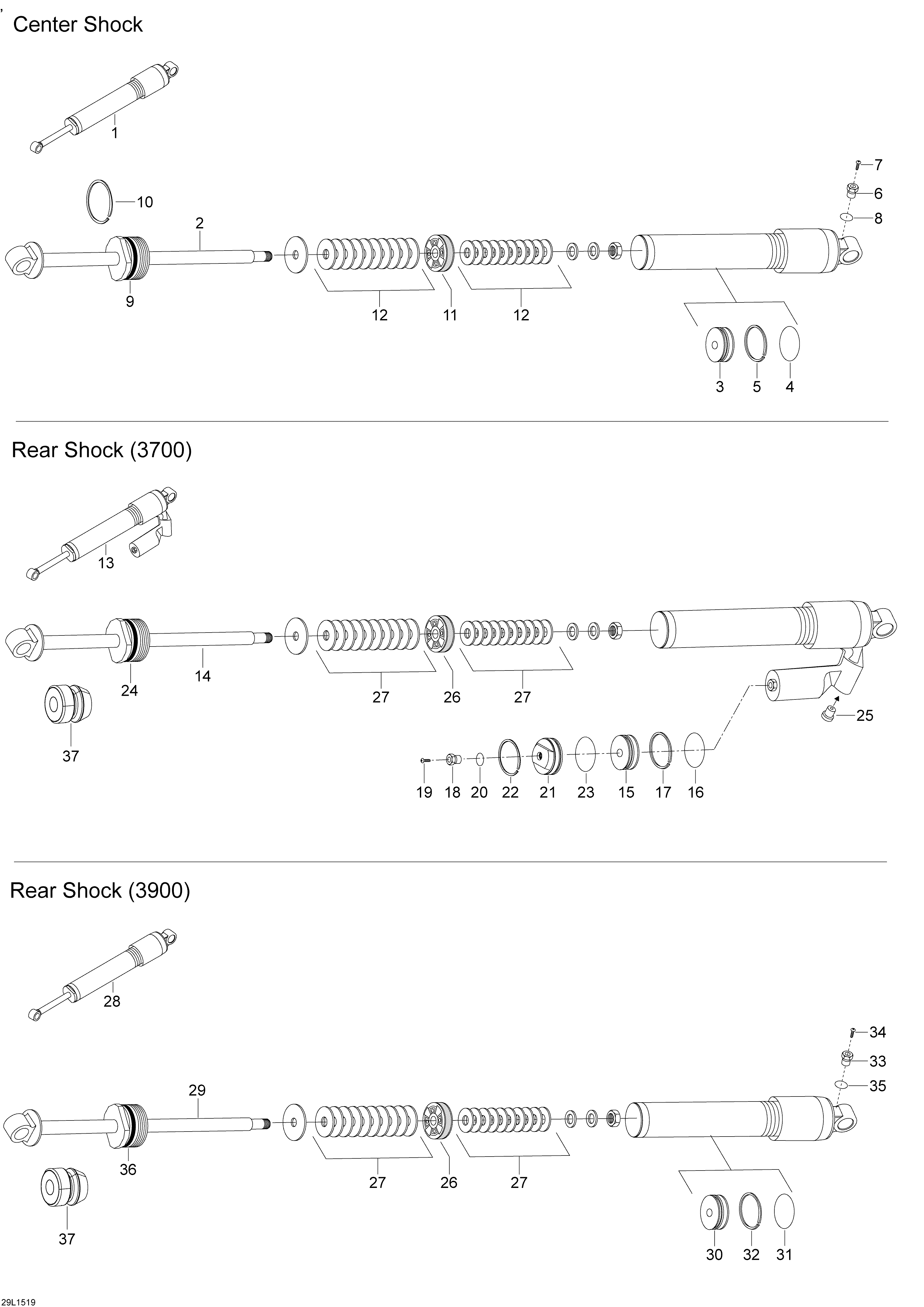

08- Rear Shocks для BRP Lynx BoonDocker 800R E-TEC - 2015

  • №
    Артикул
    Название
  • 1
    503193287 Shock
    Shock
  • 4
    414888312 O Ring
    O Ring
  • 5
    503189308 Piston Ring
    Piston Ring
  • 6
    505070398 Air Valve Ass?y
    Air Valve Ass?y
  • 7
    505070399 Screw
    Screw
  • 8
    505070400 O Ring
    O Ring
  • 11
    619300108 Piston 36 mm, 0 x 0,3 Slits
    Piston 36 mm, 0 x 0,3 Slits
  • 11
    415128848 Piston 36 mm, 1 x 0,3 Slits
    Piston 36 mm, 1 x 0,3 Slits
  • 11
    619300161 Piston 36 mm, 2 x 0,3 slits
    Piston 36 mm, 2 x 0,3 slits
  • 11
    619300071 Piston 36 mm, 3 x 0,3 Slits
    Piston 36 mm, 3 x 0,3 Slits
  • 11
    619300109 Piston 36 mm, 4 x 0,3 Slits
    Piston 36 mm, 4 x 0,3 Slits
  • 11
    619300111 Piston 36 mm, 5 x 0,3 Slits
    Piston 36 mm, 5 x 0,3 Slits
  • 11
    619300110 Piston 36 mm, 6 x 0,3 Slits
    Piston 36 mm, 6 x 0,3 Slits
  • 12
    619300162 Shim 36 mm, 12 x 0,114
    Shim 36 mm, 12 x 0,114
  • 12
    619300075 Shim 36 mm, 12 x 0,152
    Shim 36 mm, 12 x 0,152
  • 12
    619300117 Shim 36 mm, 12 x 0,203
    Shim 36 mm, 12 x 0,203
  • 12
    619300120 Shim 36 mm, 12 x 0,254
    Shim 36 mm, 12 x 0,254
  • 12
    619300076 Shim 36 mm, 13 x 0,114
    Shim 36 mm, 13 x 0,114
  • 12
    619300077 Shim 36 mm, 13 x 0,152
    Shim 36 mm, 13 x 0,152
  • 12
    619300078 Shim 36 mm, 13 x 0,203
    Shim 36 mm, 13 x 0,203
  • 12
    619300079 Shim 36 mm, 13 x 0,254
    Shim 36 mm, 13 x 0,254
  • 12
    619300080 Shim 36 mm, 14 x 0,114
    Shim 36 mm, 14 x 0,114
  • 12
    619300081 Shim 36 mm, 14 x 0,152
    Shim 36 mm, 14 x 0,152
  • 12
    619300082 Shim 36 mm, 14 x 0,203
    Shim 36 mm, 14 x 0,203
  • 12
    619300083 Shim 36 mm. 14 X 0,254
    Shim 36 mm. 14 X 0,254
  • 12
    619300121 Shim 36 mm, 15 x 0,114
    Shim 36 mm, 15 x 0,114
  • 12
    619300115 Shim 36 mm, 15 x 0,152
    Shim 36 mm, 15 x 0,152
  • 12
    619300122 Shim 36 mm, 15 x 0,203
    Shim 36 mm, 15 x 0,203
  • 12
    619300118 Shim 36 mm, 15 x 0,254
    Shim 36 mm, 15 x 0,254
  • 12
    619300084 Shim 36 mm, 16 x 0,114
    Shim 36 mm, 16 x 0,114
  • 12
    619300114 Shim 36 mm, 16 x 0,152
    Shim 36 mm, 16 x 0,152
  • 12
    619300119 Shim 36 mm, 16 x 0,203
    Shim 36 mm, 16 x 0,203
  • 12
    619300116 Shim 36 mm, 16 x 0,254
    Shim 36 mm, 16 x 0,254
  • 12
    619300085 Shim 36 mm, 17 x 0,114
    Shim 36 mm, 17 x 0,114
  • 12
    619300086 Shim 36 mm, 17 x 0,152
    Shim 36 mm, 17 x 0,152
  • 12
    619300087 Shim 36 mm, 17 x 0,203
    Shim 36 mm, 17 x 0,203
  • 12
    619300058 Shim 36 mm, 17 x 0,254
    Shim 36 mm, 17 x 0,254
  • 12
    230015 Shim 36 mm, 18 x 0,114
    Shim 36 mm, 18 x 0,114
  • 12
    619300123 Shim 36 mm, 18 x 0,152
    Shim 36 mm, 18 x 0,152
  • 12
    619300124 Shim 36 mm, 18 x 0,203
    Shim 36 mm, 18 x 0,203
  • 12
    230016 Shim 36 mm, 18 x 0,254
    Shim 36 mm, 18 x 0,254
  • 12
    619300088 Shim 36 mm, 19 x 0,114
    Shim 36 mm, 19 x 0,114
  • 12
    619300089 Shim 36 mm, 19 x 0,152
    Shim 36 mm, 19 x 0,152
  • 12
    619300090 Shim 36 mm, 19 x 0,203
    Shim 36 mm, 19 x 0,203
  • 12
    619300091 Shim 36 mm, 19 x 0,254
    Shim 36 mm, 19 x 0,254
  • 12
    619300125 Shim 36 mm, 20 x 0,114
    Shim 36 mm, 20 x 0,114
  • 12
    619300126 Shim 36 mm, 20 x 0,152
    Shim 36 mm, 20 x 0,152
  • 12
    619300127 Shim 36 mm, 20 x 0,203
    Shim 36 mm, 20 x 0,203
  • 12
    230017 Shim 36 mm, 20 x 0,254
    Shim 36 mm, 20 x 0,254
  • 12
    619300128 Shim 36 mm, 21 x 0,114
    Shim 36 mm, 21 x 0,114
  • 12
    619300092 Shim 36 mm, 21 x 0,152
    Shim 36 mm, 21 x 0,152
  • 12
    619300093 Shim 36 mm, 21 x 0,203
    Shim 36 mm, 21 x 0,203
  • 12
    619300094 Shim 36 mm, 21 x 0,254
    Shim 36 mm, 21 x 0,254
  • 12
    230018 Shim 36 mm, 22 x 0,114
    Shim 36 mm, 22 x 0,114
  • 12
    619300129 Shim 36 mm, 22 x 0,152
    Shim 36 mm, 22 x 0,152
  • 12
    619300098 Shim 36 mm, 22 x 0,203
    Shim 36 mm, 22 x 0,203
  • 12
    230019 Shim 36 mm, 22 x 0,254
    Shim 36 mm, 22 x 0,254
  • 12
    230021 Shim 36 mm, 24 x 0,114
    Shim 36 mm, 24 x 0,114
  • 12
    230022 Shim 36 mm, 24 x 0,152
    Shim 36 mm, 24 x 0,152
  • 12
    230023 Shim 36 mm, 24 x 0,203
    Shim 36 mm, 24 x 0,203
  • 12
    619300095 Shim 36 mm, 24 x 0,254
    Shim 36 mm, 24 x 0,254
  • 12
    230024 Shim 36 mm, 26 x 0,114
    Shim 36 mm, 26 x 0,114
  • 12
    619300130 Shim 36 mm, 26 x 0,152
    Shim 36 mm, 26 x 0,152
  • 12
    619300131 Shim 36 mm, 26 x 0,203
    Shim 36 mm, 26 x 0,203
  • 12
    619300099 Shim 36 mm, 26 x 0,254
    Shim 36 mm, 26 x 0,254
  • 12
    230025 Shim 36 mm, 28 x 0,114
    Shim 36 mm, 28 x 0,114
  • 12
    619300096 Shim 36 mm, 28 x 0,152
    Shim 36 mm, 28 x 0,152
  • 12
    619300102 Shim 36 mm, 28 x 0,203
    Shim 36 mm, 28 x 0,203
  • 12
    230026 Shim 36 mm, 28 x 0,254
    Shim 36 mm, 28 x 0,254
  • 12
    619300104 Shim 36 mm, 30 x 0,152
    Shim 36 mm, 30 x 0,152
  • 12
    619300132 Shim 36 mm, 30 x 0,203
    Shim 36 mm, 30 x 0,203
  • 12
    619300113 Shim 36 mm, 30 x 0,254
    Shim 36 mm, 30 x 0,254
  • 13
    503194103 Shock. (3700)
    Shock. (3700)
  • 15
    619300007 Floating Piston
    Floating Piston
  • 16
    415093807 O Ring
    O Ring
  • 17
    415093806 Piston Ring
    Piston Ring
  • 18
    505070398 Air Valve Ass?y
    Air Valve Ass?y
  • 19
    505070399 Screw
    Screw
  • 20
    505070400 O Ring
    O Ring
  • 21
    619300009 Seal Carrier Ass?y
    Seal Carrier Ass?y
  • 22
    619300006 Stop Ring
    Stop Ring
  • 23
    415093804 O Ring
    O Ring
  • 24
    619300019 Seal Carrier Ass?y 46mm
    Seal Carrier Ass?y 46mm
  • 25
    619300015 Valve Ass?y
    Valve Ass?y
  • 26
    230043 Piston 46 mm, 0 mm
    Piston 46 mm, 0 mm
  • 26
    619300159 Piston 46 mm, 1.2 mm
    Piston 46 mm, 1.2 mm
  • 26
    619300160 Piston 46 mm, 1.7 mm
    Piston 46 mm, 1.7 mm
  • 26
    230039 Piston 46 mm, 2.0 mm
    Piston 46 mm, 2.0 mm
  • 27
    619300060 Shim 40/46 mm, 17 x 0,114
    Shim 40/46 mm, 17 x 0,114
  • 27
    619300069 Shim 40/46 mm, 17 x 0,203
    Shim 40/46 mm, 17 x 0,203
  • 27
    619300068 Shim 40/46 mm, 18 x 0,114
    Shim 40/46 mm, 18 x 0,114
  • 27
    619300067 Shim 40/46 mm, 18 x 0,152
    Shim 40/46 mm, 18 x 0,152
  • 27
    230029 Shim 40/46 mm, 20 x 0,114
    Shim 40/46 mm, 20 x 0,114
  • 27
    230030 Shim 40/46 mm, 20 x 0,152
    Shim 40/46 mm, 20 x 0,152
  • 27
    230031 Shim 40/46 mm, 20 x 0,203
    Shim 40/46 mm, 20 x 0,203
  • 27
    230032 Shim 40/46 mm, 20 x 0,254
    Shim 40/46 mm, 20 x 0,254
  • 27
    619300097 Shim 40/46 mm, 20 x 0,305
    Shim 40/46 mm, 20 x 0,305
  • 27
    619300143 Shim 40/46 mm, 22 x 0,114
    Shim 40/46 mm, 22 x 0,114
  • 27
    619300140 Shim 40/46 mm, 22 x 0,152
    Shim 40/46 mm, 22 x 0,152
  • 27
    619300098 Shim 40/46 mm, 22 x 0,203
    Shim 40/46 mm, 22 x 0,203
  • 27
    619300134 Shim 40/46 mm, 22 x 0,254
    Shim 40/46 mm, 22 x 0,254
  • 27
    619300144 Shim 40/46 mm, 22 x 0,305
    Shim 40/46 mm, 22 x 0,305
  • 27
    619300145 Shim 40/46 mm, 24 x 0,114
    Shim 40/46 mm, 24 x 0,114
  • 27
    619300146 Shim 40/46 mm, 24 x 0,152
    Shim 40/46 mm, 24 x 0,152
  • 27
    619300147 Shim 40/46 mm, 24 x 0,203
    Shim 40/46 mm, 24 x 0,203
  • 27
    619300095 Shim 40/46 mm, 24 x 0,254
    Shim 40/46 mm, 24 x 0,254
  • 27
    619300148 Shim 40/46 mm, 24 x 0,305
    Shim 40/46 mm, 24 x 0,305
  • 27
    619300149 Shim 40/46 mm, 26 x 0,114
    Shim 40/46 mm, 26 x 0,114
  • 27
    619300141 Shim 40/46 mm, 26 x 0,152
    Shim 40/46 mm, 26 x 0,152
  • 27
    619300150 Shim 40/46 mm, 26 x 0,203
    Shim 40/46 mm, 26 x 0,203
  • 27
    619300099 Shim 40/46 mm, 26 x 0,254
    Shim 40/46 mm, 26 x 0,254
  • 27
    619300100 Shim 40/46 mm, 26 x 0,305
    Shim 40/46 mm, 26 x 0,305
  • 27
    619300101 Shim 40/46 mm, 28 x 0,114
    Shim 40/46 mm, 28 x 0,114
  • 27
    619300151 Shim 40/46 mm, 28 x 0,152
    Shim 40/46 mm, 28 x 0,152
  • 27
    619300102 Shim 40/46 mm, 28 x 0,203
    Shim 40/46 mm, 28 x 0,203
  • 27
    619300103 Shim 40/46 mm, 28 x 0,254
    Shim 40/46 mm, 28 x 0,254
  • 27
    619300152 Shim 40/46 mm, 28 x 0,305
    Shim 40/46 mm, 28 x 0,305
  • 27
    619300153 Shim 40/46 mm, 30 x 0,114
    Shim 40/46 mm, 30 x 0,114
  • 27
    619300104 Shim 40/46 mm, 30 x 0,152
    Shim 40/46 mm, 30 x 0,152
  • 27
    619300154 Shim 40/46 mm, 30 x 0,203
    Shim 40/46 mm, 30 x 0,203
  • 27
    619300113 Shim 40/46 mm, 30 x 0,254
    Shim 40/46 mm, 30 x 0,254
  • 27
    619300056 Shim 40/46 mm, 30 x 0,305
    Shim 40/46 mm, 30 x 0,305
  • 27
    230082 Shim 40/46 mm, 32 x 0,114
    Shim 40/46 mm, 32 x 0,114
  • 27
    619300137 Shim 40/46 mm, 32 x 0,152
    Shim 40/46 mm, 32 x 0,152
  • 27
    619300138 Shim 40/46 mm, 32 x 0,203
    Shim 40/46 mm, 32 x 0,203
  • 27
    619300059 Shim 40/46 mm, 32 x 0,254
    Shim 40/46 mm, 32 x 0,254
  • 27
    619300022 Shim 40/46 mm, 32 x 0,305
    Shim 40/46 mm, 32 x 0,305
  • 27
    230033 Shim 40/46 mm, 34 x 0,114
    Shim 40/46 mm, 34 x 0,114
  • 27
    230034 Shim 40/46 mm, 34 x 0,152
    Shim 40/46 mm, 34 x 0,152
  • 27
    230035 Shim 40/46 mm, 34 x 0,203
    Shim 40/46 mm, 34 x 0,203
  • 27
    230036 Shim 40/46 mm, 34 x 0,254
    Shim 40/46 mm, 34 x 0,254
  • 27
    619300070 Shim 40/46 mm, 34 x 0,305
    Shim 40/46 mm, 34 x 0,305
  • 27
    230037 Shim 40/46 mm, 36 x 0,114
    Shim 40/46 mm, 36 x 0,114
  • 27
    619300155 Shim 40/46 mm, 36 x 0,152
    Shim 40/46 mm, 36 x 0,152
  • 27
    619300142 Shim 40/46 mm, 36 x 0,203
    Shim 40/46 mm, 36 x 0,203
  • 27
    503189038 Shim 40/46 mm, 36 x 0,254
    Shim 40/46 mm, 36 x 0,254
  • 27
    619300105 Shim 40/46 mm, 36 x 0,305
    Shim 40/46 mm, 36 x 0,305
  • 27
    230040 Shim 40/46 mm, 38 x 0,152
    Shim 40/46 mm, 38 x 0,152
  • 27
    230041 Shim 40/46 mm, 38 x 0,203
    Shim 40/46 mm, 38 x 0,203
  • 27
    230042 Shim 40/46 mm, 38 x 0,254
    Shim 40/46 mm, 38 x 0,254
  • 27
    619300106 Shim 40/46 mm, 38 x 0,305
    Shim 40/46 mm, 38 x 0,305
  • 27
    619300157 Shim 40/46 mm, 40 x 0,152
    Shim 40/46 mm, 40 x 0,152
  • 27
    619300112 Shim 40/46 mm, 40 x 0,203
    Shim 40/46 mm, 40 x 0,203
  • 27
    619300158 Shim 40/46 mm, 40 x 0,254
    Shim 40/46 mm, 40 x 0,254
  • 27
    619300107 Shim 40/46 mm, 40 x 0,305
    Shim 40/46 mm, 40 x 0,305
  • 28
    503193523 Shock. (3900)
    Shock. (3900)
  • 30
    503189008 Floating Piston
    Floating Piston
  • 31
    503189007 O Ring
    O Ring
  • 32
    503189006 Piston Ring
    Piston Ring
  • 33
    505070398 Air Valve
    Air Valve
  • 34
    505070399 Screw
    Screw
  • 35
    505070400 O Ring
    O Ring
  • 36
    230060 Seal Carrier Ass?y 46mm
    Seal Carrier Ass?y 46mm
  • 37
    619300172 Rubber Cushion
    Rubber Cushion
