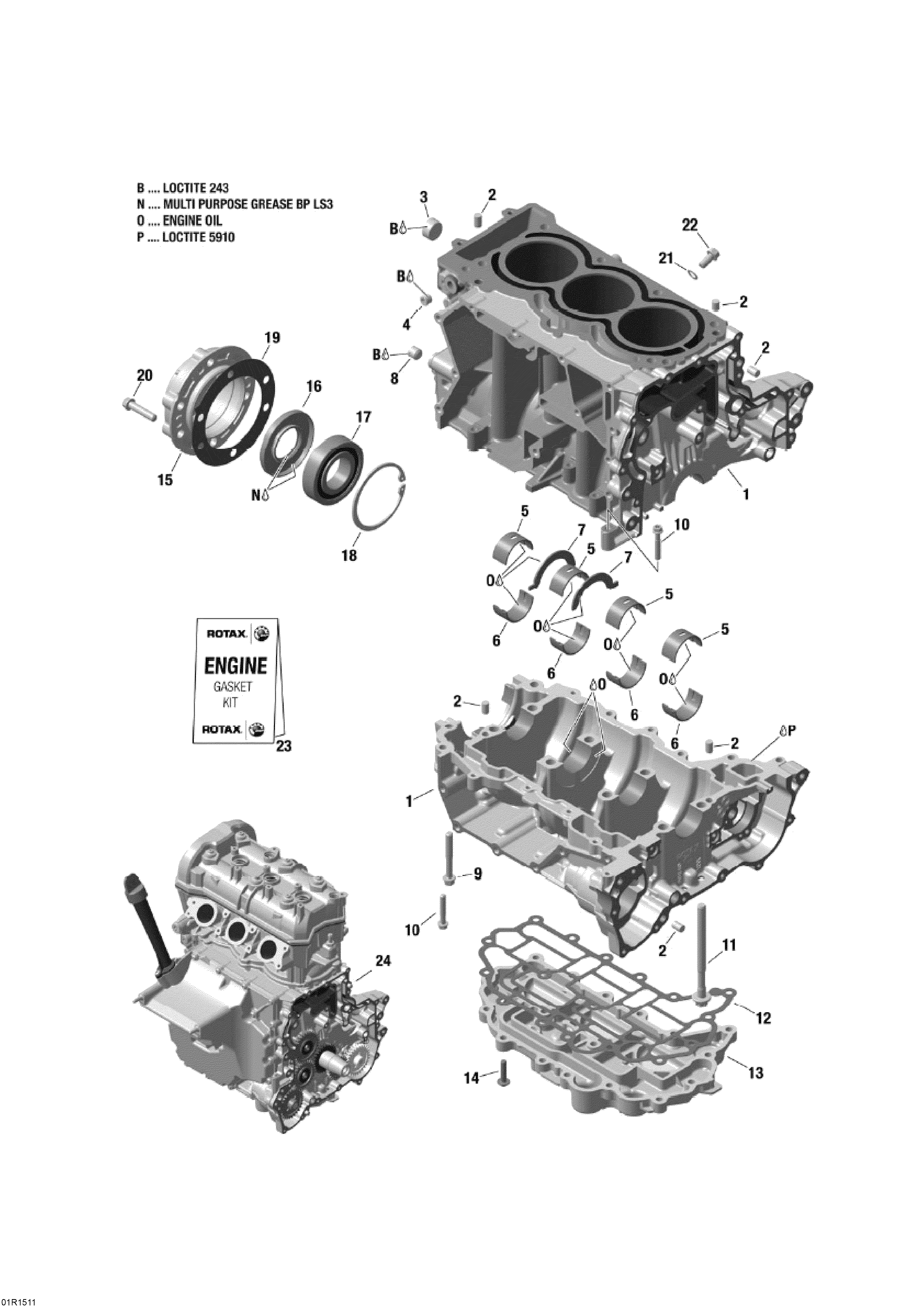

01- Engine Block для BRP Lynx Adventure GT 900 ACE - 2015
‹-+›
-
№АртикулНазвание
-
1420893133 Engine Block Ass'y. Includes 1 To 6Engine Block Ass'y. Includes 1 To 6
-
2420632010 Pin 8 x 12Pin 8 x 12
-
3420641317 Plug Screw M20 x 1.5. Tightening Torque 28 Nm +/- 12%Plug Screw M20 x 1.5. Tightening Torque 28 Nm +/- 12%
-
4420641323 Plug Screw M10 x 1. Tightening Torque 12 Nm +/- 12%Plug Screw M10 x 1. Tightening Torque 12 Nm +/- 12%
-
5420933180 Plain Bearing HalfPlain Bearing Half
-
6420933185 Plain Bearing HalfPlain Bearing Half
-
7420933140 Ring HalfRing Half
-
8420840500 Threaded Pin M12 x 1,5. Tightening Torque 9 Nm +/- 12%Threaded Pin M12 x 1,5. Tightening Torque 9 Nm +/- 12%
-
9420641213 Torx Flange Screw M8 x 55. Tightening Torque 23 Nm +/- 12%Torx Flange Screw M8 x 55. Tightening Torque 23 Nm +/- 12%
-
10420641258 Torx Flange Screw M6 x 35. Tightening Torque 9 Nm +/- 12%Torx Flange Screw M6 x 35. Tightening Torque 9 Nm +/- 12%
-
11420940945 Torx Screw M9 x 113. Tightening Torque 20 Nm +/- 12% +120° +/- 5°Torx Screw M9 x 113. Tightening Torque 20 Nm +/- 12% +120° +/- 5°
-
12420431820 Gasket. Included In Gasket KitGasket. Included In Gasket Kit
-
13420911500 Oil SumpOil Sump
-
14420841546 Torx TR Screw M6 x 25. Tightening Torque 9 Nm +/- 12%Torx TR Screw M6 x 25. Tightening Torque 9 Nm +/- 12%
-
15420911845 PTO Cover Ass?y. Includes 15 To 18PTO Cover Ass?y. Includes 15 To 18
-
16420431402 Oil Seal. Included In Gasket KitOil Seal. Included In Gasket Kit
-
17420832232 Ball BearingBall Bearing
-
18420845790 Retaining RingRetaining Ring
-
19420450080 Gasket. Included In Gasket KitGasket. Included In Gasket Kit
-
20420641188 Torx Flange Screw M8 x 35. Tightening Torque 23 Nm +/- 12%Torx Flange Screw M8 x 35. Tightening Torque 23 Nm +/- 12%
-
21420950141 Sealing Ring. Included In Gasket KitSealing Ring. Included In Gasket Kit
-
22420440852 Torx Flange Screw M8 x 16. Tightening Torque 10 Nm +/- 12%Torx Flange Screw M8 x 16. Tightening Torque 10 Nm +/- 12%
-
23420686235 Gasket Kit 903Gasket Kit 903
-
24300090301 Long Block 903Long Block 903
-
B293800060 Loctite 243Loctite 243
-
P293800081 Loctite 5910Loctite 5910
