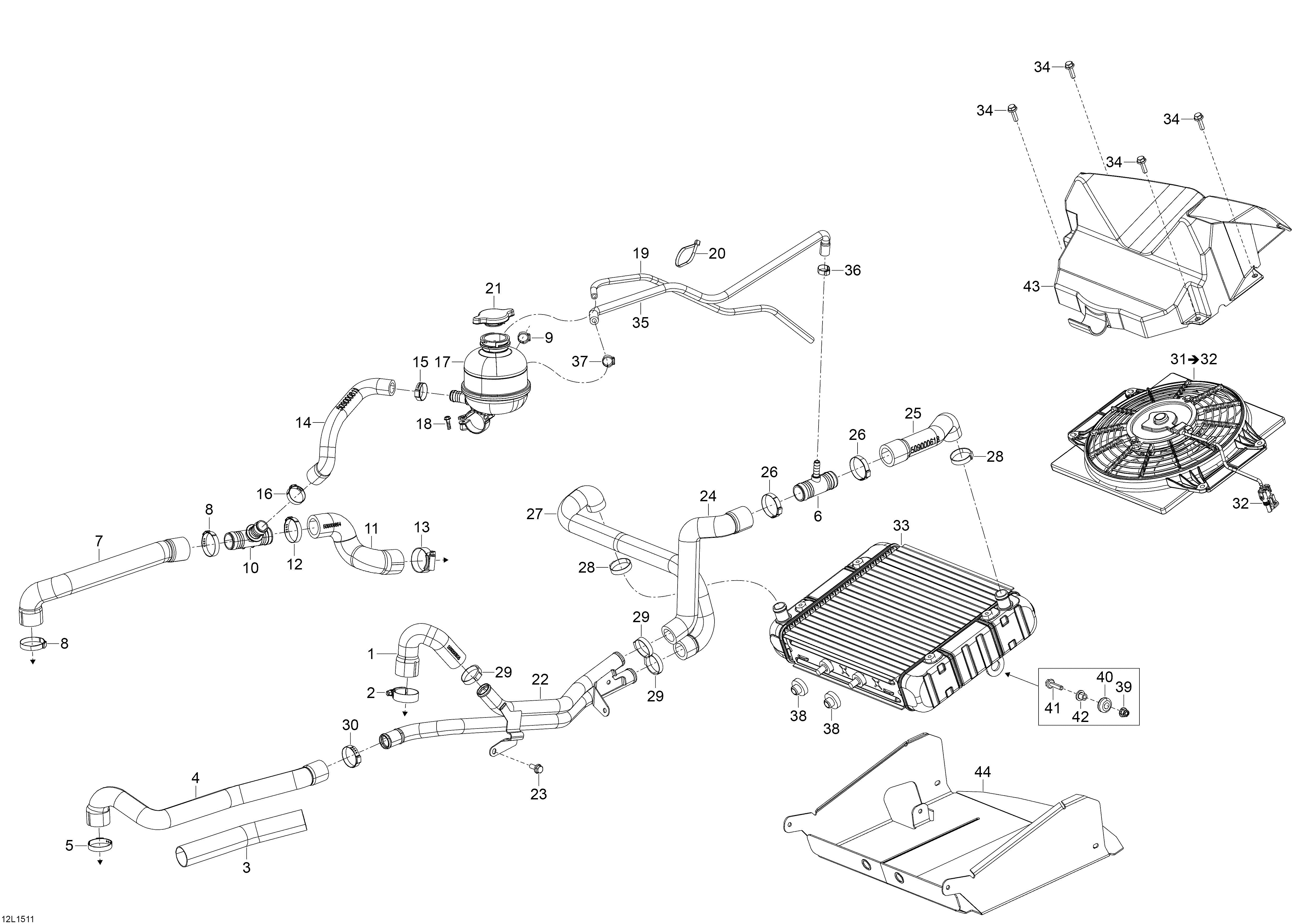

01- Cooling System для BRP Lynx Adventure GT 900 ACE - 2015
-
№АртикулНазвание
-
1509000858 Engine Outlet HoseEngine Outlet Hose
-
2509000443 Gear ClampGear Clamp
-
3509000513 Protector TubeProtector Tube
-
4509000634 HoseHose
-
5509000529 Crimp ClampCrimp Clamp
-
6509000510 T-FittingT-Fitting
-
7509000697 Radiator HoseRadiator Hose
-
8509000529 Crimp ClampCrimp Clamp
-
9293650025 Crimp ClampCrimp Clamp
-
10509000372 T-FittingT-Fitting
-
11509000864 Radiator HoseRadiator Hose
-
12509000529 Crimp ClampCrimp Clamp
-
13509000443 Gear ClampGear Clamp
-
14509000811 HoseHose
-
15509000442 Crimp ClampCrimp Clamp
-
16293650099 Crimp ClampCrimp Clamp
-
17509000875 Coolant TankCoolant Tank
-
18241151640 Hex. Flanged Screw K50 x 16Hex. Flanged Screw K50 x 16
-
19509000775 HoseHose
-
20414115200 Tie RapTie Rap
-
21509000180 Pressure CapPressure Cap
-
22509000800 Water PipeWater Pipe
-
23207561634 Hex. Flanged Screw M6 x 16Hex. Flanged Screw M6 x 16
-
24509000617 HoseHose
-
25509000618 Radiator HoseRadiator Hose
-
26509000529 Crimp ClampCrimp Clamp
-
27509000560 Radiator HoseRadiator Hose
-
28293650165 Crimp ClampCrimp Clamp
-
29293650141 Crimp ClampCrimp Clamp
-
30509000735 Crimp ClampCrimp Clamp
-
31509000692 Fan Ass'y. Includes 31 To 32Fan Ass'y. Includes 31 To 32
-
32278000220 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
32409007300 Female TerminalFemale Terminal
-
33509000691 RadiatorRadiator
-
34207562034 Hex. Flanged Screw M6 x 20Hex. Flanged Screw M6 x 20
-
35509000860 Breather HoseBreather Hose
-
36293650047 Crimp ClampCrimp Clamp
-
37293650025 Crimp ClampCrimp Clamp
-
38709200285 GrommetGrommet
-
39233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
40293720053 GrommetGrommet
-
41207662544 Hex. Flanged Screw M6 x 25Hex. Flanged Screw M6 x 25
-
42293900100 BushingBushing
-
43509000866 Outlet Duct Ass'yOutlet Duct Ass'y
-
44509000865 Radiator SupportRadiator Support
