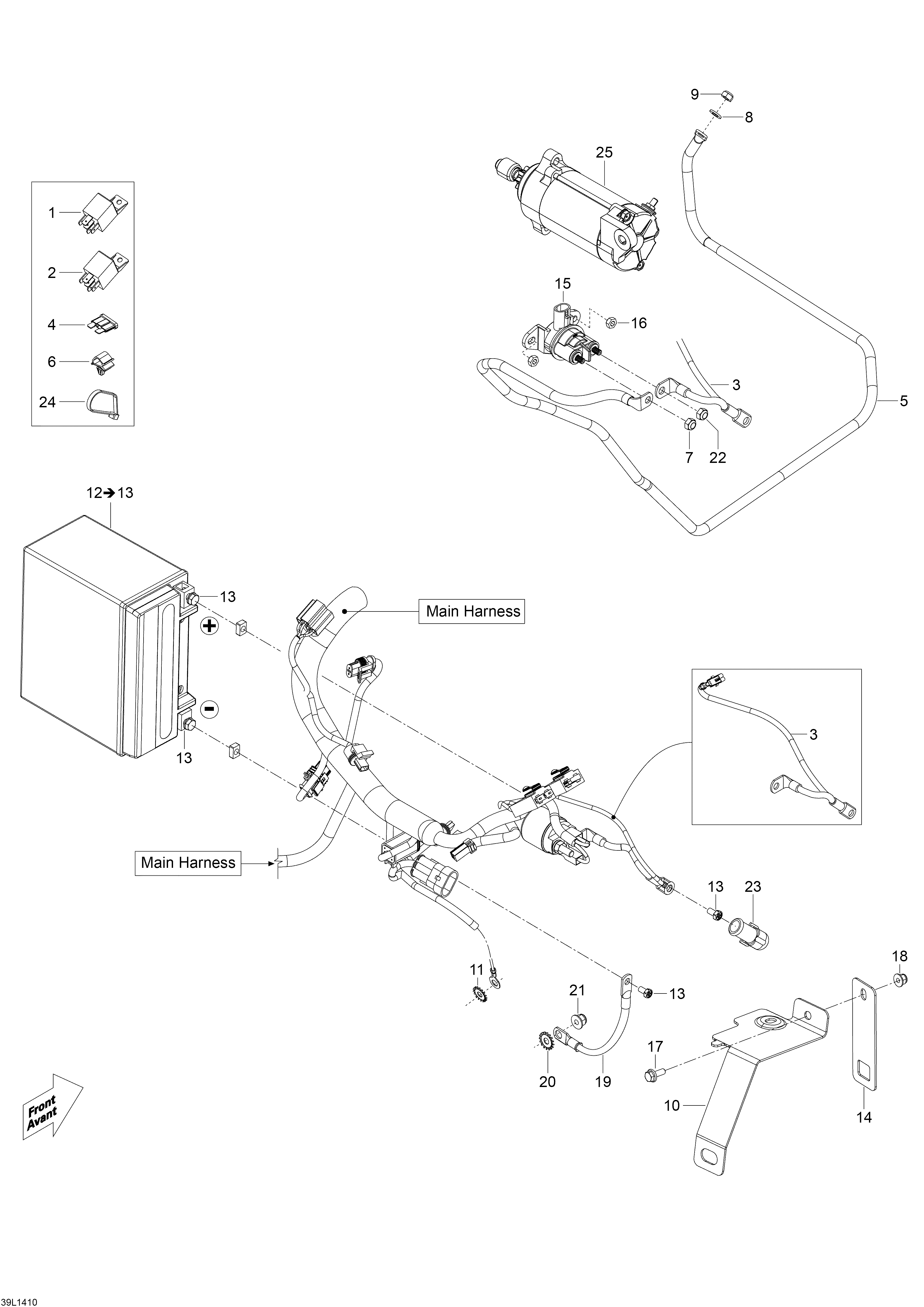

10- Battery And Starter для BRP Lynx 49 Ranger 600 E-TEC - 2014
-
№АртикулНазвание
-
1515177041 RelayRelay
-
2515177041 RelayRelay
-
3515177637 Fuse Battery WireFuse Battery Wire
-
4410917200 Fuse, 30AFuse, 30A
-
5515177067 Battery WireBattery Wire
-
6515177066 ClipClip
-
7232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
8234061410 Flat WasherFlat Washer
-
9232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
10515177648 Battery StrapBattery Strap
-
11250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
12410301203 Battery, 18 Amp. Includes 12 To 13Battery, 18 Amp. Includes 12 To 13
-
13295500849 Battery Fastener KitBattery Fastener Kit
-
14515177358 Battery StrapBattery Strap
-
15278003012 Starter RelayStarter Relay
-
16233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
17207661644 Hex. Flanged Screw M6 x 16Hex. Flanged Screw M6 x 16
-
18233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
19515176943 Ground WireGround Wire
-
20250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
21233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
22232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
23710000495 Protector CapProtector Cap
-
24414115200 Tie Rap 180mmTie Rap 180mm
-
24293750008 Tie Rap 350mmTie Rap 350mm
-
24293750001 Tie Rap 94mmTie Rap 94mm
-
24605627000 Tie RapTie Rap
-
25515177389 Electric StarterElectric Starter
