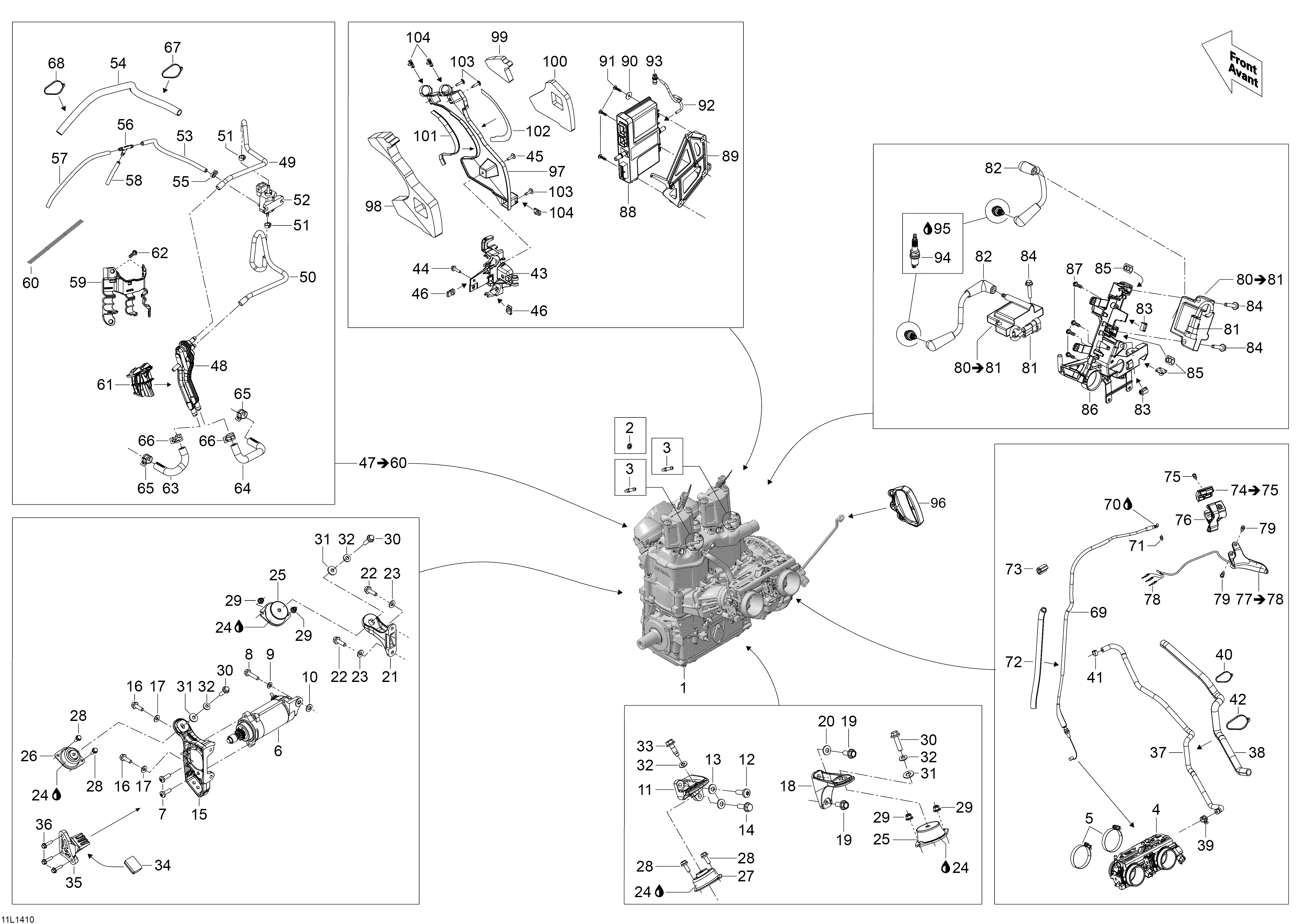

01- Engine And Engine Support для BRP Lynx 49 Ranger 600 E-TEC - 2014
-
№АртикулНазвание
-
2732610072 Push NutPush Nut
-
3420924724 Hose NippleHose Nipple
-
4420889197 Throttle BodyThrottle Body
-
5293650158 ClampClamp
-
6515177389 Electric Starter. (Electrical Start)Electric Starter. (Electrical Start)
-
7250000248 Pan HD. Torx Screw M8 x 25, Scotch Grip. (Electrical Start)Pan HD. Torx Screw M8 x 25, Scotch Grip. (Electrical Start)
-
8207583544 Hex. Flange Screw M8 x 35, Scotch Grip. (Electrical Start)Hex. Flange Screw M8 x 35, Scotch Grip. (Electrical Start)
-
9250200008 Flat Washer M8. (Electrical Start)Flat Washer M8. (Electrical Start)
-
10515176500 Washer. (Electrical Start)Washer. (Electrical Start)
-
11512060478 Rear Support, PTO SideRear Support, PTO Side
-
12250000248 Pan HD. Torx Screw M8 x 25, Scotch GripPan HD. Torx Screw M8 x 25, Scotch Grip
-
13234281474 Conical Spring Washer M8Conical Spring Washer M8
-
14207582586 Hex. Flanged Screw M8 x 25, Scotch GripHex. Flanged Screw M8 x 25, Scotch Grip
-
15512060712 Front Support, PTO SideFront Support, PTO Side
-
16207582586 Hex. Flange Screw M8 x 25, Scotch GripHex. Flange Screw M8 x 25, Scotch Grip
-
17234281474 Conical Spring Washer M8Conical Spring Washer M8
-
18512060559 Rear Support, MAG SideRear Support, MAG Side
-
19207582044 Hex. Flange Screw M8 x 20, Scotch GripHex. Flange Screw M8 x 20, Scotch Grip
-
20234281474 Conical Spring Washer M8Conical Spring Washer M8
-
21512060469 Front Support, MAG SideFront Support, MAG Side
-
22207582586 Hex. Flange Screw M8 x 25, Scotch GripHex. Flange Screw M8 x 25, Scotch Grip
-
23234281474 Conical Spring Washer M8Conical Spring Washer M8
-
25512060729 Rubber MountRubber Mount
-
26512060387 Rubber MountRubber Mount
-
27512060448 Rubber MountRubber Mount
-
28207561644 Hex. Flange Screw M6 x 16, Scotch GripHex. Flange Screw M6 x 16, Scotch Grip
-
29233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
30207683044 Hex. Flange Screw M8 x 30Hex. Flange Screw M8 x 30
-
31503183200 Washer, YellowWasher, Yellow
-
32234281474 Conical Spring Washer M8Conical Spring Washer M8
-
33250000570 Hex. Screw M8Hex. Screw M8
-
34512060627 StopperStopper
-
35512060576 Stopper SupportStopper Support
-
36207562544 Hex. Flanged Screw M6 x 25, Scotch GripHex. Flanged Screw M6 x 25, Scotch Grip
-
37512060740 Formed HoseFormed Hose
-
38415080000 TubingTubing
-
39293650172 ClampClamp
-
40414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
41293650046 Oetiker ClampOetiker Clamp
-
42293750008 Tie-Rap 368 mmTie-Rap 368 mm
-
43512060298 Solenoid SupportSolenoid Support
-
44207652044 Hex. Flange Screw M5 x 20Hex. Flange Screw M5 x 20
-
45250000528 Torx Truss M5 x 20Torx Truss M5 x 20
-
46250000079 Panel Nut M5Panel Nut M5
-
48512060692 ManifoldManifold
-
49415080200 HoseHose
-
50415080200 HoseHose
-
51293650234 ClampClamp
-
52512060774 Solenoid ValveSolenoid Valve
-
53270000374 HoseHose
-
54409901700 TubingTubing
-
55293750001 Tie Rap 94 mmTie Rap 94 mm
-
56293710068 T-FittingT-Fitting
-
57270000374 HoseHose
-
58270000374 HoseHose
-
59512060827 Clip Ass?yClip Ass?y
-
60512060934 SpringSpring
-
61512060769 SupportSupport
-
62210251180 Forming Screw M5 x 11Forming Screw M5 x 11
-
63512060695 HoseHose
-
64512060694 HoseHose
-
65293650214 Spring ClampSpring Clamp
-
66293650047 Crimp ClampCrimp Clamp
-
67293750001 Tie Rap 94 mmTie Rap 94 mm
-
68293750001 Tie Rap 94 mmTie Rap 94 mm
-
69512060633 Throttle CableThrottle Cable
-
70619600021 Loctite 8104 (Dielectric Grease), 75mlLoctite 8104 (Dielectric Grease), 75ml
-
71414274500 CirclipCirclip
-
72409901700 Tubing 9 mmTubing 9 mm
-
73512060313 ProtectorProtector
-
74512060859 Upper Housing. Includes 74 To 75Upper Housing. Includes 74 To 75
-
75414440800 Set Screw M8 x 10Set Screw M8 x 10
-
76512060860 Lower HousingLower Housing
-
77512060616 Throttle Handle Ass'y. Includes 77 To 78Throttle Handle Ass'y. Includes 77 To 78
-
78515175232 Male TerminalMale Terminal
-
79732601143 Shoulder ScrewShoulder Screw
-
80512060877 Ignition Coil. Includes 80 To 81Ignition Coil. Includes 80 To 81
-
81710000568 HousingHousing
-
82512060094 Ignition Cable, 177 mmIgnition Cable, 177 mm
-
83710000992 ClipClip
-
84250000253 Hex. Flange Screw M6 x 30Hex. Flange Screw M6 x 30
-
85293100003 NutNut
-
86512060888 Support CoilsSupport Coils
-
87241151640 Hex. Flange Screw K50 x 16Hex. Flange Screw K50 x 16
-
88512060912 Calibrated Module ETECCalibrated Module ETEC
-
89512060858 Calibrated Module SupportCalibrated Module Support
-
90250200040 Flat WasherFlat Washer
-
91250000297 Truss Head Torx Screw K50 x 20Truss Head Torx Screw K50 x 20
-
92415080100 LineLine
-
93414814100 Male ConnectorMale Connector
-
94415129432 Spark Plug (PZFR6F)Spark Plug (PZFR6F)
-
95619600021 Loctite 8104 (Dielectric Grease), 75mlLoctite 8104 (Dielectric Grease), 75ml
-
96512060136 Starter Grip. (Manual Start)Starter Grip. (Manual Start)
-
97512060339 Noise ShieldNoise Shield
-
98512060343 Interior Noise FoamInterior Noise Foam
-
99512060344 Upper Exterior Noise FoamUpper Exterior Noise Foam
-
100512060362 Lower Exterior Noise FoamLower Exterior Noise Foam
-
101512060574 Heat ShieldHeat Shield
-
102512060575 Heat ShieldHeat Shield
-
103250000528 Torx Truss M5 x 20Torx Truss M5 x 20
-
104250000079 Panel Nut M5Panel Nut M5
