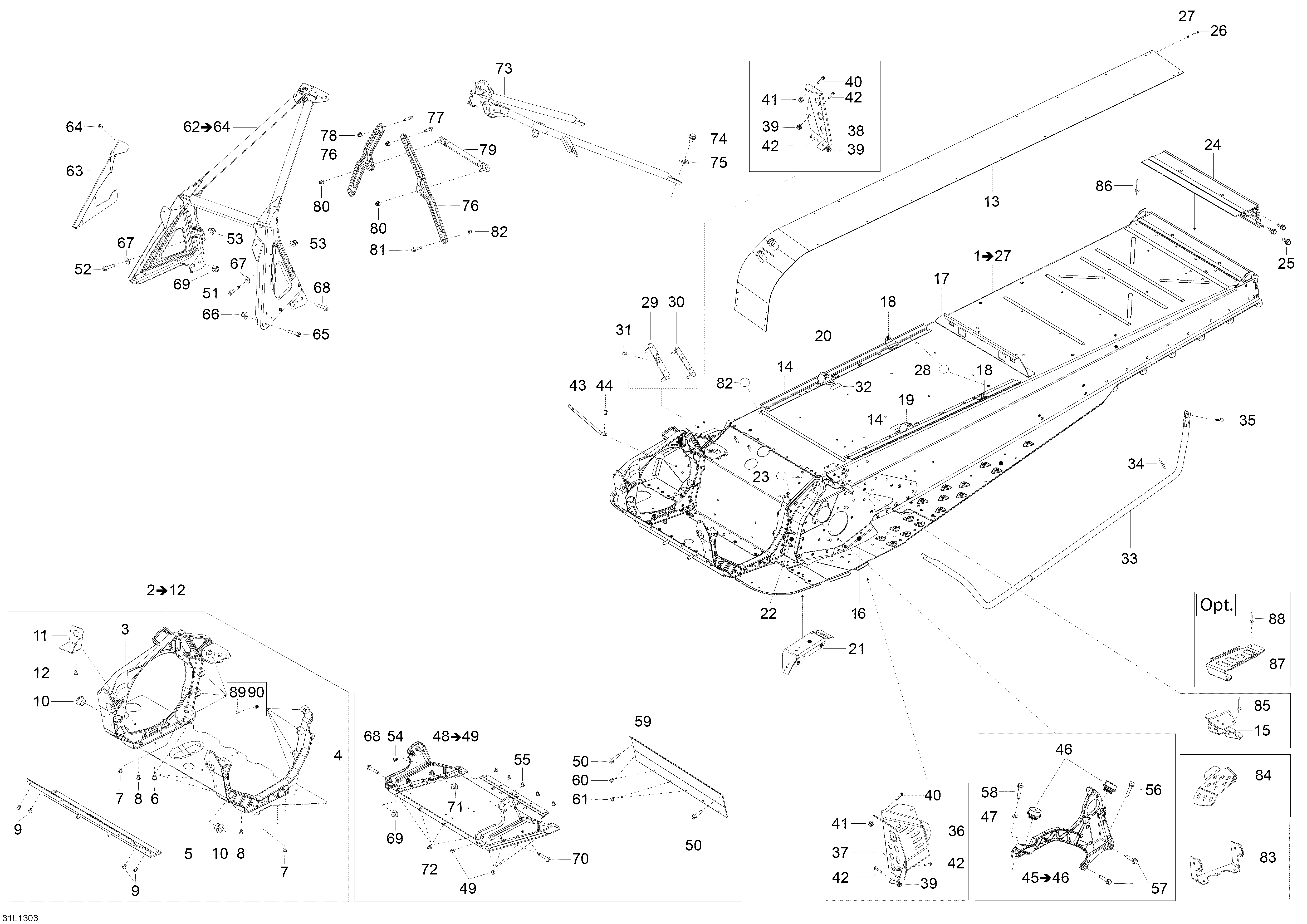

09- Frame для BRP Lynx 69 YETI 600 ACE - 2013
-
№АртикулНазвание
-
1518327437 Frame. Includes 1 To 27Frame. Includes 1 To 27
-
2518326518 Module E. Includes 2 To 12Module E. Includes 2 To 12
-
3518326328 RH MemberRH Member
-
4518326330 LH MemberLH Member
-
5518326198 Front MemberFront Member
-
6605636002 Clinch Nut Hexsert M8Clinch Nut Hexsert M8
-
7390909100 RivetRivet
-
8293150120 RivetRivet
-
9293150119 RivetRivet
-
10505072690 CushionCushion
-
11518327185 Muffler SupportMuffler Support
-
12293150163 RivetRivet
-
13509000645 Tunnel RadiatorTunnel Radiator
-
14518326107 Fastening RailFastening Rail
-
18518327457 Seat Box BracketSeat Box Bracket
-
19518326109 Support Tube Bracket LHSupport Tube Bracket LH
-
20518326110 Support Tube Bracket RHSupport Tube Bracket RH
-
21518326430 Clinch Nut PlateClinch Nut Plate
-
23518325560 Adhesive PatchAdhesive Patch
-
24518325645 Rear ProfileRear Profile
-
25207582586 Screw Hex. Flange M8 x 25Screw Hex. Flange M8 x 25
-
26205061244 Socket Head Screw M6 x 12Socket Head Screw M6 x 12
-
28518325560 Adhesive PatchAdhesive Patch
-
29518326123 Gearbox Counter Plate FrontGearbox Counter Plate Front
-
30518326124 Gearbox Counter Plate RearGearbox Counter Plate Rear
-
31390402200 Pop Rivet 3/16Pop Rivet 3/16
-
32518326357 Rubber CoverRubber Cover
-
33518325641 Footboard Support Tube LHFootboard Support Tube LH
-
33518325642 Footboard Support Tube RHFootboard Support Tube RH
-
34390909100 RivetRivet
-
35207662086 Screw Hex. Flange M6 x 20Screw Hex. Flange M6 x 20
-
36518327445 Toe Hook LHToe Hook LH
-
37605636003 Clinch Nut Hexsert M6Clinch Nut Hexsert M6
-
38518327447 Toe Hook RHToe Hook RH
-
39605636003 Clinch Nut Hexsert M6Clinch Nut Hexsert M6
-
40207662086 Screw Hex. Flange M6 x 20Screw Hex. Flange M6 x 20
-
41233261414 Nut Elastic Flange M6Nut Elastic Flange M6
-
42250000129 Torx Truss Screw M6 x 16Torx Truss Screw M6 x 16
-
43514054846 Spring BracketSpring Bracket
-
44390909200 RivetRivet
-
45518327534 Brace Ass'y LH. Includes 45 To 46Brace Ass'y LH. Includes 45 To 46
-
46512060295 Rubber MountRubber Mount
-
47234281474 Washer-Spring ConicalWasher-Spring Conical
-
48518326213 Module S Cross member. Includes 48 To 49Module S Cross member. Includes 48 To 49
-
49390909200 RivetRivet
-
50210262080 Forming Screw M6 x 20Forming Screw M6 x 20
-
51207662544 Screw Hex. Flange M6 x 25Screw Hex. Flange M6 x 25
-
52207662544 Screw Hex. Flange M6 x 25Screw Hex. Flange M6 x 25
-
53233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
54390909100 RivetRivet
-
55390909200 RivetRivet
-
56207582586 Screw Hex. Flange M8 x 25Screw Hex. Flange M8 x 25
-
57207583586 Screw Hex. Flange M8 x 35Screw Hex. Flange M8 x 35
-
58207584044 Screw Hex. Flange M8 x 40Screw Hex. Flange M8 x 40
-
59518326140 Engine SupportEngine Support
-
60390909100 RivetRivet
-
61293150119 RivetRivet
-
62518326754 Front Member Ass'y. Includes 62 To 64Front Member Ass'y. Includes 62 To 64
-
63502007077 Bumper Fastener LHBumper Fastener LH
-
63502007078 Bumper Fastener RHBumper Fastener RH
-
64390909200 RivetRivet
-
65207662044 Screw Hex. Flange M6 x 20Screw Hex. Flange M6 x 20
-
66233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
67224061201 Flat WasherFlat Washer
-
68207662044 Screw Hex. Flange M6 x 20Screw Hex. Flange M6 x 20
-
69233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
70207662044 Screw Hex. Flange M6 x 20Screw Hex. Flange M6 x 20
-
71233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
72390909200 RivetRivet
-
73518326103 Upper Support TubeUpper Support Tube
-
74207662086 Screw Hex. Flange M6 x 20Screw Hex. Flange M6 x 20
-
76518326848 Upper ColumnUpper Column
-
77207662086 Screw Hex. Flange M6 x 20Screw Hex. Flange M6 x 20
-
78233261414 Nut Elastic Flange M6Nut Elastic Flange M6
-
79518326355 Upper ColumnUpper Column
-
80233261414 Nut Elastic Flange M6Nut Elastic Flange M6
-
81250000522 Screw Hex. Flange M6 x 25Screw Hex. Flange M6 x 25
-
82233261414 Nut Elastic Flange M6Nut Elastic Flange M6
-
83515177073 Fusebox SupportFusebox Support
-
84518327035 Brake Hose CoverBrake Hose Cover
-
85390909200 RivetRivet
-
86293150174 RivetRivet
-
87520000492 Footrest (Opt.)Footrest (Opt.)
-
88390909100 RivetRivet
-
89207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
90233261414 Elastic Flange Nut M6Elastic Flange Nut M6
