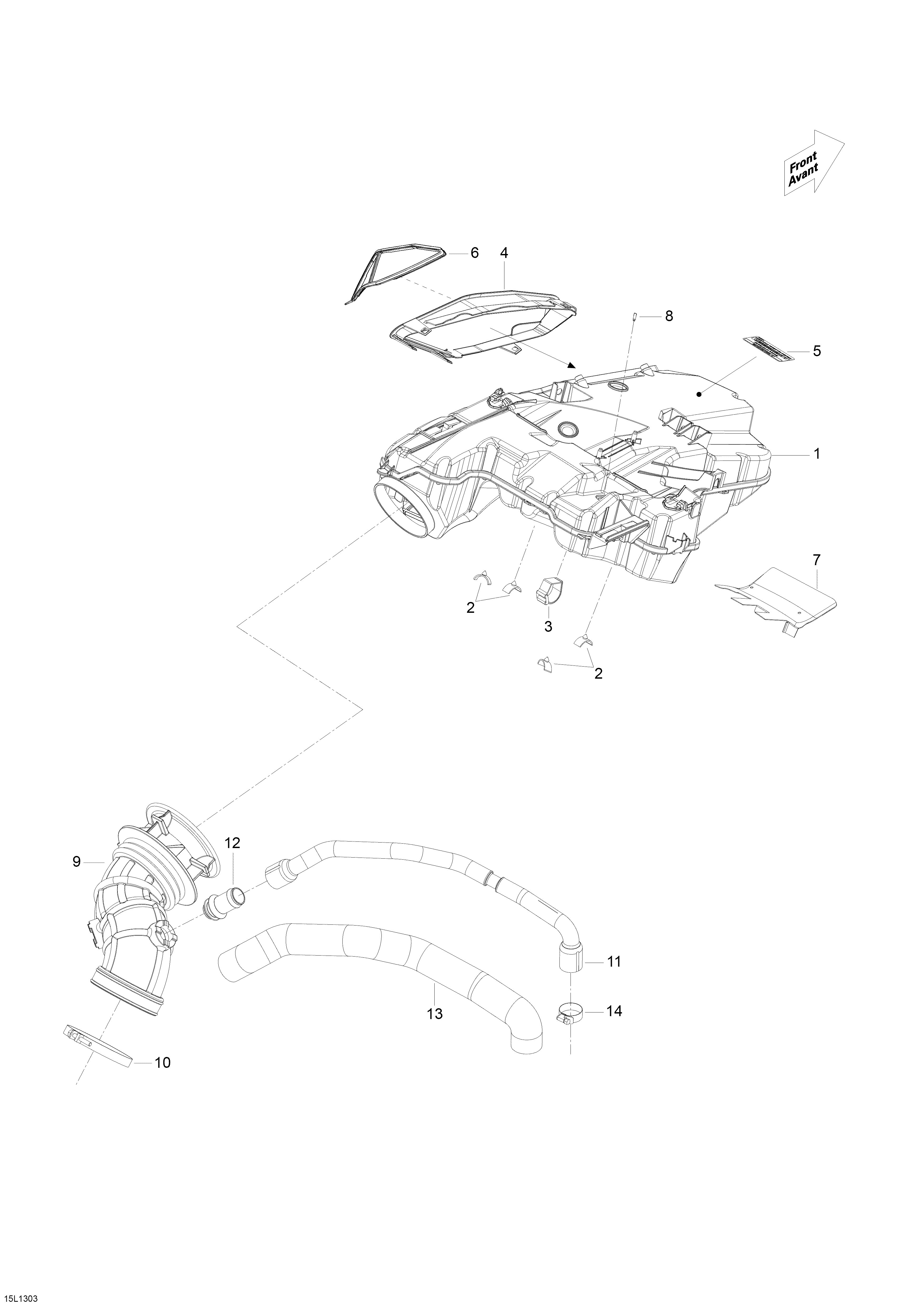

02- Air Intake System для BRP Lynx 69 YETI 600 ACE - 2013
-
№АртикулНазвание
-
1508000690 Secondary Chamber Ass'ySecondary Chamber Ass'y
-
2508000537 StopperStopper
-
3508000532 Strip VelcroStrip Velcro
-
4508000756 AdapterAdapter
-
5516004651 Warning Decal, Hot PartsWarning Decal, Hot Parts
-
6508000609 Air FilterAir Filter
-
7508000627 Heat ShieldHeat Shield
-
8572092900 CapCap
-
9508000719 Intake HoseIntake Hose
-
10293650212 ClampClamp
-
11508000647 Vent HoseVent Hose
-
12273000234 BreatherBreather
-
13508000648 Insulating TubeInsulating Tube
-
14293650172 ClampClamp
