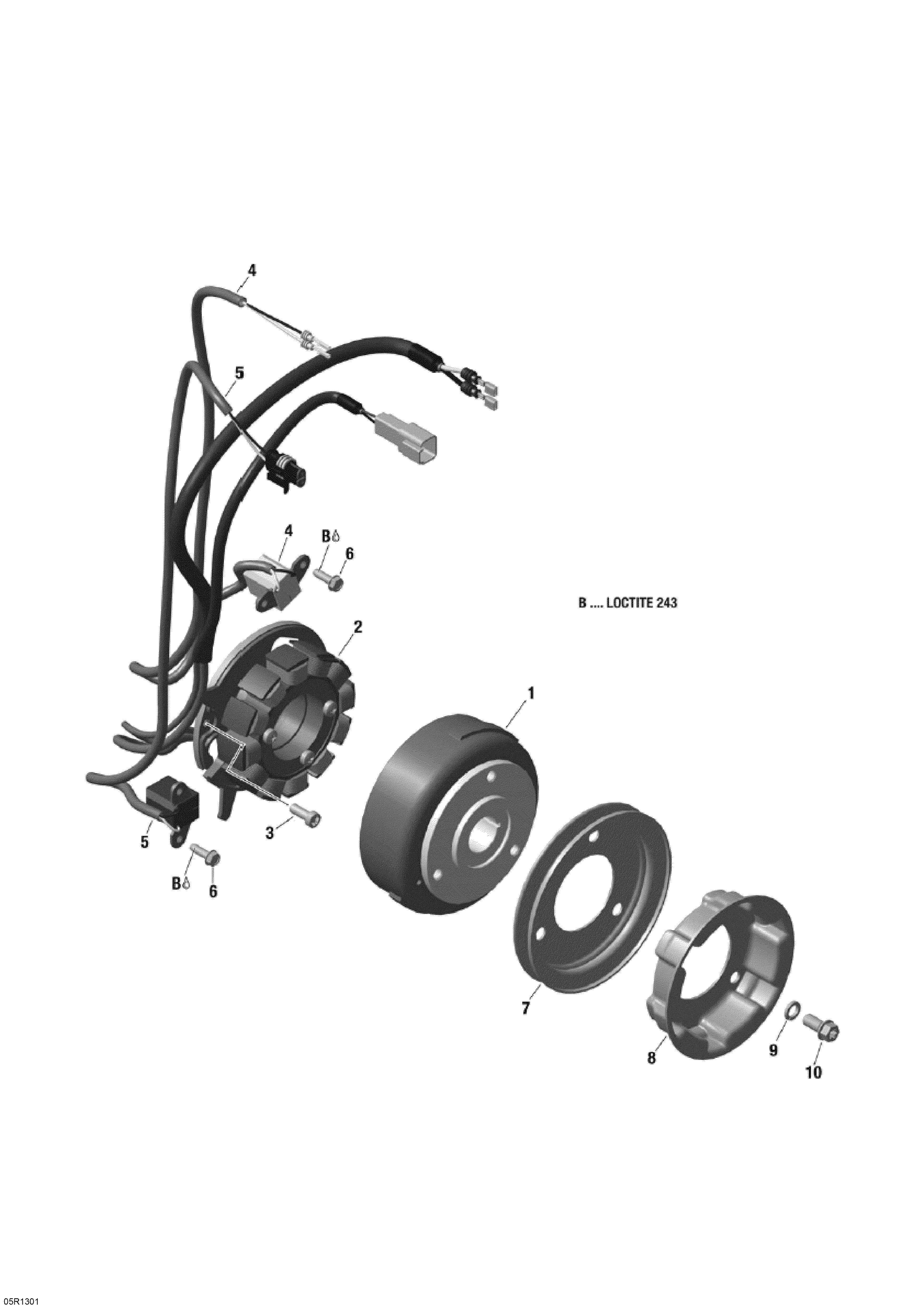

03- Magneto для BRP Lynx 59 YETI 550 - 2013

  • №
    Артикул
    Название
  • 1
    420889376 Magneto Flywheel
    Magneto Flywheel
  • 2
    420889367 Stator Ass'y, 12V 340W
    Stator Ass'y, 12V 340W
  • 3
    420641521 Torx Screw M5 x 16. Tightening Torque 6-7 Nm
    Torx Screw M5 x 16. Tightening Torque 6-7 Nm
  • 4
    420665163 Pick Up Ass'y / Reverse Rotation
    Pick Up Ass'y / Reverse Rotation
  • 5
    420665161 Pick Up Ass'y / Forward Rotation
    Pick Up Ass'y / Forward Rotation
  • 6
    420941925 Taptite Screw M5 x 16. Tightening Torque 5-6 Nm
    Taptite Screw M5 x 16. Tightening Torque 5-6 Nm
  • 7
    420980486 V-Belt Pulley
    V-Belt Pulley
  • 8
    420852414 Starting Pulley
    Starting Pulley
  • 9
    420845311 Lock Washer
    Lock Washer
  • 10
    420440852 Torx Flange Screw M8 x 16. Tightening Torque 21-22 Nm
    Torx Flange Screw M8 x 16. Tightening Torque 21-22 Nm
  • B
    293800060 Loctite 243, 10ml
    Loctite 243, 10ml
