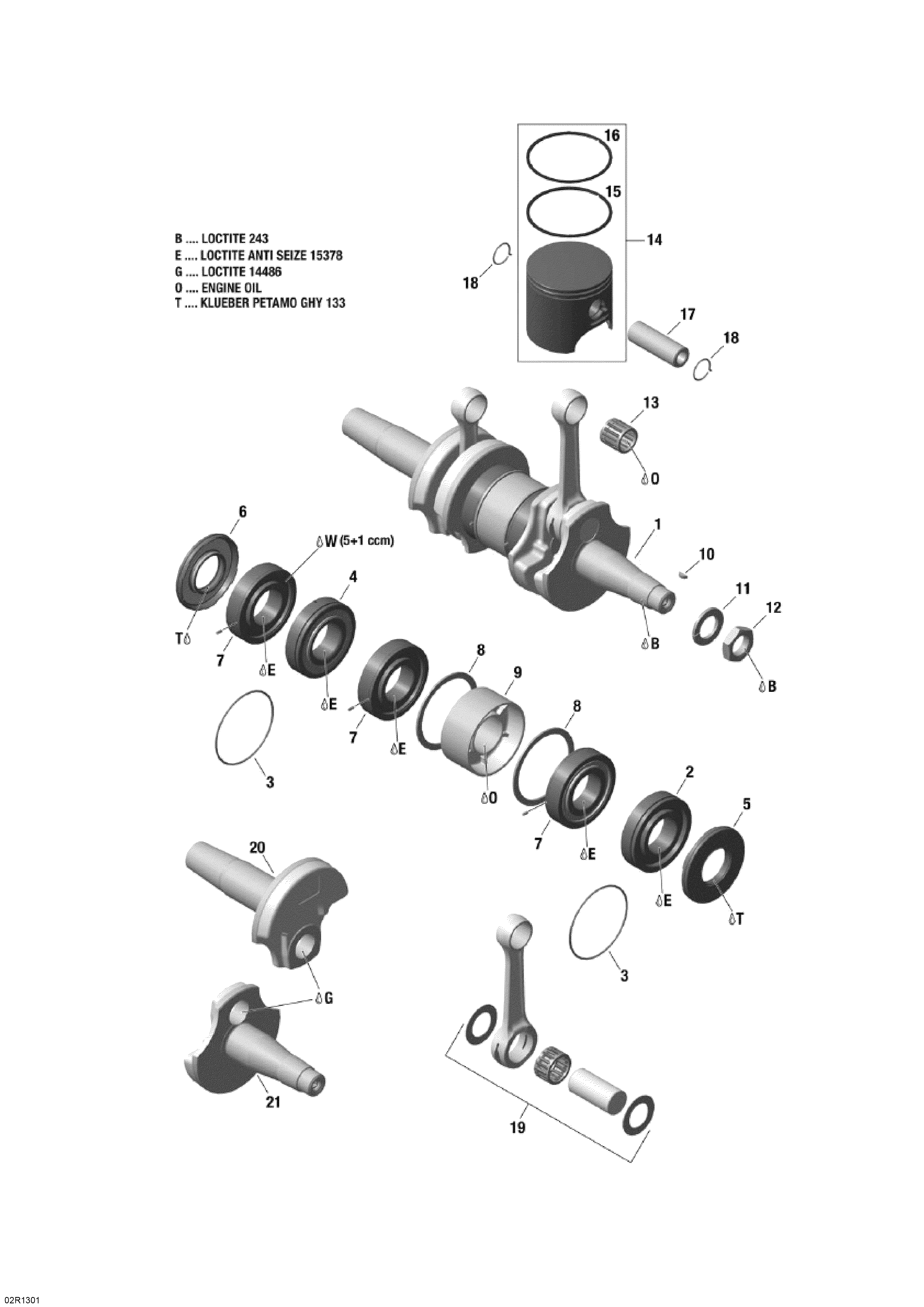

01- Crankshaft для BRP Lynx 59 YETI 550 - 2013

  • №
    Артикул
    Название
  • 1
    420686042 Crankshaft Ass'y. Includes 1 To 8
    Crankshaft Ass'y. Includes 1 To 8
  • 2
    420832571 Ball Bearing
    Ball Bearing
  • 3
    293300022 O-Ring (64-2)
    O-Ring (64-2)
  • 4
    420832632 Ball Bearing
    Ball Bearing
  • 5
    420831952 Oil Seal
    Oil Seal
  • 6
    420831955 Oil Seal
    Oil Seal
  • 7
    420832573 Ball Bearing
    Ball Bearing
  • 8
    420927710 Retaining Disk
    Retaining Disk
  • 9
    420850149 Labyrinth Sleeve
    Labyrinth Sleeve
  • 10
    420246055 Woodruff Key
    Woodruff Key
  • 11
    420945759 Lock Washer
    Lock Washer
  • 12
    420842239 Nut M22. Tightening Torque 100-110 Nm
    Nut M22. Tightening Torque 100-110 Nm
  • 13
    420832445 Piston Pin Bearing
    Piston Pin Bearing
  • 14
    420889050 Piston Ass'y 75.86mm. Includes 14 To 16
    Piston Ass'y 75.86mm. Includes 14 To 16
  • 14
    420889051 Piston Ass'y 76.11mm. Includes 14 To 16
    Piston Ass'y 76.11mm. Includes 14 To 16
  • 14
    420889052 Piston Ass'y 76.36mm. Includes 14 To 16
    Piston Ass'y 76.36mm. Includes 14 To 16
  • 15
    420815300 Rectangular Ring 76.00mm
    Rectangular Ring 76.00mm
  • 15
    420815301 Rectangular Ring 76.25mm
    Rectangular Ring 76.25mm
  • 15
    420815302 Rectangular Ring 76.50mm
    Rectangular Ring 76.50mm
  • 16
    420815155 Semi-Trapez Ring 76.00mm
    Semi-Trapez Ring 76.00mm
  • 16
    420815156 Semi-Trapez Ring 76.25mm
    Semi-Trapez Ring 76.25mm
  • 16
    420815157 Semi-Trapez Ring 76.50mm
    Semi-Trapez Ring 76.50mm
  • 17
    420916407 Piston Pin
    Piston Pin
  • 18
    420845106 Circlip. Included In Gasket Kit
    Circlip. Included In Gasket Kit
  • 19
    420889068 Crankshaft Repair Kit
    Crankshaft Repair Kit
  • 20
    420819181 Crankshaft, PTO Side
    Crankshaft, PTO Side
  • 21
    420819210 Crankshaft, MAG Side
    Crankshaft, MAG Side
  • B
    293800060 Loctite 243, 10ml
    Loctite 243, 10ml
  • E
    619600013 Loctite 8151 (Antiseize), 400ml Spray
    Loctite 8151 (Antiseize), 400ml Spray
  • G
    619600012 Loctite 648, 50ml
    Loctite 648, 50ml
  • T
    619600023 Grease, 400g
    Grease, 400g
  • W
    619600026 Isoflex Grease, 400g
    Isoflex Grease, 400g
